Description

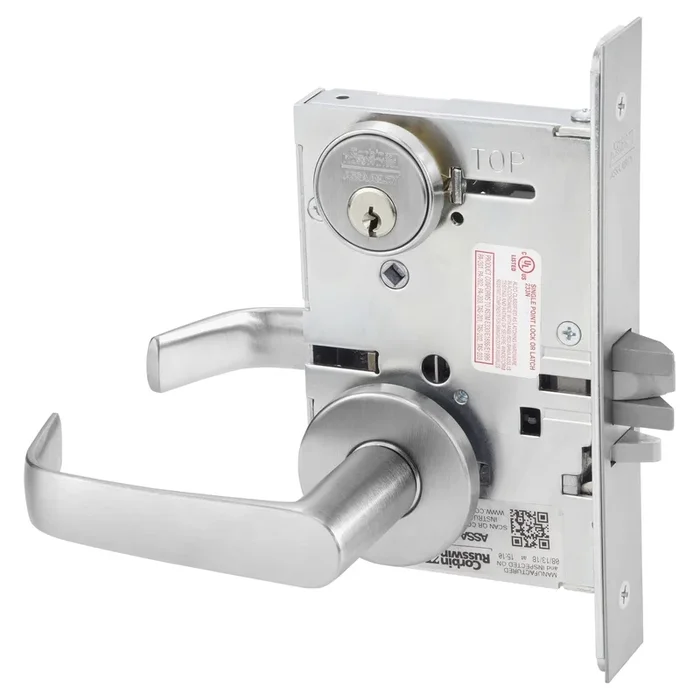

Corbin Russwin ML2069 NSB 626 Institutional Privacy Mortise Lock
Corbin Russwin ML2069 NSB 626 Institution Privacy Mortise Lock delivers exceptional security and convenience for high-traffic environments. Designed for commercial, institutional, industrial, and government applications, this Grade 1 mortise lock is built from heavy-gauge steel, ensuring durability and reliability in demanding settings. The ML2000 Series features a patented Quick Reversible latchbolt, allowing for effortless re-handing without disassembly. With a 1″ stainless steel deadbolt and a non-ferrous lockcase option for enhanced corrosion resistance, this lock is perfect for offices, schools, hospitals, and hotels. The privacy function (F26) provides an added layer of security while maintaining accessibility. Featuring a robust 8″ x 1-1/4″ heavy-gauge steel front, the ML2069 is compatible with standard door thicknesses of 1-3/4″ and offers a 2-3/4″ backset. The lock comes with two nickel silver keys and has a fire rating of 3 hours. Its elegant satin chrome finish complements a variety of door designs, while the 10-year limited warranty underscores its reliability. With its combination of strength, functionality, and aesthetic appeal, the Corbin Russwin ML2069 is an excellent choice for any high-use application.
Institution Privacy Mortise
Institutional Privacy Mortise Lock, NS Lever, B Rose, Satin Chrome
The ML2000 Series Grade 1 Mortise Lock is designed to meet the rigors of high trasffic commercial, institutional, industrial and government applications. Constructed of heavy gauge steel, the lockbody features our patented quick reversible latchbolt and a 1″ stainless steel deadbolt. A wide variety of trim designsand functions with a 10 year warranty lend to the ML2000’s versatility and reliability, making it the ideal choice for use in offices, schools, hospitals, hotels and other high use applications.
The ML2000 series is a Grade 1 mortise lock designed to meet the rigors of high-traffic commercial, institutional, industrial and government applications.
The ML2000 Series is constructed of heavy-duty gauge steel and features a lockbody with the patented Quick Reversible latchbolt.A wide variety of trim designs and functions and a 10-year warranty lend to the ML2000’s versatility and reliability, making it the ideal choice for use in offices, schools, hospitals, hotels and other high-use applications.
- Handing: Handed; quick reversible. The lockset can be re-handed without disassembling the lock case.
- Door Thickness: 1-3/4″ (44mm) standard. Optional door thicknesses available.
- Backset: 2-3/4″ (70mm).
- Lockcase: Heavy-gauge steel, 5-7/8″ (149mm) x 4″ (102mm) x 15/16″ (24mm). Optional: non-ferrous lockcase for corrosion resistance.
- Front: Heavy-gauge steel, 8″ (203mm) x 1-1/4″ (32mm) x -3/32″ (2mm). Accommodates flat doors and doors beveled 1/8″ (3mm) in 2″ (51mm). Furnished 1-1/16″ (27mm), optional D138, wide for 1-3/8″ (35mm) doors.
- ArmoredFront: Wrought brass, bronze or stainless steel attached by machine screws to lockcase front. ML2000HS & ML2000VR utilizes security Torx® screws.
- Latchbolt: 2-piece mechanical with anti-friction insert, 5/8″ (16mm) x 1″ (25mm) x 3/4″ (19mm) throw.
- Keys: Two nickel silver standard.
- Federal: Meets FF-H-106C.
- Environmental Product Declaration: (EPD) certified
Attributes
Accessible: Yes
Ada Compliance: Yes
Ansi Function: F26 – Institutional Privacy
Application: Complete Lock
Baa Qualified: Yes
Base Material: Brass or Bronze
Bolt Projection: 3/4″ Latchbolt
Country of origin: USA
Cylinder Type: Conventional Cylinder
Door Thickness: 1-3/4″
Finish: 626/US26D
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 69-Institutional Privacy
Grade: Grade 1
Handing: Field Reversible
Keying: 0 Bitted
Keys: Blank
Leverknob Design: NS – Newport
Limited Warranty: 10 Years
Lock Face Size: 8″ x 1-1/4″
Of Keys: 2
Origin: USA
Pack Qty: 1
Pins: 6
Roseescutcheon Design: B – Rose
Screws: Combination
Series: ML2000 Series Mortise Locks
Std Keyway: L4
Std Strike Height: 4-7/8″
Std Strike Number: 236L72018
Std Strike Type: ASA
Std Strike Width: 1-1/4″
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
