Description

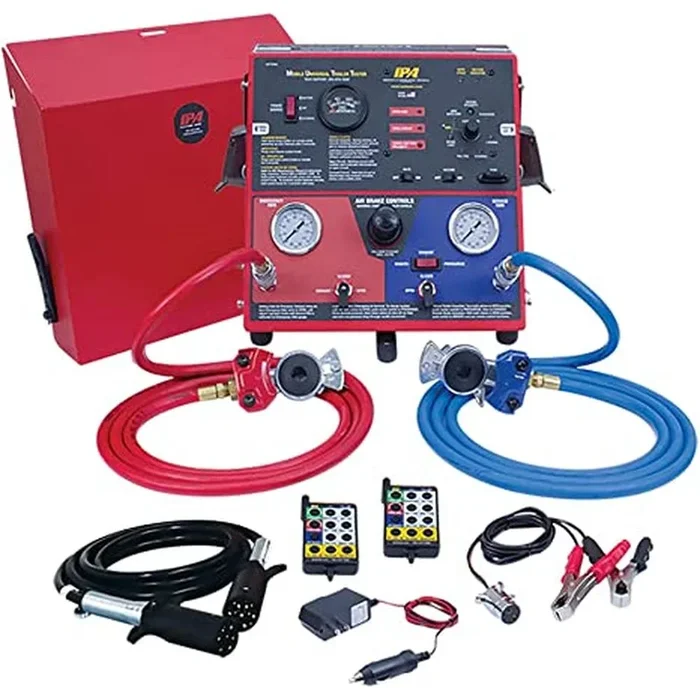

This intuitive and durable design is ideal for on- and off-site trailer testing and repairs on emergency vehicles.
Features
Electrical Testing (12/24 Volt Operation)
-
Power lights: Manually, all-on, auto scan, or by remote control
-
Audible and visual alerts: cross, open, overloaded and short circuit indication
-
Pulsar® mode allows diagnostic repair
-
Advanced trailer wiring diagnostics
-
Amperage readout and range (0-20 amps)
-
Cable testing
-
Ground failure detection: differentiates between the wire and chassis ground
Air Brake Testing
-
Performs a leak-down test on service and emergency lines
-
The remote control allows observation of slackers to measure and adjust pushrods
-
Real-time, repetitive brake activation to find developing problems and verify leaking servo cans
Remote Control
-
(2x) 12-button remote controls test all trailer electric circuitry and air brake actuation, 200 ft. range
-
Sync multiple (12) remotes to one unit
Specifications
Connection Type: 7-Way Round Pin
Power Input: 12/24V DC
Suggested Battery: Yuasa #YTX14 or Similar Recommended
Source Output: 20A @ 12V DC
Max Operating Pressure: 120 psi
Air Input: 1/4″ NPT (120 psi max.)
Controls: Manual, Remote, Automatic
Tires: 10″ Pneumatic
Material: Powder-Coated Steel
Weight: 26 lbs.
Dimensions: 12″ L x 9.5″ W x 11.5″ H
Warranty: 3-Year Limited Warranty
Country of Origin: USA
Includes:
– (2x) 12-Button Remote Control (#MUT-RM12)
– 5? 7-Way Cable (#7900K-1)
– External Battery Connector with Clips(#9005A-4AS)
– 8? Red Hose with Gladhands (#7900AP-8RD-AS)
– 8? Blue Hose with Gladhands (7900AP-8BL-AS)
– 500mA Battery Charger (#CHR0001)
– Face/Battery Shield (#9008-4R)
