Description

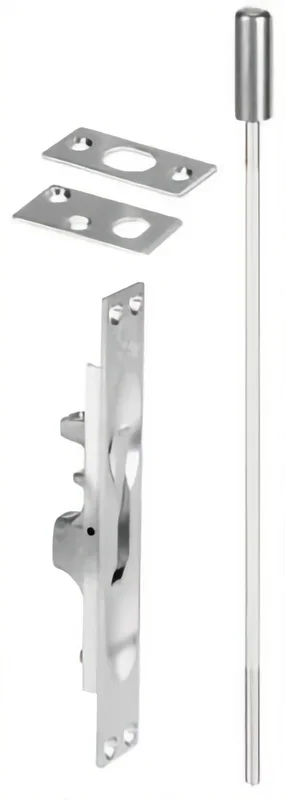

Ives FB458-12 US26D Flush Bolts
Single Manual Flushbolt, 12″ Rod, Metal Doors, Satin Chrome
Features
- Special design of guide and flat sided bolt tip to prevent bolt rotation
- Use of strike optional
- Simplified installation in metal frames
- Non-handed
- Round bolt head requires only a punched hole
- Bolt backset is 3⁄4″
- Bolt tip 1⁄2″ diameter
- When the inactive leaf is closed, the lever can be moved to the ‘down’ position, projecting the bolt into the strike and securely locking the inactive leaf
- Mounting hardware: 8-32 X 1″ FPHMS
- When the active door is opened, the lever can be moved to the ‘up’ position, retracting the bolt and allowing the inactive leaf to be opened
- Certifications: UL10C Listed (3 hour) fire doors 8’0″ X 10’0″ (fire rated openings require top and bottom bolt)
- Optional rod lengths available for top bolt only on non-fire rated openings—18″, 24″ for fire rated doors with AHJ approval, 36″ and 48″ for non-fire rated doors
- Standard rod length is 12″, which is measured from the center of the flush bolt body to the bolt tip
- Bolt throw is 3⁄4″ with a 7⁄8″ vertical adjustment
Attributes
Manufacturer surcharge: 7.0%
Alternate Codes: FB458-12 US26D, FB45812US26D
Base Material: Brass or Bronze
Category: Door Accessories, Flush & Slide Bolts
Commercial Residential: Commercial
Finish: 626/US26D
Finish : Satin Chrome
Finish Family: Matte Silver
Installation: Commercial
Pack Qty: 1
Series: Ives Architectural Hardware
Subtype: Flush Bolts
Type: DOOR ACCESSORIES
Unit of Measure: Each
