CRL 21101AP19 Jackson Adjustable 90 Concealed Closer with AP Hardware for 1″ Top Rail
CRL 21101AP19 Jackson Adjustable Spring Power 90 No Hold Open Overhead Concealed Closer is expertly designed for accessibility and versatility in commercial and residential applications. This overhead concealed door closer accommodates doors ranging from 30″ to 48″ wide, ensuring compliance with A.D.A. opening force requirements. With a robust adjustable spring power feature, it can be set between sizes 1 and 4, allowing for precise control and adaptability based on varying site conditions. Constructed with a durable aluminum body, this closer is suitable for a maximum door weight of 250 lbs and is equipped with a floor-mounted pivot for a 1-9/16″ deep bottom rail. The double-acting design ensures smooth operation while the 90-degree no hold-open feature prevents over-extension, protecting both the door and the closer. The unit is UL Listed, affirming its safety and reliability. To maintain optimal performance, an auxiliary floor or overhead door stop is recommended. Additionally, it comes with a 5-year limited warranty, assuring long-lasting durability. The CRL 21101AP19 is the ideal choice for those seeking a dependable, high-quality closing solution that meets the demands of modern architecture.

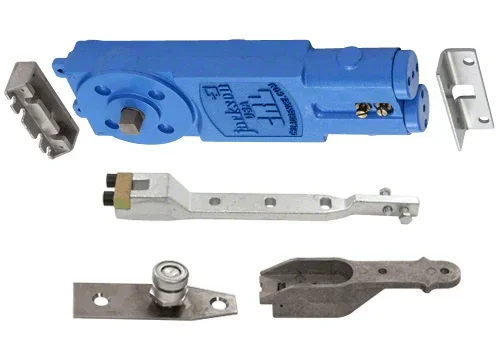

Jackson Adjustable Spring Power 90 No Hold Open Overhead Concealed Closer with “AP” Hardware Package for 1″ Top Rail
- Suitable for Doors from 30″ to 48″ (762 mm to 1.22 m) Wide to Meet A.D.A. Opening Force Requirements
- Floor Mounted Pivot for 1-9/16″ (40 mm) Deep Bottom Rail
- 5 Year Limited Warranty
- UL Listed
This
CRL Jackson® Adjustable Spring Power Overhead Concealed Door Closer is available for A.D.A Barrier-Free applications. The Door Closer is adjustable in a range of Sizes from 1 (Barrier-Free) through 4 (Regular), allowing the spring power to be set for A.D.A. handicap barrier-free opening force requirements, as well as provide door control for a wide range of door types and sizes. This should make it your #1 choice for versatility and adaptability in a range of conditions.
A.D.A. NOTE: Although the Adjustable Spring Power Door Closer can be adjusted to compensate for site conditions, adequate closing force might not be obtained while complying with A.D.A. opening force requirements.
NOTE: An auxiliary floor or overhead door stop is recommended to prevent possible damage to both the door closer and entry way due to over-extension of maximum allowable door swing.
Product Warning:
Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.
Attributes
Americans with Disabilities Act: Yes
Arm Type: End Load
Body Height: 1-11/16
Body Length: 11-5/8
Body Widt: 3-11/16
Body Width: 3-11/16
Bottom Door Rail Depth: 1-9/16
Bottom Pivot Type: Floor Mount Pivot
Brand: Jackson
Closer Type: Overhead Concealed
Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov
Handing: Double Acting
Includes: 20101M19, 20219, 202000, 201060
Material: Aluminum
Maximum Door Weight: 250
No Hold Open: 90°
Package Type: End Load AP
Recommended Door Type: Aluminum, Hollow Metal
Replacement Parts: ELB2, ELS1
Shipping Limitations: None
Similar: CRL8762A, 21101A19
Spindle: 1/2
Spring Size: Adjustable
Top Rail Depth: 1
Type: Center Hung
UL Listed: Yes
Resources
- How to Order Overhead Concealed Closers.pdf
- Jackson Door Control Products Limited Warranty and Liability Information
- OHC Installation Instructions 11M0193 OHC Door Closer.pdf
- Specifications 08 7100 spring power adjustable overhead door closer.docx
