Description

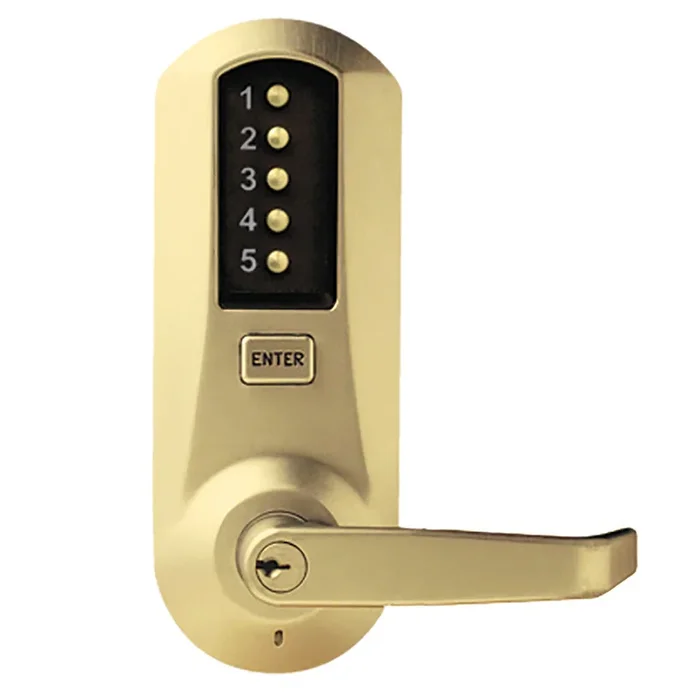

Dormakaba 5021XSWL-04-41 Pushbutton Mechanical Lock
Kaba Access Dormakaba 5021XSWL-04-41 Mechanical Pushbutton Lock offers a robust and efficient solution for access control in commercial settings. This cylindrical combination lever lock features a 2-3/4″ backset and a 1/2″ throw latch, designed for durability and convenience with its satin brass finish. Engineered for ease of use, this Simplex mechanical pushbutton lock eliminates the hassles of managing keys or cards, making it a cost-effective alternative. There’s no need for battery replacements or complex programming-simply change the access code in seconds without removing the lock from the door. The lock provides secure exterior access via a single access code, allowing for straightforward management. This model is non-handed and pre-assembled for left-hand door installations, but can easily be adapted in the field. With key override options, including key-in-lever cylinders and removable cores, it offers flexibility and security. Compliant with the Americans with Disabilities Act (ADA), it ensures accessibility for all users. As part of the trusted Simplex 5000 Series, the Dormakaba 5021XSWL-04-41 combines functionality with a Grade 1 rating, making it a reliable choice for high-traffic areas. Its commitment to security and efficiency makes it an ideal choice for any commercial property.
Mechanical Pushbutton Lock
Cylindrical Combination Lever Lock, 2-3/4″ Backset, 1/2″ Throw Latch, KIL, Schlage C Keyway, Satin Brass
Simplex mechanical pushbutton locks offer a convenient way to control access between public and private areas. There are no keys or cards to manage, no computers to program, no batteries to replace, and combinations can be changed in seconds without removing the lock from the door.
Provides exterior access by combination, while allowing free egress.
- Access Control:Mechanical pushbutton lock—eliminates problems and costs associated with issuing, controlling, and collecting keys and cards
- No Battery:Fully mechanical lock eliminates the material and labor expense of battery replacements
- Number of Codes:Single access code—one easy-to-manage code for all users
- Programming:Lock is easily programmed via keypad without removing the lock from the door
- Handing:Non-handed, pre-assembled for left-hand door installations—easily changed in the field
- Key Override:Key-in-lever cylinders, small format interchangeable cores, large format removable core
- Accessibility Standard:Americans with Disabilities Act (ADA)
Attributes
Manufacturer surcharge: 7.0%
Base Material: Brass
Commercial Residential: Commercial
Cylinder Type: Conventional Cylinder
Finish: 606/US4
Grade: Grade 1
Installation: Commercial
Lock Platform: Cylindrical Lock
Pack Height: 5″
Pack Length: 12″
Pack Qty: 1
Pack Width: 10.25″
Pins: 6
Series: Simplex 5000 Series
Series Name: Simplex
Ship Weight: 11 lbs.
Std Keyway: C
Subtype: Cylindrical Locks with Keypad Trim
Type: Integrated and Pushbutton
Unit of Measure: Each
Upc: 36448814114
Resources
- CSI Specifications for Simplex 5000 Series Mechanical Pushbutton Locks
- Kaba Simplex Mechanical Pushbutton Lock – 5000 Series Exit Installation Instructions
- Kaba Simplex Mechanical Pushbutton Lock – 5000 Series Installation Instructions
- Simplex 5000 – How to Change the Combination (Exterior Combination Change)
- Simplex 5000 – How to Reset an Unknown Combination
- Simplex 5000 – How to change the combination (interior Combination Change)
- Simplex 5000 Series Cut Sheet
- Simplex Product Catalog
- Technical Specifications for Simplex 5000 Series Mechanical Pushbutton Locks
