Description

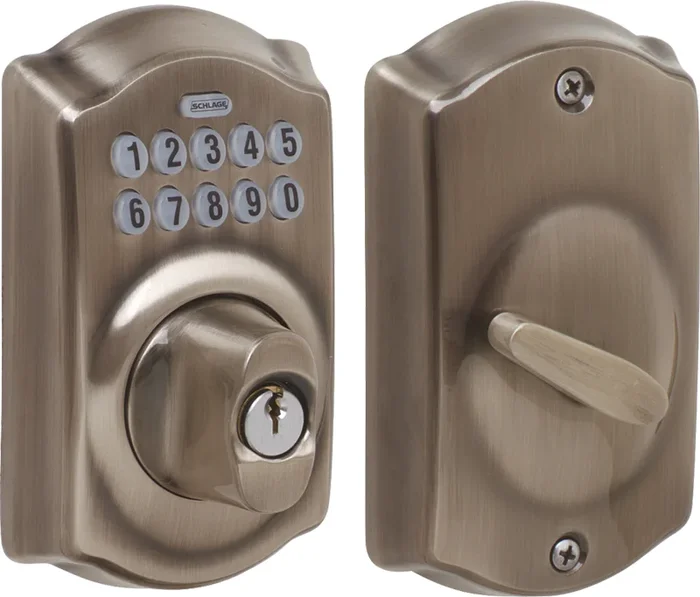

Schlage BE365-CAM-620 12-287 Camelot Keypad Deadbolt, Key Override, 5-Pin, Adjustable Backset, Grade 2, Pewter
Schlage Lock Company BE365-CAM-620 12-287 Keypad Deadbolt Camelot offers a perfect blend of security, convenience, and style. Designed to enhance your home’s security, this Grade 2 deadbolt features a durable antique pewter finish that complements both timber and metal doors. Its patented commercial-grade clutching motor drive ensures reliable operation, tested to an impressive 1,000,000 cycles for longevity. With the flexibility of keypad entry, you’ll no longer need to worry about losing keys. The keypad allows for easy addition, deletion, or modification of user codes, accommodating up to 19 different 4-digit codes with a staggering 10,000 possible combinations. The blue LED illuminated keypad enhances usability, while the mechanical key override provides a reliable backup option. Installation is a breeze, fitting standard door preparations with adjustable backsets from 2-3/8 to 2-3/4 inches. This deadbolt is compatible with door thicknesses between 35mm and 44mm and features a sturdy die-cast bolt with a hardened steel insert for added security. With its advanced features like a turn-lock function and a long-lasting 9-volt alkaline battery providing an average 3-year life, the Schlage BE365-CAM-620 is an ideal choice for homeowners seeking a modern, secure, and user-friendly locking solution.
Keypad Deadbolt Camelot, Key Override, 5-Pin C Keyway, Triple Option Adjustable Backset 2-3/8 to 2-3/4, Grade 2, 620/US15A Antique Pewter
Notice: The info below is not item specific.
In addition to security, quality and reliability you can count on the Schlage keypad deadbolts to provide convenience for today’s active lifestyles. Keypad entry locks mean no keys to hide, lose, carry or forget. Simplify your life with the latest in home security. Step up to a more secure and flexible solution with Schlage electronic keypad locks. You’re free to add, change, or delete user codes in just seconds and to come and go as you please. Install a Schlage lock and you install nearly a century of total dedication to security, quality and innovation.
Features:
- ANSI/BHMA Grade 2 Certified
- Patented commercial grade clutching motor drive, tested to 1,000,000 cycles
- Vandal resistant clutching lever and free spinning deadbolt turn
- Turn lock function – deadbolt allows user to lock and leave without a key
- Code control; 6 digit programming code to add/delete user codes
- 19 user 4 digit code capacity; 10,000 user code combinations
- Blue LED illuminated keypad on demand
- Mechanical key override
- 9 volt alkaline battery gives an average of 3 year life
- Fits a standard door preparation
Specifications:
- Door type: Timber or metal
- Door thickness: 35mm to 44mm
- Chassis: Cold rolled steel – corrosion treated
- Latch forend: Steel – plated finish
- Bolt: Die cast with hardened steel insert
- Strike plate: Steel – plated finish
- Backsets: 60/70mm adjustable
- Key cylinder: Schlage C5 pin
Functions:
- BE365 – Keypad Deadbolt:
- Deadbolt thrown from outside by keyway turn after pressing Schlage button or by inside thumbturn
- Deadbolt retracted from outside by entering valid user code then rotating keyway turn or by inside thumbturn
- Key can be used to unlock as backup
- BE375 – Touchscreen Deadbolt:
- Deadbolt retracted by entering valid user code then rotating outside thumbturn, or by inside thumb turn
- Deadbolt thrown by using outside thumbturn after pressing Schlage button, or by inside thumbturn
- FE695 – Touchscreen Lever:
- Unlocked by valid user code from outside
- Inside knob or lever always unlocked
- Interior switch sets lock to unlocked or automatic re-locking modes
- FE595 – Keypad Entry with Flex-Lock:
- Flex-locking, switch between unlocked or automatic re-locking
- Unlocked by valid user code from outside
- Inside knob or lever always unlocked
- Key can be used to unlock as back-up
- FE575 – Keypad Entry with Auto-Lock:
- Auto-locking, automatically re-locks after 5 seconds
- Unlocked by valid user code from outside
- Inside knob or lever always unlocked
- Key can be used to unlock as back-up
- FE285 – Lower Half Front Entry Set:
- Combine with electronic deadbolt for complete front entry set
- 605 – Bright brass
- 606 – Satin brass
- 609 – Antique brass
- 612 – Satin bronze
- 613 – Oil rubbed bronze
- 619 – Satin nickel
- 622 – Matte black
- 625 – Bright chrome
- 626 – Satin chrome
- 626AM – Satin chrome with antimicrobial coating
- 643E – Aged bronze (simulated equivalent)
Finishes:
Attributes
Alternate Codes: 043156894536, 140171, BE365CAM620, BE365-CAM-620 12-287, BE365CAM620 12-287, BE365CAM62012287, SCHBE365CAM620, SCHBE365CAM620 12-287
Category: Deadbolts, Electric Locks, Lock Sets, Pushbutton, Residential Deadbolts, Residential Electric Locks, Residential Locks, Standalone/Pushbutton Locks
Door Application: Residential Electric Locks
