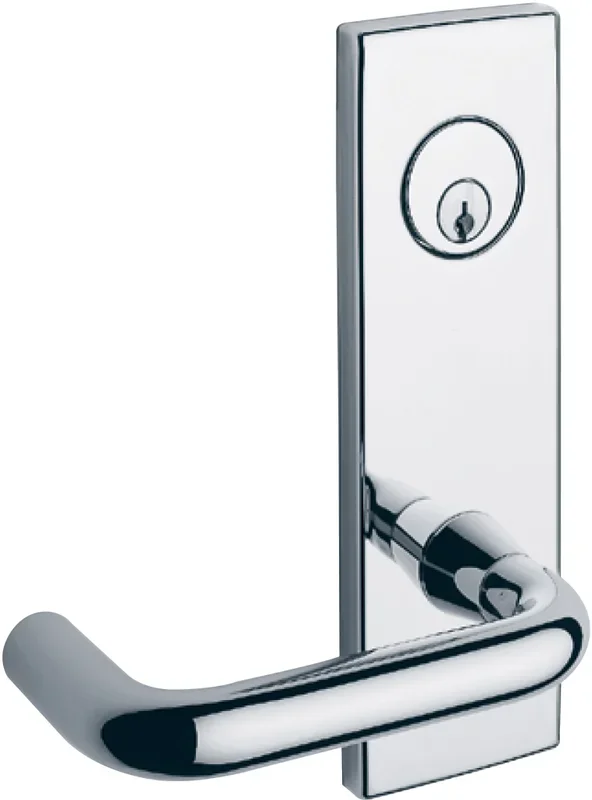

Schlage L9070J03L626 Lock Mortise Lock
Latchbolt retracted by knob/lever from either side unless outside is locked by key. Unlocked from outside by key. Inside knob/lever always free for immediate exit. Auxiliary latch deadlocks latchbolt when door is closed. Inside lever is always free.
- Handing:
- L9000 Series lock bodies are field-reversible without disassembly. L400 Series locks are non-handed.
- Door thickness: 1-3/4″ (44 mm) standard. 1-3/8″ (35 mm) to 2-1/2″ (64 mm) optional. Over 2-1/2″ (64 mm) door ranges vary by function. No escutcheon available for 1-3/4″ (44 mm) doors standard. 2″ to 2-3/8″ (51 mm to 60 mm) optional. Specify door thickness if other than 1-3/4″.
- Backset: 2-3/4″ (70 mm) only.
- Armored front:
- L9000 Series: 1-1/4″ x 8″ x 7/32″ (32 mm x 203 mm x 6 mm) standard. 1-1/16″ x 8″ x 1-7/32″ (27 mm x 203 mm x 6 mm) optional.
- L400 Series: 4-7/16″ x 3-5/8″ x 1″ (113 mm x 92 mm x 25 mm)
- Case size:
- L9000 Series: 4-7/16″ x 6-1/16″ x 1″ (113 mm x 154 mm x 25 mm)
- Spacing: Knob or lever to cylinder, 3-7/8″ (98mm); knob or lever to thumbturn hub, 2-11/16″ (68mm).
- Bolts: 1″ (25mm) throw stainless steel deadbolt and 3/4″ (19mm) throw stainless steel latch with anti-friction tongue.
- Exposed trim:
- Knobs: #41 and #42 heavy-duty wrought brass, bronze or stainless steel knobs match D Series knobs.
- Levers: Forged brass or bronze and cast stainless steel. Designs available to match D Series levers. 93 Lever design: Extruded brass, bronze or stainless steel. Mediterranean designs: Forged-brass lever and rose.
- Escutcheons: L escutcheons are cold-forged brass or bronze and stainless steel. N escutcheons are heavy wrought reinforced brass, bronze and stainless steel.
- Trim combinations: Available with knob both sides, lever both sides, or knob and lever with rose or escutcheon both sides.
- Strike: L9000 Series: ANSI curved lip strike 1-1/4″ x 4-7/8″ (32 mm x 124 mm) x 13/16″ (30 mm) lip to center with dust box standard. L400 Series: 1-1/8″ x 3-5/8″ (29 mm x 92 mm) with dust box.
- Cylinder & keys: 6-pin Everest C123 keyway cylinder with two patented keys standard.
- Classroom – Latchbolt Retracted from Either Side, Locked or Unlocked by Outside Key Only, Inside Always Free for Immediate Exit
- ANSI/BHMI Certified A156.13-2012
- Commercial Grade 1
- Lock Body Mortises Inside the Edge of the Door
- UL Listed for 3 Hour Fide Door
- Tested and certified to ANSI/BHMA grade 1 operational and security standards
- UL listed for 3-hour fire door; spring-loaded fusible link inside lock case provides fail secure mode in case of fire
- Deadbolt features include anti-saw pin in bolt to prevent cut-through
- Security blocking hub prevents lock access by removing levers
- Vandlgard option allows the outside lever to rotate freely down to prevent damage from excessive force while in a locked state
- Lock monitoring options include request to exit (RX), latchbolt (LX), door position (DPS), and deadbolt (DM) (availability varies by function)
- Patented Everest 29 S123 keyway is provided standard which prohibits unauthorized key duplication
- Restricted geographically exclusive Primus upgraded security options offer advanced key control and exceptional physical security
- Two piece anti-friction tongue in latch bolt reduces wear
- Breakaway spindle keeps door secured in the event of vandalism
- Field reversible latch bolt allows handing change without opening case
- Every Schlage lock undergoes intensive testing to determine its ANSI grade level including: cycle, resistance, door impact, warped door and bolt strength tests
Attributes
Alternate Codes: L9070J03L626
Ansi: A156.13-2017 Series 1000
Ansi Function: F05 – Classroom
Baa Qualified: Yes
Backset: 2-3/4″
Bolt Projection: 3/4″ Latch
Bolt Protection: 3/4″
Burglar Rated: No
Cam Number: L583-255
Cam Type: Schlage L
Category: Lock Sets, Mortise Locks, Mortise Lock Sets
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Cylinder Included: No
Cylinder Length: 1-1/2″
Cylinder Type: FSIC Cylinder
Door Application: Mortise Electric, Mortise Lock Body, Mortise Lock Sets
Door Bore Size: 2-1/8″
Door Thickness: 1-3/4″
Door Thickness Min: 1-3/4″
Dust Box: Plastic
Finish: 626/US26D
Finish Code: 626
Finish Color: Satin Chrome
Finish : Satin Chrome
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 9070-Classroom Lock
Function Family: Classroom
Grade: Grade 1
Hand: Field Reversible
Handing: Field Reversible
Installation: Commercial
Knob/ Lever Design: 03
Knob/ Lever Style: Lever
Latch Backset Dim: 2-3/4″
Latch Bolt Face Type: Square Corner
Latch Bolt Faceplate Size: 8″ x 1-1/4″
Latch Bolt Throw: 3/4″
Latch Bolt Type: Deadlatch
Latch Type: Dead Latch (Guarded)
Lever Design: 3
Lever Knob Design: 03 – Lever
Lever Knob Design Family: Straight Return Lever
Leverknob Design: 03 Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 3 Years
Lock Category: Mortise Lock
Lock Face Size: 8″ x 1-1/4″
Manufacturer Function : Latchbolt retracted by knob/lever from either side unless outside is locked by key. Unlocked from outside by key. Inside knob/lever always free for immediate exit. Auxiliary latch deadlocks latchbolt when door is locked. Inside knob/lever is always free for immediate egress.
Num Pins: 6
Origin: Mexico
Pack Height: 5.63″
Pack Height 2: 5.63″
Pack Length: 10.38″
Pack Length 2: 10.38″
Pack Qty: 1
Pack Volume: 313.68 in³
Pack Volume 2: 313.68 in³
Pack Width: 5.38″
Pack Width 2: 5.38″
Pins: 6
Pocket Dimensions: 6-5/8″ x 4-1/2″
Projection: 2.813″
Restrictions: None
Rose Escutcheon Design: L – Escutcheon
Rose Escutcheon Dimensions: 8″ x 1-3/4″ x 7/16″
Rose/ Escutcheon: L Escutcheon
Rose/ Escutcheon Size: 8″ x 1-3/4″ x 7/16″
Rose/ Escutcheon Style: Escutcheon
Roseescutcheon Design: L Escutcheon
Roseescutcheon Dimensions: 8″ x 1-3/4″ x 7/16″
Screws: Combination
Series: L Series
Ship Weight: 6.3 lbs.
Std Latch Backset Dim: 2-3/4″
Std Latch Type: Dead Latch (Guarded)
Std Strike Height: 4-7/8″
Std Strike Number: 10-072 1316 626
Std Strike Type: ANSI Strike
Std Strike Width: 1-3/16″
Strike: 10-072 Strike
Strike Height: 4-7/8″
Strike Number: 10-072
Strike Size: 4-7/8″ x 1-1/4″
Strike Type: ASA
Strike Width: 1-1/4″
Subtype: Mortise Lock
Supplier: Schlage
Type: LOCK SETS
Ul Listing: UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
