Description

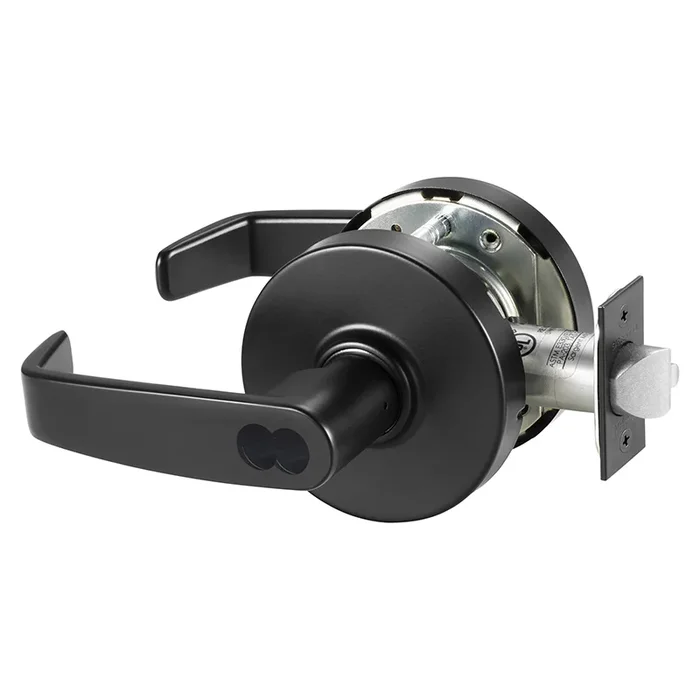

Sargent 70-10XG37 LL BSP Cylindrical Lock
The SARGENT 10X Line bored lock is engineered to secure and protect high-traffic, high-abuse spaces. It doesn’t simply meet ANSI/BHMA Grade 1 performance standards for durability, strength and performance, it exceeds them – by as much as 20 times. That means occupants will experience reliable performance throughout its lifecycle.
Attributes
Alternate Codes: 70-10XG37-LL-BSP, 7010XG37LLBSP
Ansi: F84
Ansi Function: F84 – Classroom
Base Material: Steel
Bolt Projection: 1/2″
Bore Hole Diameter: 2-1/8″
Box Depth Fraction: 8-1/4″
Box Height Fraction: 4-1/4″
Box Width Fraction: 7-1/8″
Burglar Rated: No
Category: Commercial Locks, Cylindrical Levers, Lock Sets
Commercial Residential: Commercial
Country of Origin: Usa
Country of origin: United States
Cylinder Type: SFIC Disposable Construction Core
Cylinders Present: Single Cylinder
Door Thickness: 1-3/4″ to 2″
Finish: BSP
Finish : Black Suede
Finish Family: Black
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 37-Classroom
Function Family: Classroom
Grade: Grade 1
Handing: Non-handed
Installation: Commercial
Latch Bore Diameter: 1″
Lever Knob: Lever
Lever Knob Design Name: L
Leverknob Design: L Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Year Limited Warranty
Lock Face Size: 1-1/8″ x 2-1/4″
Manufacturer Function: Classroom
Maximum Door Thickness: 2″
Minimum Door Thickness: 1-3/4″
Origin: United States
Pack Height: 4.25″
Pack Length: 8.25″
Pack Qty: 1
Pack Volume: 249.82 in³
Pack Width: 7.13″
Pins: 6
Product Height: 4.25″
Product Length: 8.25″
Product Width: 7.13″
Projection: 2-15/16″
Rose Escutcheon: Rose
Rose Escutcheon Design Family: Large Rose
Roseescutcheon Design: L Rose
Roseescutcheon Dimensions: 3-1/2″
Screws: Wood/Machine Screws
Series: 10X-Line Bored Lever Locks
Ship Weight: 4 lbs.
Std Latch Backset Dim: 2-3/4″
Std Latch Number: 10-2000
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8″
Std Strike Number: 808
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4″
Strike Dimensions: 1-1/4″ x 4-7/8″
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Unit of Measure: Each
Resources
- 10X Line Announcement
- 10X Line Bored Lock Installation Instructions
- 10X Line Bored Lock Sell Sheet
- 10X Line Cylindrical Lever Lock Parts Manual
- 10X Line FAQ
- Video: ASSA ABLOY Premium Bored Lock Whiteboard
