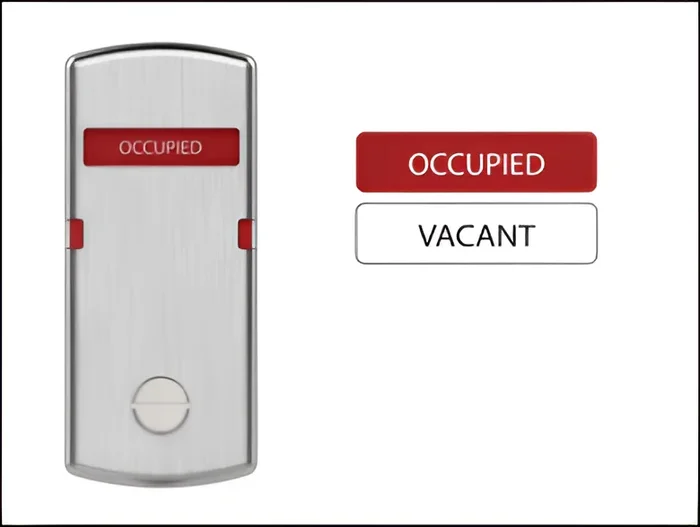

Schlage L9444-17A-626 OS-OCC/IS-LOC L583-363 KIT – 17A Privacy Mortise Lock w/ Deadbolt Indicators, Satin Chrome
Schlage Lock Company L9444-17A-626 OS-OCC/IS-LOC L583-363 KIT offers a robust solution for privacy needs, combining functionality with security. This 17A Privacy Mortise Lock features an outside indicator for occupied/vacant status and an inside indicator for locked/unlocked status, ensuring peace of mind in residential and commercial settings. The large ADA thumbturn (L583-363) and coin turn provide easy access for users of all abilities. Constructed from cold-rolled steel with zinc dichromate plating, this lock is built to last. It meets ANSI/BHMA Grade 1 operational and security standards and is UL listed for 3-hour fire doors, featuring a spring-loaded fusible link that provides fail-secure mode during emergencies. The anti-saw pin in the bolt and security blocking hub work together to prevent unauthorized access, enhancing its safety features. With a 2-3/4″ backset and compatibility with various door thicknesses, the L9444 accommodates a wide range of installations. The patented Everest 29 S123 keyway ensures advanced key control, protecting against unauthorized duplication. The satin chrome finish not only adds a sleek touch but also provides durability against wear and tear, making this lock a reliable choice for any environment.
KIT – 17A Privacy Mortise Lock with Deadbolt, Outside Indicator (Occupied/Vacant)Inside Indicator (Locked/Unlocked) with Inside ADA Thumbturn (L583-363), Coin Turn, 626/US26D Satin Chrome
Notice: The info below is not item specific.
The L series has long been the benchmark for grade 1 mortise locks. Beyond strength and security–it offers flexibility to meet most needs. Sixty-one mechanical functions include ten non-levered small- and large-case deadbolt functions and nine electrified functions that are regularly used as part of electronic access control systems. L Series locks have the ability to suite across electronic, tubular, exit trim, and multi-point locks to integrate seamlessly into any environment. The series features an array of security options including patented, 180-degree high visibility lock status indication trim, key override of a thumbturn being held, and support for multiple keyway families and cylinder types including Primus XP high-security cylinders.
Features:
- Tested and certified to ANSI/BHMA grade 1 operational and security standards
- UL listed for 3-hour fire door; spring-loaded fusible link inside lock case provides fail secure mode in case of fire
- Deadbolt features include anti-saw pin in bolt to prevent cut-through
- Security blocking hub prevents lock access by removing levers
- Vandlgard option allows the outside lever to rotate freely down to prevent damage from excessive force while in a locked state
- Lock monitoring options include request to exit (RX), latchbolt (LX), door position (DPS), and deadbolt (DM) (availability varies by function)
- Patented Everest 29 S123 keyway is provided standard which prohibits unauthorized key duplication
- Restricted geographically exclusive Primus upgraded security options offer advanced key control and exceptional physical security
- Two piece anti-friction tongue in latch bolt reduces wear
- Breakaway spindle keeps door secured in the event of vandalism
- Field reversible latch bolt allows handing change without opening case
- Every Schlage lock undergoes intensive testing to determine its ANSI grade level including: cycle, resistance, door impact, warped door and bolt strength tests
Specifications:
- Chassis Case material: Cold rolled steel (CRS) with zinc dichromate plating
- Chassis Backset: 2-3⁄4″ (70 mm) only
- Chassis Case size:
- L9000 Series: 4-7⁄16″ x 6-1⁄16″ x 1″ (113 mm x 154 mm x 25 mm)
- L400 Series: 4-7⁄16″ x 3-5⁄8″ x 1″ (113 mm x 92 mm x 25 mm)
- Chassis Door Thickness:
- Standard: 1-3⁄4″ (44 mm)
- Optional: 1-3⁄8″ (35 mm)
- Over 1-3⁄4″ (44 mm) specify door thickness and position in door EE, EI, EO, ED
- Spacing: Knob or lever to cylinder, 3-7/8″ (98mm); knob or lever to thumbturn hub, 2-11/16″ (68mm).
- Trim Handing: L9000 Series: Field-reversible without disassembly. L400 Series: Non-handed
- Lever/knob:
- 33 lever designs: Forged brass and cast stainless steel
- Two knob designs (see page 5): Heavy-duty wrought brass or stainless steel Ligature resistant lever (SL1) and knob (SK1), high security ligature resistant (HSLR) trim, HL6 hospital latch
- Rose/Escutcheon:
- L escutcheons: 7-15⁄16″ x 1-3⁄4″ x 7⁄16″ (202 mm x 44 mm x 11 mm); cold-forged brass and stainless steel
- N escutcheons: 7-7⁄8″ x 2-1⁄2″ x 7⁄16″ (200 mm x 64 mm x 11 mm); heavy-wrought, reinforced brass and stainless steel
- Roses: A, B, C: wrought brass and stainless steel; AVA and MER: forged brass
- Combinations: Available with knob both sides, lever both sides, or knob/lever combinations. Roses cannot be combined with escutcheons.
- Armor:
- L9000 Series: Standard: 1-1⁄4″ x 8″ x 7⁄32″ (32 mm x 203 mm x 6 mm). Optional: 1-1⁄16″ x 8″ x 7⁄32″ (27 mm x 203 mm x 6 mm)
- L400 Series: Standard: 1-1⁄4″ x 5-9⁄16″ x 7⁄32″(32 mm x 141 mm x 6 mm)
- Latch: 3⁄4″ (19 mm) throw stainless steel latch with anti-friction tongue
- Deadbolt: 1″ (25 mm) throw stainless steel deadbolt
- Strike:
- L9000 Series: Standard: ANSI curved lip strike 1-1⁄4″ x 4-7⁄8″ (32 mm x 124 mm) x 1-3⁄16″ (30 mm) lip with dust box; optional: extended lip strike options (7⁄8″, 1″, 1-1⁄2″, 1-3⁄4″, 2″)
- L400 Series: Standard: 1-1⁄8″ x 3-1⁄2″ (29 mm x 89 mm) with dust box; optional: 1-1⁄4″ x 4-7⁄8″ (32 mm x 124 mm) with dust box
- Cylinder format: 6-pin Conventional mortise cylinder (standard); also available in concealed mortise cylinder, FSIC, SFIC and 7-pin SL cylinder formats plus less cylinder options. Two nickel silver cut keys per lock.
- Keyway: Patented Everest 29 S123 (standard); also available in open, restricted, and Primus XP security levels with available master keying and construction keying.
Standard Lever and Knob Styles:
- 01: Width: 3.88″. Projection: 2.69″
- 02: Width: 4.75″. Projection: 2.81″
- 03 (Tubular): Width: 4.75″. Projection: 2.81″
- 05: Width: 3.75″. Projection: 2.88″
- 06 (Rhodes): Width: 4.63″. Projection: 2.5″
- 07 (Athens): Width: 4.63″. Projection: 2.88″
- 12: Width: 4.63″. Projection: 3.06″
- 17 (Sparta): Width: 4.75″. Projection: 3″
- 18: Width: 4.88″. Projection: 2.69″
- ACC (Accent): Width: 4.13″. Projection: 3.13″
- AST (Asti): Width: 4″. Projection: 2.63″
- LAT (Latitude): Width: 4.75″. Projection: 2.56″
- LON (Longitude): Width: 4.88″. Projection: 2.56″
- MER (Merano): Width: 4″. Projection: 3.13″
- OME (Omega): Width: 5.06″. Projection: 3.31″
- 41: Width: 2.21″. Projection: 2.34″
- 42: Width: 2.13″. Projection: 2.54″
Non-Keyed Functions:
- L9010: Passage latch
- ANSI F01
- Levers (or knobs) only-both sides; latchbolt only
- Latchbolt retracted by lever (or knob) from either side at all times
- Inside lever always free for immediate egress
- L9025: Exit or communicating lock
- ANSI F31
- No outside trim; lever (or knob) only-inside; latchbolt and deadlocking auxiliary latch
- Latchbolt retracted by lever (or knob) from inside only
- Inside lever always free for immediate egress
- L/LV9040: Bath/bedroom privacy lock
- ANSI F22
- Emergency thumbturn access outside; thumbturn inside; latchbolt only
- Latchbolt retracted by lever (or knob) from either side
- Outside lever is made inoperative by rotating inside thumbturn; Vandlgard option allows outside lever to rotate freely down while locked
- To unlock from outside, remove access hole cover, insert emergency thumbturn (furnished) and rotate
- Rotating inside thumbturn unlocks outside lever; turning inside lever retracts latchbolt and unlocks outside lever; closing door also unlocks preventing lock-out
- Inside lever always free for immediate egress
- Note: Hospital latch trim not available with Vandlgard option.
- L/LV9040 with XL11-446: Privacy with thumbturn both sides
- Thumbturn both sides; latchbolt only
- Latchbolt retracted by lever (or knob) from either side
- Outside lever is made inoperative by rotating either thumbturn; Vandlgard option allows outside lever to rotate freely down while locked
- Rotating either thumbturn unlocks outside lever
- Rotating inside lever retracts latchbolt and unlocks outside lever; closing door also unlocks
- Inside lever always free for immediate egress
- Note: Available in rose or L escutcheon trim only.
- L/LV9044: Privacy with coin turn outside
- Coin turn outside; thumbturn inside; latchbolt only
- Latchbolt retracted by lever (or knob) from either side
- Outside lever is made inoperative by rotating outside coin turn or inside thumbturn; Vandlgard option allows outside lever to rotate freely down while locked
- Rotating outside coin turn unlocks outside lever
- Rotating inside thumbturn unlocks outside lever; turning inside lever retracts latchbolt and unlocks outside lever; closing door also unlocks preventing lock-out
- Inside lever always free for immediate egress
- Note: Ligature-resistant trims not available with Vandlgard option.
- L9412 with XL11-907: Exit lock with deadbolt
- Lever (or knob) only-outside; thumbturn inside with lever; deadbolt, latchbolt and deadlocking auxiliary latch
- Outside lever (or knob) always fixed; latchbolt retracted by inside lever
- Deadbolt thrown or retracted by rotating inside thumbturn
- Rotating inside lever retracts both deadbolt and latchbolt
- Inside lever always free for immediate egress
- L/LV9440: Privacy with deadbolt
- ANSI F19
- Emergency thumbturn access outside; thumbturn inside; deadbolt and latchbolt
- Latchbolt retracted by lever (or knob) from either side
- Outside lever is made inoperative when deadbolt is thrown by rotating inside thumbturn; Vandlgard option allows outside lever to rotate freely down while locked
- To unlock from outside, remove access hole cover, insert emergency thumbturn (furnished) and rotate
- Rotating inside thumbturn unlocks outside lever; turning inside lever retracts both deadbolt and latchbolt and unlocks outside lever
- Inside lever always free for immediate egress
- L/LV9444: Privacy with deadbolt and coin turn outside
- Coin turn outside; thumbturn inside; deadbolt and latchbolt
- Latchbolt retracted by lever (or knob) from either side
- Outside lever is made inoperative when deadbolt is thrown by rotating inside thumbturn or outside coin turn; Vandlgard option allows outside lever to rotate freely down while locked
- Rotating outside coin turn retracts deadbolt and unlocks outside lever
- Rotating inside thumbturn unlocks outside lever; turning inside lever retracts both deadbolt and latchbolt and unlocks outside lever
- Inside lever always free for immediate egress
- Note: Ligature-resistant trims not available with Vandlgard option.
Single Cylinder Non-Deadbolt Functions:
- L9026: Exit lock with cylinder
- Key cylinder only, no lever (or knob) outside; lever only-inside; latchbolt and deadlocking auxiliary latch
- Latchbolt retracted by lever from inside
- Key outside retracts latchbolt
- Inside lever always free for immediate egress
- Note: Available in rose or L escutcheon trim only.
- L/LV9050: Entrance/office lock
- ANSI F04
- Key cylinder outside; thumbturn inside; latchbolt and deadlocking auxiliary latch
- Latchbolt retracted by lever (or knob) from either side
- Outside lever is made inoperative by key outside or by turning inside thumbturn; Vandlgard option allows both levers to rotate freely down while locked
- Key outside unlocks outside lever and retracts latchbolt
- Rotating inside thumbturn unlocks outside lever; turning inside lever retracts latchbolt but does not unlock
- Inside lever always free for immediate egress
- Caution: Egress without fully rotating the thumbturn to vertical position can result in lock-out situations.
- Note: Hospital latch and ligature-resistant trims not available with Vandlgard option.
- L/LV9056, L/LV9056 with XL13-439: Entrance/office lock with automatic unlocking
- Key cylinder outside; thumbturn inside; latchbolt and deadlocking auxiliary latch
- Latchbolt retracted by lever (or knob) from either side
- Outside lever is made inoperative by key outside or by turning inside thumbturn; Vandlgard option allows outside lever to rotate freely down while locked
- Key outside unlocks outside lever and retracts latchbolt; XL13-439 option also allows key override of thumbturn if being held in locked position
- Rotating inside thumbturn unlocks outside lever; turning inside lever retracts latchbolt and unlocks outside lever; closing door also unlocks preventing lock-out
- Inside lever always free for immediate egress
- Note: Ligature-resistant trims not available with Vandlgard option.
- L/LV9070: Classroom lock, exterior lockdown only
- ANSI F05
- Key cylinder outside with lever (or knob); lever only-inside; latchbolt and deadlocking auxiliary latch
- Latchbolt retracted by lever from either side
- Outside lever is made inoperative by key outside; Vandlgard option allows outside lever to rotate freely down while locked
- Key outside unlocks outside lever and retracts latchbolt
- Inside lever always free for immediate egress
- Note: Outside lever remains inoperative until unlocked by key.
- Note: Hospital latch and ligature-resistant trims not available with Vandlgard option.
- L/LV9076: Classroom holdback lock, exterior lockdown only
- ANSI F06
- Key cylinder outside with lever (or knob); lever only-inside; latchbolt and deadlocking auxiliary latch
- Latchbolt retracted by lever from either side
- Outside lever is made inoperative by key outside; Vandlgard option allows outside lever to rotate freely down while locked
- Key outside unlocks outside lever and retracts latchbolt
- Rotate inside lever while turning key 360° to activate retracted latch holdback feature; to deactivate, reverse key rotation 360°
- Inside lever always free for immediate egress
- Note: Outside lever remains inoperative until unlocked by key.
- Note: Locks with holdback feature are not UL listed. Installation should be in accordance with existing codes only.
- Note: Ligature-resistant trims not available with Vandlgard option.
- L/LV9080: Storeroom lock
- ANSI F07
- Key cylinder outside with lever (or knob); lever only-inside; latchbolt and deadlocking auxiliary latch
- Outside lever always fixed; latchbolt retracted by inside lever; Vandlgard option allows outside lever to rotate freely down while locked
- Key outside retracts latchbolt
- Inside lever always free for immediate egress
- Note: Hospital latch and ligature-resistant trims not available with Vandlgard option.
- L/LV9081: Accessible storeroom lock
- Key cylinder outside with lever (or knob); lever only-inside; latchbolt and deadlocking auxiliary latch
- Latchbolt retracted by lever from either side
- Outside lever is made inoperative by key outside; Vandlgard option allows outside lever to rotate freely down while locked
- Key outside inserted and turned 280° unlocks allowing outside lever to retract latchbolt
- Inside lever always free for immediate egress
Double Cylinder Non-Deadbolt Functions:
- L/LV9060: Apartment entrance lock
- ANSI F09
- Key cylinder both sides; latchbolt and deadlocking auxiliary latch
- Latchbolt retracted by lever (or knob) from either side
- Outside lever is made inoperative by key inside; Vandlgard option allows outside lever to rotate freely down while locked
- Key outside retracts latchbolt but cannot lock or unlock outside lever
- Rotating inside lever retracts latchbolt; key inside retracts latchbolt and unlocks outside lever
- Inside lever always free for immediate egress
- Note: Outside lever remains inoperative until unlocked by key inside.
- Note: Hospital latch and ligature-resistant trims not available with Vandlgard option.
- L9066 with XL11-897: Store lock
- Key cylinder both sides; latchbolt and deadlocking auxiliary latch
- Latchbolt retracted by lever (or knob) from either side
- Both levers are made inoperative by key from either side
- Key use on either side unlocks both levers and retracts latchbolt
- Caution: Double cylinder locks on any door, in any structure which is used for egress are a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only.
- Note: Ligature-resistant trims not available with Vandlgard option.
- L/LV9071: Classroom security lock, interior/exterior lockdown
- ANSI F32
- Key cylinder both sides; latchbolt and deadlocking auxiliary latch
- Latchbolt retracted by lever (or knob) from either side
- Outside lever is made inoperative by key from either side; Vandlgard option allows outside lever to rotate freely down while locked
- Rotating inside lever retracts latchbolt; key on either side unlocks outside lever and retracts latchbolt
- Inside lever always free for immediate egress
- Note: Outside lever remains inoperative until unlocked by key.
- Note: Ligature-resistant trims not available with Vandlgard option.
- L/LV9077: Classroom security holdback lock, interior/exterior lockdown
- Key cylinder both sides; latchbolt and deadlocking auxiliary latch
- Latchbolt retracted by lever (or knob) from either side
- Outside lever is made inoperative by key from either side; Vandlgard option allows outside lever to rotate freely down while locked
- Key outside retracts latchbolt but cannot unlock outside lever
- Rotating inside lever retracts latchbolt; key inside retracts latchbolt and unlocks outside lever
- Rotate inside lever while turning key 360° to activate retracted latch holdback feature; to deactivate, reverse key rotation 360°
- Inside lever always free for immediate egress
- Note: Outside lever remains inoperative until unlocked by key inside.
- Note: Locks with holdback feature are not UL listed. Installation should be in accordance with existing codes only.
- Note: Ligature-resistant trims not available with Vandlgard option.
- L/LV9082: Institution lock
- ANSI F30
- Key cylinder both sides; latchbolt and deadlocking auxiliary latch
- Both levers (or knobs) always fixed; Vandlgard option allows both levers to rotate freely down while locked
- Key on either side retracts latchbolt
- Caution: Double cylinder locks on anydoor, in any structure which is used for egress are a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only.
- Note: Hospital latch and ligature-resistant trims not available with Vandlgard option.
Single Cylinder Deadbolt Functions:
- L/LV9453: Entrance/office lock with deadbolt
- ANSI F20
- Key cylinder outside; thumbturn inside; deadbolt, latchbolt and deadlocking auxiliary latch
- Latchbolt retracted by lever (or knob) from either side
- Outside lever is made inoperative when deadbolt is thrown by key outside; rotating thumbturn 20° locks outside lever only; rotating thumbturn 90° also throws deadbolt; Vandlgard® option allows outside lever to rotate freely down while locked
- Key outside retracts deadbolt and latchbolt, however, outside lever remains locked
- Rotating inside lever retracts deadbolt and latchbolt; outside lever unlocked when thumbturn is returned to vertical position
- Inside lever always free for immediate egress
- Caution: Egress without fully rotating the thumbturn to vertical position can result in lock-out situations.
- Note: Hospital latch and ligature-resistant trims not available with Vandlgard option.
- L/LV9456, L/LV9456 with XL13-439: Corridor lock with deadbolt
- ANSI F13
- Key cylinder outside; thumbturn inside; deadbolt and latchbolt
- Latchbolt retracted by lever (or knob) from either side
- Outside lever is made inoperative when deadbolt is thrown by key outside or by inside thumbturn; Vandlgard option allows outside lever to rotate freely down while locked
- Key outside retracts deadbolt and unlocks outside lever; XL13-439 option allows key to retract deadbolt overriding thumbturn if being held in locked position
- Rotating inside lever retracts both deadbolt and latchbolt and unlocks outside lever
- Inside lever always free for immediate egress
- Note: Hospital latch and ligature-resistant trims not available with Vandlgard option.
- L9460 with XL11-635: Cylinder x thumbturn deadbolt with fixed levers
- Key cylinder outside; thumbturn inside; deadbolt only
- Both levers (or knobs) always fixed
- Deadbolt thrown or retracted by key outside or by inside thumbturn
- L9460 with XL11-886: Cylinder x thumbturn deadbolt with inside active lever
- Key cylinder outside; thumbturn inside; deadbolt only
- Outside lever (or knob) always fixed; inside lever always active
- Deadbolt thrown or retracted by key outside or by inside thumbturn
- Rotating inside lever retracts deadbolt
- Inside lever always free for immediate egress
- L9464 with XL11-886: Single cylinder deadbolt with inside active lever
- Key cylinder outside with lever (or knob); lever only-inside; deadbolt only
- Outside lever always fixed; inside lever always active
- Deadbolt thrown or retracted by key outside
- Rotating inside lever retracts deadbolt
- Inside lever always free for immediate egress
- L9465: Closet/storeroom lock
- Key cylinder outside with lever (or knob); lever only-inside; deadbolt and latchbolt
- Latchbolt retracted by lever from either side at all times
- Deadbolt thrown or retracted by key outside
- Caution: Deadbolt locks with outside key retraction only can result in situations where occupants can be locked in.
- Note: Hospital latch and ligature-resistant trims not available with Vandlgard option.
- L9473: Dormitory/bedroom lock
- ANSI F21
- Key cylinder outside; thumbturn inside; deadbolt and latchbolt
- Latchbolt retracted by lever (or knob) from either side at all times
- Deadbolt thrown or retracted by key outside or by inside thumbturn
- Note: Hospital latch and ligature-resistant trims not available with Vandlgard option.
- L/LV9480, L/LV9480 with XL13-439: Storeroom lock with deadbolt
- Key cylinder outside; thumbturn inside; deadbolt, latchbolt and deadlocking auxiliary latch
- Outside lever (or knob) always fixed; latchbolt retracted by inside lever; Vandlgard option allows outside lever to rotate freely down while locked
- Deadbolt thrown or retracted by key outside or by inside thumbturn
- Key outside retracts deadbolt and latchbolt, however, outside lever remains locked; XL13-439 option allows key to retract deadbolt and latchbolt overriding thumbturn if being held in locked position
- Rotating inside lever retracts both deadbolt and latchbolt
- Inside lever always free for immediate egress
- Note: Ligature-resistant trims not available with Vandlgard option.
- L/LV9485, L/LV9485 with XL13-439: Faculty/hotel restroom lock with deadbolt
- Key cylinder outside; thumbturn inside; deadbolt, latchbolt and deadlocking auxiliary latch
- Outside lever (or knob) always fixed; latchbolt retracted by inside lever; Vandlgard option allows outside lever to rotate freely down while locked
- Deadbolt thrown or retracted by rotating inside thumbturn
- Key outside retracts latchbolt but does not retract deadbolt unless using an emergency key (sold separately); XL13-439 option allows emergency key to retract deadbolt and latchbolt overriding thumbturn if being held in locked position
- Rotating inside lever retracts both deadbolt and latchbolt
- Inside lever always free for immediate egress
- Note: Not available in SFIC or Everest SL formats.
- Note: Hospital latch and ligature-resistant trims not available with Vandlgard option.
- L9485 with XL11-557: Prison function lock
- Key cylinder outside with knob; knob only-inside; deadbolt, latchbolt and deadlocking auxiliary latch
- Outside knob always free spinning; latchbolt retracted by inside knob
- Inside knob is made inoperative (fixed) when deadbolt is thrown by guard key outside
- Guard key outside retracts deadbolt and unlocks inside knob; in unlocked state use of prisoner’s key outside retracts latchbolt only
- Note: Available with knobs in rose or L escutcheon trim only. Tamper-resistant torx screws standard.
- L/LV9486, L/LV9486 with XL13-439: Faculty/hotel restroom lock with chevron indicator
- Key cylinder outside; thumbturn inside; deadbolt, latchbolt and deadlocking auxiliary latch
- Outside lever (or knob) always fixed; latchbolt retracted by inside lever; Vandlgard® option allows outside lever to rotate freely down while locked
- Deadbolt thrown or retracted by rotating inside thumbturn, when thrown-indicator message changes from blank to “do not disturb”
- Key outside retracts latchbolt but does not retract deadbolt unless using an emergency key (sold separately); XL13-439 option allows emergency key to retract deadbolt and latchbolt overriding thumbturn if being held in locked position
- Rotating inside lever retracts both deadbolt and latchbolt
- Inside lever always free for immediate egress
- Note: Not available in SFIC or Everest SL formats. Hospital latch trim not available with Vandlgard option.
- To order with key override, specify function and note XL13-439 as a special option.
- Available with A, B or C roses only; to order chevron indicator with “occupied” message specify L583-375.
- L/LV9496, L/LV9496 with XL13-439: Corridor lock with chevron indicator
- Key cylinder outside; thumbturn inside; deadbolt and latchbolt
- Latchbolt retracted by lever (or knob) from either side
- Outside lever is made inoperative when deadbolt is thrown by key outside or by inside thumbturn, when thrown-indicator message changes from blank to “occupied”; Vandlgard option allows outside lever to rotate freely down while locked
- Key outside retracts deadbolt and unlocks outside lever; XL13-439 option allows key to retract deadbolt overriding thumbturn if being held in locked position
- Rotating inside lever retracts both deadbolt and latchbolt and unlocks outside lever
- Inside lever always free for immediate egress
- Note: Available in rose trim only.
- To order with key override, specify function and note XL13-439 as a special option.
- Adds chevron style occupancy indicator (09-611) to sectional trim lock with A or B roses only.
Double Cylinder Deadbolt Functions:
- L/LV9457: Classroom security lock with deadbolt
- ANSI F33
- Key cylinder both sides; deadbolt and latchbolt
- Latchbolt retracted by lever (or knob) from either side
- Outside lever is made inoperative when deadbolt is thrown by key from either side; Vandlgard option allows outside lever to rotate freely down while locked
- Key either side retracts both latchbolt and deadbolt and unlocks outside lever
- Rotating inside lever retracts both deadbolt and latchbolt and unlocks outside lever
- Inside lever always free for immediate egress
- Note: Ligature-resistant trims not available with Vandlgard option.
- L/LV9458: Classroom security lock with deadbolt and auxiliary latch
- ANSI F34
- Key cylinder both sides; deadbolt, latchbolt and deadlocking auxiliary latch
- Latchbolt retracted by lever (or knob) from either side
- Outside lever is made inoperative when deadbolt is thrown by key from either side; Vandlgard option allows outside lever to rotate freely down while locked
- Key either side retracts both latchbolt and deadbolt and unlocks outside lever
- Rotating inside lever retracts both deadbolt and latchbolt and unlocks outside lever
- Inside lever always free for immediate egress
- Note: Ligature-resistant trims not available with Vandlgard option.
- L9462 with XL11-886: Double cylinder deadbolt with active inside lever
- Key cylinder both sides; deadbolt only
- Outside lever (or knob) always fixed; inside lever always active
- Deadbolt thrown or retracted by key from either side
- Rotating inside lever retracts deadbolt
- Inside lever always free for immediate egress
- L9466: Utility room/storeroom lock
- ANSI F14
- Key cylinder both sides; deadbolt and latchbolt
- Latchbolt retracted by lever (or knob) from either side
- Deadbolt thrown or retracted by key from either side
- Caution: Double cylinder locks on any door, in any structure which is used for egress are a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only.
- Note: Hospital latch and ligature-resistant trims not available with Vandlgard option.
- L/LV9482 x XL11-543: Institution lock with deadbolt
- Key cylinder both sides; deadbolt, latchbolt and deadlocking auxiliary latch
- Both levers always fixed; Vandlgard option allows both leversto rotate freely down while locked
- Deadbolt thrown or retracted by key from either side
- Key on either side retracts both deadbolt and latchbolt
- Caution: Double cylinder locks on any door, in any structure which is used for egress are a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only.
Finishes:
- 605 – Bright brass
- 606 – Satin brass
- 609 – Antique brass
- 612 – Satin bronze
- 613 – Oil rubbed bronze
- 619 – Satin nickel
- 622 – Matte black
- 625 – Bright chrome
- 626 – Satin chrome
- 626AM – Satin chrome with antimicrobial coating
- 629 – Bright stainless steel
- 630 – Satin stainless steel
- 630AM – Satin stainless steel antimicrobial
- 643e – Aged bronze
Attributes
Alternate Codes: L9444-17A-626 OS-OCC/IS-LOC L583-363, L944417A626OSOCCISLOCL583363
Backset: 2-3/4″
Category: Lock Sets, Mortise Locks, Mortise Lock Sets
Door Application: Mortise Electric, Mortise Lock Body, Mortise Lock Sets
Door Indicators: Exterior Indicator – Vacant/Occupied, Interior Indicator – Locked/Unlocked
Finish Code: 626
Finish Color: Brushed Chrome, Satin Chrome
Function: Privacy
Lever Design: 17
Lock Category: Mortise Lockset – Latch and Deadbolt
Rose/ Escutcheon: A Rose
Series: L Series
Thumbturn Style: Large ADA Thumbturn
Reviews
There are no reviews yet.
