Von Duprin QELA-7527L-BE-F-626-48-LHR-06 75 Series Fire-Rated Exit Device, QEL, SVR, 360L-BE-06 Trim, Satin Chrome
Von Duprin QELA-7527L-BE-F-626-48-LHR-06 KIT offers an advanced solution for fire-rated exit control with its 75 Series Narrow Stile design. This Quiet Electric Latch Retraction (QEL) exit device features a Surface Vertical Rod (SVR) mechanism, ensuring smooth operation with minimal noise-ideal for environments where discretion is paramount. Designed for durability and functionality, the QELA-7527 is UL listed for fire exit hardware and certified to ANSI/BHMA A156.3, Grade 1. Its deadlocking latch bolt with a 5/8″ throw provides enhanced security, while the device’s compatibility with various access control systems allows for convenient electronic control of entry. The unit is reversible for left-hand reverse handing and accommodates door sizes from 2′ 6″ to 4′. With a sleek satin chrome finish (626/US26D), this exit device not only meets safety standards but also complements modern architectural aesthetics. The pushbar’s projection adapts seamlessly to user needs, with options for manual dogging if required. Installation is user-friendly, coming with a comprehensive screw pack for both metal and wood doors. Elevate your facility’s safety with the Von Duprin QELA-7527L, where reliability and efficiency converge in a sophisticated locking solution.

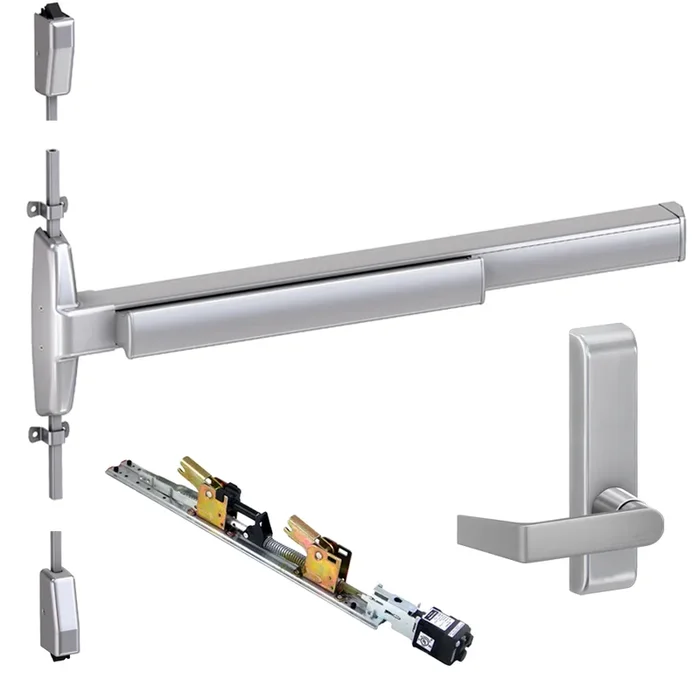

KIT – 75 Series Narrow Stile Fire-Rated, QEL (Quiet Electric Latch Retraction), SVR (Surface Vertical Rod) Exit Device, 360L-BE-06 Passage Lever Trim, LHR Left Hand Reverse/Reversible Handing (Snap Ring Tool Required), 48in x 84in, No Dogging, Grade 1, 626/US26D Satin Chrome
Notice: The info below is not item specific.
The 7527-F fire exit surface mounted vertical rod device are certified to ANSI/BHMA A156.3 2014, grade 1 and UL listed for fire exit hardware. Vertical rod and latch guards are available to protect the bottom rod of the exit device from damage by impacts of carts or gurneys passing through doors. Rod and latch guards can be used on hollow metal or tin clad composite fire doors. Quiet electric latch retraction (QEL) provides electronic control of an exit device for environments where limited operational noise is desired. These devices always provide mechanical egress. The electrified latch retraction can also be activated by an access system or building automation system to unlatch the exit device momentarily. Often the QEL is used with a credential reader and access control system to unlock the door momentarily for authorized users. The QEL can also be configured to electronically retract the latch for an extended period of time to allow free entry. This is a convenient alternative to mechanical dogging. If manual dogging required on a panic rated QEL device, the hex dogging option is available, to order specify HD-QEL. The QEL option is available on panic devices and fire rated devices. UL approved for class II circuit applications. The QEL option does not include the power transfer from door to frame, the power supply, or the control operator. Refer to EPT-2 power transfer and the PS902 or 914 power supply. The 900 Series power supply with the 2RS, 4RL or 4R board is the minimum required. Other option boards available for other functions, see 900 Series power supply for additional information. The QEL has a low in rush current, so it can be used with standard Schlage power supplies. Calculate the peak current draw of all devices in the system to determine the required amperage of the supply. The -2RS option board is designed to control two electric latch retraction devices and provide time delay between the firing of outputs is required. The power transfer is also sold separately.
Specifications:
- Device Functions: Device ships EO/DT/NL; field selectable
- Center Case: 9″ x 1-5/8″ x 2-3/8″ (229mm x 41mm x 60mm)
- Device lengths:
- 3′: 2′ 6″ to 3′ (762mm to 914mm) door size
- 4′: 3′ to 4′ (914mm to 1219mm) door size
- Device centerline from finished floor:
- 39-13/16″ (1011mm)
- 39-11/16″ (1008mm) with mullion
- Mechanism Case: 2-5/16″ x 2-1/8″ (59mm x 54mm)
- Latch Bolt: Deadlocking, 5/8″ (15.875mm) throw
- Projection:
- Pushbar neutral – 3-13/16″ (97mm)
- Pushbar depressed – 3-1/16″ (78mm)
- Pushbar Length: 3′ 18″ (457mm), 4′ 24″ (610mm)
- Fasteners and Sex Bolts (SNB): Includes screw pack for 1-3/4″ (4mm) and 2-1/4″ (57mm) thick metal or wood doors (Optional 425 SNB available)
- Electrified Options:
- LX: Latch bolt monitor switch
- RX: Request to exit
- E: Electric locking and unlocking trim; no cylinder override
- ALK: Quiet electric latch retraction
- CON: Allegion Connect
- QEL: Quiet electric latch retraction
- Bolt retraction via switch
- Converts exit door to push-pull operation
- Voltage: 24VDC
- Current: 1.0 A inrush (0.5 sec.) / 0.14 A holding
- Mechanical Options:
- GBK: Glass bead kit
- SNB: Sex bolts
- SEC: Security screws
- Dogging Options: No mechanical dogging
- Strikes:
- 299F/(499F for LBR: Top—Dull black
- 248L4/304L: Bottom—Unfinished
Trim Functions:
- EO: Exit only.
- No outside Trim
- DT: Dummy trim
- Pull when dogged (not recommended for fire device)
- NL: Night latch
- Key retracts latch bolt
- Rim cylinder
- NLOP: Night latch
- Key retracts latch bolt, optional pull required
- Rim cylinder
- L: Lever
- Key locks and unlocks
- 1-1/4″ mortise cylinder
- Handed, reversible lever
- Electrified lever operation available
- LDT: Lever, rigid – dummy trim
- Pull when dogged (not recommended for fire device)
- LBE: Lever – blank escutcheon
- Always operable (no cylinder)
- TL: Turn lever
- Key locks and unlocks; or key unlocks, then relocks when key is removed (use with DT trim)
- 1-1/4″ mortise cylinder
- TLBE: Turn lever – blank escutcheon
- Blank escutcheon always operable (no cylinder, use with DT trim)
Finishes:
- 605 – Bright brass
- 606 – Satin brass
- 612 – Satin bronze
- 619 – Satin nickel
- 625 – Bright chrome
- 626 – Satin chrome
- 628 – Aluminum, anodized
- 630 – Satin stainless steel
- 643e – Aged bronze
- 710 – Dark brown, anodized
- 711 – Matte black
Features
- Projection:
- 39-13/16″ (1011mm)
- Mechanism Case: 2-5/16″ x 2-1/8″ (59mm x 54mm)
- RX: Request to exit
- 4′: 3′ to 4′ (914mm to 1219mm) door size
- Latch Bolt: Deadlocking, 5/8″ (15.875mm) throw
- GBK: Glass bead kit
- Dogging Options: No mechanical dogging
- Device Functions: Device ships EO/DT/NL; field selectable
- SNB: Sex bolts
- Pushbar Length: 3′ 18″ (457mm), 4′ 24″ (610mm)
- CON: Allegion Connect
- Converts exit door to push-pull operation
- QEL: Quiet electric latch retraction
- Device lengths:
- Voltage: 24VDC
- Mechanical Options:
- Pushbar neutral – 3-13/16″ (97mm)
- Electrified Options:
- LX: Latch bolt monitor switch
- Current: 1.0 A inrush (0.5 sec.) / 0.14 A holding
- Fasteners and Sex Bolts (SNB): Includes screw pack for 1-3/4″ (4mm) and 2-1/4″ (57mm) thick metal or wood doors (Optional 425 SNB available)
- E: Electric locking and unlocking trim; no cylinder override
- Bolt retraction via switch
- Strikes:
- ALK: Quiet electric latch retraction
- 299F/(499F for LBR: Top—Dull black
- Pushbar depressed – 3-1/16″ (78mm)
- 3′: 2′ 6″ to 3′ (762mm to 914mm) door size
- Device centerline from finished floor:
- SEC: Security screws
- 248L4/304L: Bottom—Unfinished
- Center Case: 9″ x 1-5/8″ x 2-3/8″ (229mm x 41mm x 60mm)
- 39-11/16″ (1008mm) with mullion
Attributes
Alternate Codes: QELA-7527L-BE-F-626-48-LHR-06, QELA7527LBEF62648LHR06
Category: Electrified Panic Devices, Panic Devices & Exit Alarms
Center Line: 3′ 3-13/16″
Certifications: A156.3, ANSI, ANSI/UL 10C, BHMA, UL 305, ULC-S104
Device Width: 48″
Door Application: Panic Devices & Exit Alarms
Door Frame Type: Aluminum Frame
Door Thickness: 1-3/4″
Door Type: Aluminum
Electrical Option: Electric Latch Retraction
Exit Device Category: Surface Vertical Rod Exit SVR
Finish Code: 622, 626, 630
Finish Color: Black, Brushed Chrome, Flat Black, Flat Black Coated, Matte Black, Satin Chrome, Satin Stainless Steel
Fire Rated: Yes
Fire Rating: 180 min
Function: Blank Escutcheon, Lever
Grade: Grade 1
Handing: Left Handed Reverse
Lever Design: 6
Manufacturer: Von Duprin
Series: 75
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Stile Width: Narrow Stile
Strike Type: Fire Rated Rim Strike, Vertical Rod Bottom Strike
