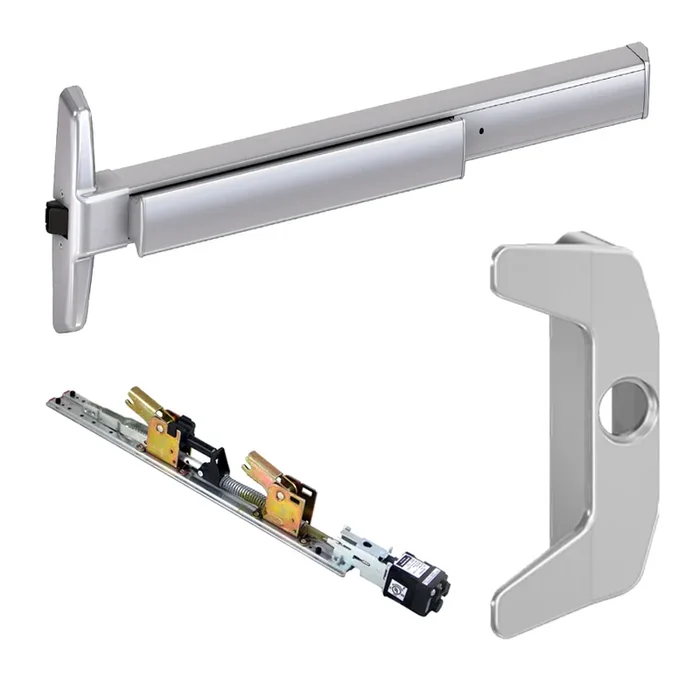

Von Duprin QELA-75NL-F-626-36-LHR 75 Series Narrow Stile Fire-Rated QEL Rim Exit Device, Left Hand, Satin Chrome
Von Duprin QELA-75NL-F-626-36-LHR KIT is a cutting-edge exit device designed for narrow stile fire-rated applications. This device features Quiet Electric Latch Retraction (QEL), making it ideal for environments where minimizing operational noise is essential. The rim exit device is ANSI/BHMA Grade 1 certified and UL listed for fire exit hardware, ensuring reliability and safety. The QELA-75NL is equipped with a 386NL night latch trim that allows for key retraction of the latch bolt using a rim cylinder. This left-hand reverse unit measures 36 inches in length and comes without mechanical dogging, making it a streamlined solution for secure exits. The deadlocking latch bolt features a 5/8-inch throw, providing strong security. The QEL functionality allows for electronic control, enabling momentary unlatching via access control systems or building automation systems. It can also be configured for extended latch retraction, allowing for free entry when needed. Designed for both single and double door applications, this exit device is field-sizeable and compatible with hollow metal frames. Finished in satin chrome (626/US26D), the QELA-75NL-F is not only functional but also aesthetically pleasing, making it a perfect choice for modern buildings seeking superior security solutions.
KIT – 75 Series Narrow Stile Fire-Rated, QEL (Quiet Electric Latch Retraction), Rim Exit Device, 386NL Night Latch Trim, (Requires Rim Cylinder), Left Hand Reverse, 36in, No Dogging, Grade 1, 626/US26D Satin Chrome
Notice: The info below is not item specific.
The 75-F rim fire exit devices are certified to ANSI/BHMA A156.3 2014, grade 1 and UL listed for fire exit hardware. Quiet electric latch retraction (QEL) provides electronic control of an exit device for environments where limited operational noise is desired. These devices always provide mechanical egress. The electrified latch retraction can also be activated by an access system or building automation system to unlatch the exit device momentarily. Often the QEL is used with a credential reader and access control system to unlock the door momentarily for authorized users. The QEL can also be configured to electronically retract the latch for an extended period of time to allow free entry. This is a convenient alternative to mechanical dogging. If manual dogging required on a panic rated QEL device, the hex dogging option is available, to order specify HD-QEL. The QEL option is available on panic devices and fire rated devices. UL approved for class II circuit applications. The QEL option does not include the power transfer from door to frame, the power supply, or the control operator. Refer to EPT-2 power transfer and the PS902 or 914 power supply. The 900 series power supply with the 2RS, 4RL or 4R board is the minimum required. Other option boards available for other functions, see 900 Series power supply for additional information. The QEL has a low in rush current, so it can be used with standard Schlage power supplies. Calculate the peak current draw of all devices in the system to determine the required amperage of the supply. The -2RS option board is designed to control two electric latch retraction devices and provide time delay between the firing of outputs is required. The power transfer is also sold separately.
Features:
- ANSI/BHMA Grade 1 certified and backed by Allegion services and support
- Available in a wide range of device types, options, lever designs, and finishes
- Available in 3′ and 4′ lengths that are field sizeable for single and double door applications
Specifications:
- Device Functions: Device ships EO/DT/NL; field selectable
- Device lengths:
- 3′: 2′ 6″ to 3′ (762mm to 914mm) door size
- 4′: 3′ to 4′ (914mm to 1219mm) door size
- Device centerline from finished floor:
- 39-13/16″ (1011mm)
- 39-11/16″ (1008mm) with mullion
- Center Case: 9″ x 1-5/8″ x 2-3/8″ (229mm x 41mm x 60mm)
- Mechanism Case: 2-5/16″ x 2-1/8″ (59mm x 54mm)
- Projection:
- Pushbar neutral – 3-13/16″ (97mm)
- Pushbar depressed – 3-1/16″ (78mm)
- Latch bolt: Deadlocking, 5/8″ (15.875mm) throw
- Pushbar length:
- 3′ – 18″ (457mm)
- 4′ – 24″ (610mm)
- Fasteners and sex bolts (SNB): Includes screw pack for 1-3/4″ (4mm) and 2-1/4″ (57mm) thick metal or wood doors (Optional 425 SNB available)
- Electrified Options:
- LX: Latch bolt monitor switch
- RX: Request to exit
- E: Electric locking and unlocking trim; no cylinder override
- ALK: Alarm exit kit
- CON: Allegion Connect
- QEL: Quiet electric latch retraction
- Bolt retraction via switch
- Converts exit door to push-pull operation
- Voltage: 24VDC
- Current: 1.0 A inrush (0.5 sec.) / 0.14 A holding
- Mechanical Options:
- AX: Accessible device
- GBK: Glass bead kit
- SNB: Sex bolts
- SEC: Security screws
- Dogging Options: No Mechanical dogging
- Strikes:
- 299F: Dull black
- 499F: With mullion
Trim Functions:
- EO: Exit only.
- No outside Trim
- DT: Dummy trim
- Pull when dogged (not recommended for fire device)
- NL: Night latch
- Key retracts latch bolt
- Rim cylinder
- NLOP: Night latch
- Key retracts latch bolt, optional pull required
- Rim cylinder
- L: Lever
- Key locks and unlocks
- 1-1/4″ mortise cylinder
- Handed, reversible lever
- Electrified lever operation available
- LDT: Lever, rigid – dummy trim
- Pull when dogged (not recommended for fire device)
- LBE: Lever – blank escutcheon
- Always operable (no cylinder)
- Electrified lever operation available
- TL: Turn lever
- Key locks and unlocks; or key unlocks, then relocks when key is removed (use with DT trim)
- 1-1/4″ mortise cylinder
- TLBE: Turn lever – blank escutcheon
- Blank escutcheon always operable (no cylinder, use with DT trim)
Finishes:
- 605 – Bright brass
- 606 – Satin brass
- 612 – Satin bronze
- 619 – Satin nickel
- 625 – Bright chrome
- 626 – Satin chrome
- 628 – Aluminum, anodized
- 630 – Satin stainless steel
- 643e – Aged bronze
- 710 – Dark brown, anodized
- 711 – Matte black
Attributes
Alternate Codes: QELA-75NL-F-626-36, QELA75NLF62636, QELA-75NL-F-626-36-LHR, QELA75NLF62636LHR, VONQELA-75NL-F-626-36
Category: Electrified Panic Devices, Panic Devices & Exit Alarms
Center Line: 3′ 3-13/16″
Certifications: A156.3, ANSI, ANSI/UL 10C, BHMA, UL 305, ULC-S104
Device Width: 36″
Door Application: Panic Devices & Exit Alarms
Door Frame Type: Hollow Metal Frame
Door Thickness: 1-3/4″
Door Type: Hollow Metal
Electrical Option: Electric Latch Retraction
Exit Device Category: Rim Exit
Finish Code: 622, 626, 630
Finish Color: Black, Brushed Chrome, Flat Black, Flat Black Coated, Matte Black, Satin Chrome, Satin Stainless Steel
Fire Rated: Yes
Fire Rating: 180 min
Function: Night Latch
Grade: Grade 1
Handing: Left Handed Reverse
Manufacturer: Von Duprin
Series: 75
Stile Width: Narrow Stile
Strike Type: Fire Rated Rim Strike
