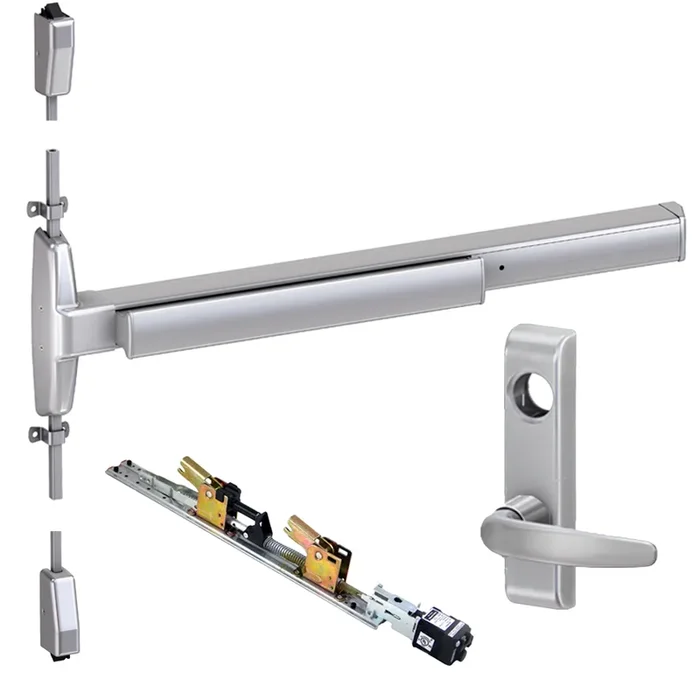

Von Duprin QELA-7527L-626-36-RHR-17 75 Series Narrow Stile QEL SVR Exit Device with 360L-17 Lever Trim, Satin Chrome
Von Duprin QELA-7527L-626-36-RHR-17 KIT is a premium exit device designed for narrow stile doors, offering a combination of security and functionality. This Quiet Electric Latch Retraction (QEL) device is part of the 75 Series, featuring surface vertical rods and is UL listed for panic exit hardware, ensuring compliance with safety regulations. The device’s 36-inch length accommodates doors measuring between 2 feet 6 inches and 4 feet wide, making it versatile for various applications. Engineered for environments where noise minimization is crucial, the QEL allows for electronic control of the exit mechanism, providing mechanical egress at all times. It can be integrated with access systems for seamless operation, enabling momentary unlatching for authorized users. The innovative design includes a deadlocking latch bolt with a 5/8-inch throw, ensuring robust security. With a satin chrome finish (626/US26D) and Grade 1 certification, this device exudes durability and aesthetic appeal. The center case dimensions are 9″ x 1-5/8″ x 2-3/8″, while the pushbar is available in lengths of 18 inches and 24 inches. Optional dogging features, such as hex key or cylinder dogging, further enhance usability. The QELA-7527L is a reliable choice for both commercial and residential applications where safety and quiet operation are paramount.
KIT – 75 Series Narrow Stile QEL (Quiet Electric Latch Retraction), SVR (Surface Vertical Rod) Exit Device, 360L-17 Lever Trim (Selectable Classroom or Storeroom Function) (Requires 1-1/4in Mortise Cylinder), RHR Right Hand Reverse/Reversible Handing (Snap Ring Tool Required), 36in x 84in, No Dogging, Grade 1, 626/US26D Satin Chrome
Notice: The info below is not item specific.
The 7527 surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, grade 1. Vertical rod and latch guards are available to protect the bottom rod of the exit device from damage by impacts of carts or gurneys passing through doors. Quiet electric latch retraction (QEL) provides electronic control of an exit device for environments where limited operational noise is desired. These devices always provide mechanical egress. The electrified latch retraction can also be activated by an access system or building automation system to unlatch the exit device momentarily. Often the QEL is used with a credential reader and access control system to unlock the door momentarily for authorized users. The QEL can also be configured to electronically retract the latch for an extended period of time to allow free entry. This is a convenient alternative to mechanical dogging. If manual dogging required on a panic rated QEL device, the hex dogging option is available, to order specify HD-QEL. The QEL option is available on panic devices and fire rated devices. UL approved for class II circuit applications. The QEL option does not include the power transfer from door to frame, the power supply, or the control operator. Refer to EPT-2 power transfer and the PS902 or 914 power supply. The 900 Series power supply with the 2RS, 4RL or 4R board is the minimum required. Other option boards available for other functions, see 900 Series power supply for additional information. The QEL has a low in rush current, so it can be used with standard Schlage power supplies. Calculate the peak current draw of all devices in the system to determine the required amperage of the supply. The -2RS option board is designed to control two electric latch retraction devices and provide time delay between the firing of outputs is required. The power transfer is also sold separately.
Specifications:
- Device Functions: Device ships EO/DT/NL; field selectable
- Center Case: 9″ x 1-5/8″ x 2-3/8″ (229mm x 41mm x 60mm)
- Device lengths:
- 3′: 2′ 6″ to 3′ (762mm to 914mm) door size
- 4′: 3′ to 4′ (914mm to 1219mm) door size
- Device centerline from finished floor:
- 39-13/16″ (1011mm)
- 39-11/16″ (1008mm) with mullion
- Mechanism Case: 2-5/16″ x 2-1/8″ (59mm x 54mm)
- Latch Bolt: Deadlocking, 5/8″ (15.875mm) throw
- Projection:
- Pushbar neutral – 3-13/16″ (97mm)
- Pushbar depressed – 3-1/16″ (78mm)
- Pushbar Length: 3′ 18″ (457mm), 4′ 24″ (610mm)
- Fasteners and Sex Bolts (SNB): Includes screw pack for 1-3/4″ (4mm) and 2-1/4″ (57mm) thick metal or wood doors (Optional 425 SNB available)
- Electrified Options:
- LX: Latch bolt monitor switch
- RX: Request to exit
- E: Electric locking and unlocking trim; no cylinder override
- ALK: Quiet electric latch retraction
- CON: Allegion Connect
- QEL: Quiet electric latch retraction
- Mechanical Options:
- GBK: Glass bead kit
- LBR: Less bottom rod
- SNB: Sex bolts
- SEC: Security screws
- WH: Weep holes
- Dogging Options:
- Hex key dogging standard
- CD: Cylinder dogging
- LD: Less dogging
- QEL: QEL options available
- Bolt retraction via switch
- Converts exit door to push-pull operation
- Voltage: 24VDC
- Current: 1.0 A inrush (0.5 sec.) / 0.14 A holding
- Strikes:
- 266: Top—dull black
- 248L4 & 304L: Bottom—unfinished
Trim Functions:
- EO: Exit only.
- No outside Trim
- DT: Dummy trim
- Pull when dogged (not recommended for fire device)
- NL: Night latch
- Key retracts latch bolt
- Rim cylinder
- NLOP: Night latch
- Key retracts latch bolt, optional pull required
- Rim cylinder
- L: Lever
- Key locks and unlocks
- 1-1/4″ mortise cylinder
- Handed, reversible lever
- Electrified lever operation available
- LDT: Lever, rigid – dummy trim
- Pull when dogged (not recommended for fire device)
- LBE: Lever – blank escutcheon
- Always operable (no cylinder)
- TL: Turn lever
- Key locks and unlocks; or key unlocks, then relocks when key is removed (use with DT trim)
- 1-1/4″ mortise cylinder
- TLBE: Turn lever – blank escutcheon
- Blank escutcheon always operable (no cylinder, use with DT trim)
Finishes:
- 605 – Bright brass
- 606 – Satin brass
- 612 – Satin bronze
- 619 – Satin nickel
- 625 – Bright chrome
- 626 – Satin chrome
- 628 – Aluminum, anodized
- 630 – Satin stainless steel
- 643e – Aged bronze
- 710 – Dark brown, anodized
- 711 – Matte black
Features
- Projection:
- 39-13/16″ (1011mm)
- Mechanism Case: 2-5/16″ x 2-1/8″ (59mm x 54mm)
- RX: Request to exit
- 4′: 3′ to 4′ (914mm to 1219mm) door size
- Latch Bolt: Deadlocking, 5/8″ (15.875mm) throw
- GBK: Glass bead kit
- LD: Less dogging
- Device Functions: Device ships EO/DT/NL; field selectable
- SNB: Sex bolts
- Pushbar Length: 3′ 18″ (457mm), 4′ 24″ (610mm)
- CON: Allegion Connect
- Converts exit door to push-pull operation
- QEL: Quiet electric latch retraction
- 248L4 & 304L: Bottom—unfinished
- Device lengths:
- Mechanical Options:
- Voltage: 24VDC
- Pushbar neutral – 3-13/16″ (97mm)
- Electrified Options:
- LX: Latch bolt monitor switch
- Current: 1.0 A inrush (0.5 sec.) / 0.14 A holding
- Hex key dogging standard
- Fasteners and Sex Bolts (SNB): Includes screw pack for 1-3/4″ (4mm) and 2-1/4″ (57mm) thick metal or wood doors (Optional 425 SNB available)
- E: Electric locking and unlocking trim; no cylinder override
- Bolt retraction via switch
- 266: Top—dull black
- Strikes:
- ALK: Quiet electric latch retraction
- Pushbar depressed – 3-1/16″ (78mm)
- Dogging Options:
- QEL: QEL options available
- 3′: 2′ 6″ to 3′ (762mm to 914mm) door size
- Device centerline from finished floor:
- SEC: Security screws
- LBR: Less bottom rod
- CD: Cylinder dogging
- Center Case: 9″ x 1-5/8″ x 2-3/8″ (229mm x 41mm x 60mm)
- 39-11/16″ (1008mm) with mullion
- WH: Weep holes
Attributes
Alternate Codes: QELA-7527L-626-36-RHR-17, QELA7527L62636RHR17
Category: Electrified Panic Devices, Panic Devices & Exit Alarms
Center Line: 3′ 3-13/16″
Certifications: A156.3, ANSI, BHMA, UL 305
Device Width: 36″
Door Application: Panic Devices & Exit Alarms
Door Frame Type: Aluminum Frame
Door Thickness: 1-3/4″
Door Type: Aluminum
Electrical Option: Electric Latch Retraction
Exit Device Category: Surface Vertical Rod Exit SVR
Finish Code: 622, 626, 630
Finish Color: Black, Brushed Chrome, Flat Black, Flat Black Coated, Matte Black, Satin Chrome, Satin Stainless Steel
Function: Lever
Grade: Grade 1
Handing: Right Handed Reverse
Lever Design: 17
Manufacturer: Von Duprin
Series: 75
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Stile Width: Narrow Stile
Strike Type: Vertical Rod Bottom Strike, Vertical Rod Top Strike
