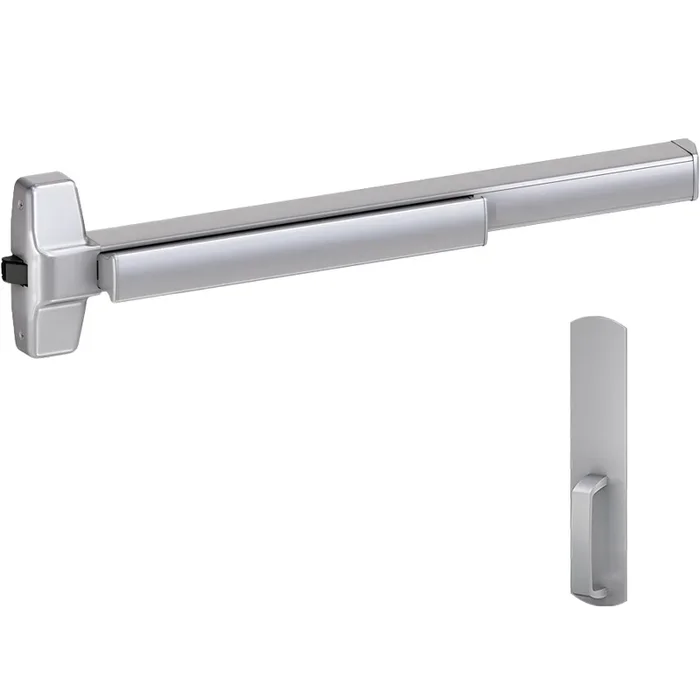

Von Duprin 78DT-F-626-36 KIT 78 Series Wide Stile Fire-Rated Rim Exit Device, 36in, Grade 1, Satin Chrome
Von Duprin 78DT-F-626-36 KIT is a robust and reliable solution for fire-rated environments, featuring a wide stile rim exit device that meets the demanding standards of ANSI/BHMA A156.3 2014, grade 1, and is UL listed for fire exit hardware. Designed for ease of use and enhanced security, this exit device is ideal for both single and double door applications, with lengths customizable to fit 3′ and 4′ door sizes. The 78DT model incorporates a deadlocking latch bolt with a 5/8″ throw, ensuring secure closure while allowing for quick exit in emergencies. With a satin chrome finish, it seamlessly integrates into various architectural styles. This model ships with exit only, dummy trim, and night latch functions, providing versatile installation options. Engineered for durability, the device’s center case dimensions measure 7-7/8″ x 2-3/4″ x 2-3/8″, ensuring a sturdy installation on hollow metal doors with a thickness of 1-3/4″. Additionally, the device features field-reversible handing, making it adaptable to your specific needs. The Von Duprin 78DT-F-626-36 KIT is an exceptional choice for building professionals and homeowners seeking high-quality, fire-rated exit solutions that prioritize safety and accessibility.
KIT – 78 Series Wide Stile Fire-Rated, Rim Exit Device, 785DT Dummy Pull Trim, 36in, No Dogging, Grade 1, 626/US26D Satin Chrome
Notice: The info below is not item specific.
The 78-F rim fire exit devices are certified to ANSI/BHMA A156.3 2014, grade 1 and UL listed for fire exit hardware
Features:
- ANSI/BHMA Grade 1 certified and backed by Allegion services and support
- Available in a wide range of device types, options, lever designs, and finishes
- Available in 3′ and 4′ lengths that are field sizeable for single and double door applications
Specifications:
- Device Functions: Device ships EO/DT/NL; field selectable
- Device lengths:
- 3′: 2′ 6″ to 3′ (762mm to 914mm) door size
- 4′: 3′ to 4′ (914mm to 1219mm) door size
- Device centerline from finished floor:
- 39-13/16″ (1011mm)
- 39-11/16″ (1008mm) with mullion
- Center Case: 7-7/8″ x 2-3/4″ x 2-3/8″ (200mm x 70mm x 60mm)
- Mechanism Case: 2-5/16″ x 2-1/8″ (59mm x 54mm)
- Projection:
- Pushbar neutral – 3-13/16″ (97mm)
- Pushbar depressed – 3-1/16″ (78mm)
- Latch bolt: Deadlocking, 5/8″ (15.875mm) throw
- Pushbar length:
- 3′: 18″ (457mm)
- 4′: 24″ (610mm)
- Fasteners and sex bolts (SNB): Includes screw pack for 1-3/4″ (4mm) and 2-1/4″ (57mm) thick metal or wood doors (Optional 425 SNB available)
- Electrified Options:
- LX: Latch bolt monitor switch
- RX: Request to exit
- E: Electric locking and unlocking trim; no cylinder override
- ALK: Alarm exit kit
- CON: Allegion Connect
- QEL: Quiet electric latch retraction
- Mechanical Options:
- AX: Accessible device
- GBK: Glass bead kit
- SNB: Sex bolts
- SEC: Security screws
- Dogging Options: No mechanical dogging
- Strikes:
- 299F: Dull black
- 499F: Strike with mullions
Trim Functions:
- EO: Exit only.
- No outside Trim
- DT: Dummy trim
- Pull when dogged (not recommended for fire device)
- NL: Night latch
- Key retracts latch bolt
- Rim cylinder
- NLOP: Night latch
- Key retracts latch bolt, optional pull required
- Rim cylinder
- L: Lever
- Key locks and unlocks
- 1-1/4″ mortise cylinder
- Handed, reversible lever
- Electrified lever operation available
- LDT: Lever, dummy trim
- Pull when dogged (not recommended for fire device)
- LNL: Lever, night latch
- Key retracts latch bolt
- 1-1/4″ mortise cylinder
- Handed, reversible lever
- LBE: Lever, blank escutcheon
- Always operable (no cylinder)
- TL: Turn lever
- Key locks and unlocks; or key unlocks, then relocks when key is removed (use with DT trim)
- 1-1/4″ mortise cylinder
- TLBE: Turn lever – blank escutcheon
- Blank escutcheon always operable (no cylinder, use with DT trim)
Finishes:
- 605 – Bright brass
- 606 – Satin brass
- 612 – Satin bronze
- 619 – Satin nickel
- 625 – Bright chrome
- 626 – Satin chrome
- 628 – Anodized aluminum
- 630 – Satin stainless steel
- 643e – Aged bronze
- 710 – Duranodic dark bronze
Attributes
Alternate Codes: 78DT-F-626-36, 78DTF62636
Category: Panic Devices, Panic Devices & Exit Alarms, Rim Panic Devices
Center Line: 3′ 3-13/16″
Certifications: A156.3, ANSI, ANSI/UL 10C, BHMA, UL 305, ULC-S104
Device Width: 36″
Door Application: Panic Devices & Exit Alarms
Door Frame Type: Hollow Metal Frame
Door Thickness: 1-3/4″
Door Type: Hollow Metal
Exit Device Category: Rim Exit
Finish Code: 622, 626, 630
Finish Color: Black, Brushed Chrome, Flat Black, Flat Black Coated, Matte Black, Satin Chrome, Satin Stainless Steel
Fire Rated: Yes
Fire Rating: 180 min
Function: Dummy Trim
Grade: Grade 1
Handing: Field Reversible
Manufacturer: Von Duprin
Series: 78
Stile Width: Wide Stile
Strike Type: Fire Rated Rim Strike
