Description

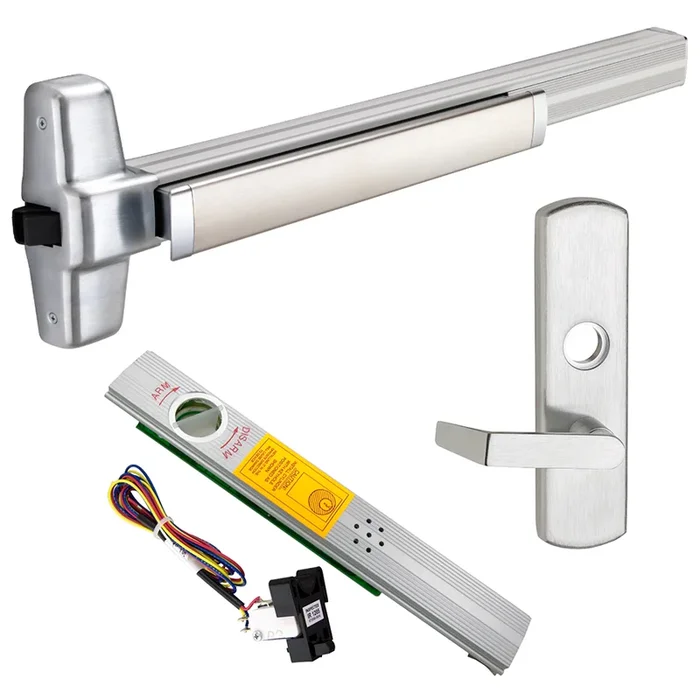

Von Duprin 99L-626-36-LHR 06 ALK Alarmed Rim Exit Device 996L-06 Lever Trim, LHR, 36in, Grade 1, Satin Chrome
Von Duprin 99L-626-36-LHR 06 ALK KIT is an advanced alarmed rim exit device designed for high-traffic environments. This Grade 1 certified unit features a durable satin chrome finish (626/US26D) and is specifically engineered for left-hand reverse or reversible handing applications, making it a versatile choice for both single and double doors. The 99L model boasts a robust design suitable for institutions such as schools, hospitals, and government facilities, ensuring reliable performance even under heavy use. Its modular construction allows for easy upgrades and extensive maintenance options, providing flexibility to adapt to evolving security needs. The built-in alarm exit kit enhances security by alerting users to unauthorized exits, while the device’s deadlocking latch bolt ensures secure closure. Measuring 36 inches in width, the device fits standard door sizes and is equipped with a push bar for effortless operation. The mechanism features a hex key dogging standard for convenience, and various electrical and mechanical options, including a request to exit feature, are available to suit different requirements.With a universal center case that supports future technology migrations, the Von Duprin 99L-626-36-LHR is a reliable choice for modern security solutions.
KIT – Alarmed Rim Exit Device, 996L-06 Lever Trim, LHR Left Hand Reverse/Reversible Handing, 36in, Grade 1, 626/US26D Satin Chrome
Notice: The info below is not item specific.
98 and 99 rim exit devices for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, grade 1. The 98 device has a smooth mechanism case and the 99 device has a grooved case. The rim device is non-handed except when the following device options are used: SD (special dogging), -2 (double cylinder) or SS (signal switch). Covers stock hollow metal doors with 86 or 161 cutouts on single doors (may cover cutouts on pairs – consult template).
Features:
- Built-in flexibility with a universal center case that provides migration path to new technology
- Highly modular allowing product upgrades to meet customer’s changing needs
- Easy maintenance with extensive serviceable parts options
- Modular design allows ability to upgrade device to keep up with changing technology and meet a facility’s changing needs
- Designed for high use and abuse in institutional applications like schools, hospitals and government facilities
- A variety of field-configurable options and retrofit kits available
Specifications:
- Device Functions: Device ships EO/DT/NL; field selectable; for TP, K or L remove NL drive screw from device
- Device Lengths:
- 3′ – 2’4″ to 3′ (711mm to 914 mm) Door size
- 4′ – 2’10” to 4′ (864 mm to 1219 mm) Door size
- Device Centerline from Finished Floor:
- 39-13/16″ (1011 mm)
- 39-11/16″ (1008 mm) with mullion
- Center case dimensions: 8″ x 2 3⁄4″ x 2 3⁄8″ (203mm x 70mm x 60mm)
- Mechanism case dimensions: 2 1⁄4″ x 2 1⁄4″ (57mm x 57mm)
- Projection:
- Push bar neutral – 3-13/16″ (97 mm)
- Push bar depressed – 3-1/16″ (78 mm)
- Latch Bolt: Deadlocking, 3⁄4″ (19mm) throw
- Fasteners and Sex Bolts (SNB): Includes screw pack for 1 3⁄4″ (44mm) and 2 1⁄4″ (57mm) thick metal or wood doors. (optional 425 SNB available)
- Electrical Options:
- LX: Latch bolt monitor switch
- RX: Request to exit
- RX2: Double request to exit
- E: Electric locking and unlocking trim
- EL: Electric latch retraction
- ESL: Emergency secure lockdown
- QEL: Quiet electric latch retraction
- SS: Signal switch
- CX: Chexit delayed exit
- ALK: Alarm exit kit
- WP-RX: Waterproof request to exit
- CON: Allegion Connect
- Mechanical Options:
- -2: Double cylinder
- -2SI: Double cylinder with security indicator
- AX: Accessible device
- GBK: Glass bead kit
- PN: Pneumatic latch retraction
- QM: Quiet mechanical
- SNB: Sex bolts
- SEC: Security screws
- WH: Weep holes
- XP: Extra protection
- Dogging Feature: Hex key dogging standard
- Dogging Options:
- CD: Cylinder dogging
- CD-CX: Chexit cylinder dogging
- CDSI: Cylinder dogging with security indicator
- HDSI: Hex dogging with security indicator
- SD: Special center case dogging
- LD: Less dogging
- DI: Dogging indicator
- CI: Cylinder dogging indicator
- Strikes: 299 – Dull black
Standard Trim:
- EO: No outside trim. Exit only
- DT: Dummy trim. Pull when dogged (not recommended for fire device)
- NL: Night latch
- Key retracts latchbolt
- Rim and 1-1/4″ mortise cylinder
- NLOP: Night latch. Key retracts latchbolt, pull required
- TP: Thumbpiece
- Key locks and unlocks
- Rim and 1-1/4″ mortise cylinder
- TPBE: Thumbpiece, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
- K/L: Knob/Lever
- Key locks and unlocks
- Rim and 1-1/4″ mortise cylinder
- Handed, reversible lever
- Electrified lever operation available
- KDT/LDT: Knob/lever dummy trim. Pull when dogged
- KNL/LNL: Knob/lever, night latch
- Key retracts latchbolt
- Rim and 1-1/4″ mortise cylinder
- Handed, reversible lever
- KBE/LBE: Knob/lever, blank escutcheon. Always operable (no cylinder)
- TL: Turn lever
- Key locks and unlocks (use with DT trim)
- 1-1/4″ mortise cylinder
- TLBE: Turn lever, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
- TLOP: Turn lever, optional pull
- HL: Hospital latch
- Key locks and unlocks
- 1-1/4″ mortise cylinder
Finishes:
- 605 – Bright brass
- 606 – Satin brass
- 612 – Satin bronze
- 625 – Bright chrome
- 626/626AM – Satin chrome
- 628 – Aluminum, anodized
- 710 – Duranodic dark bronze
- 711 – Matte black/anodized
- 643e – Aged bronze
Attributes
Access Type: Alarmed Exit, Request to Exit
Category: Electrified Panic Devices, Panic Devices & Exit Alarms
Certifications: A156.3, ANSI, ANSI/UL 305, BHMA
Device Width: 36″
Door And Lock Sensor: Pushbar Monitor
Door Application: Panic Devices & Exit Alarms
Exit Device Category: Rim Exit
Finish Code: 626
Finish Color: Satin Chrome
Function: Classroom, Lever
Grade: Grade 1
Handing: Left Handed Reverse
Lever Design: 6
Manufacturer: Von Duprin
Series: 98/99
Strike Type: Standard
