Description

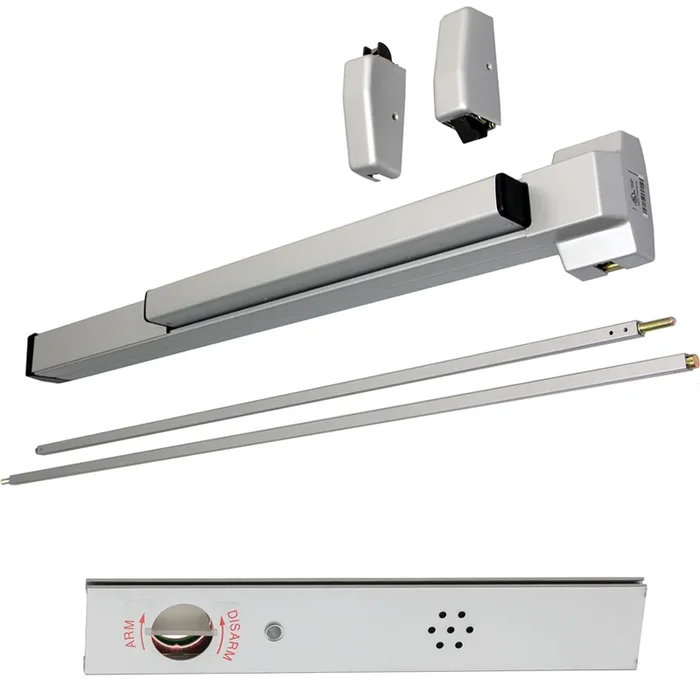

Von Duprin 2227EO-689-36 ALK Alarmed SVR Surface Vertical Rod Exit Device, 36in x 84in, Grade 1, Aluminum
Von Duprin 2227EO-689-36 ALK KIT is an advanced alarmed surface vertical rod exit device designed for both single and double doors. This exit-only device is UL listed for panic exit hardware and meets the stringent requirements of ANSI A156.3 – 2008 Grade 1. Its robust construction fits stock hollow metal doors with 86 or 161 cutouts and accommodates door stiles as narrow as 3 5/8 inches (92 mm). One of the standout features of this device is its non-handed design, which simplifies installation and usability. The 2227EO model ships ready for multiple functions, including exit only (EO), allowing for flexibility in various applications. With a standard height of 7 feet (2134 mm), it includes optional 3-foot extension rods for taller doors, accommodating heights up to 10 feet (3048 mm). The device is equipped with a deadlocking anti-friction latch bolt with a 5/8-inch (16 mm) throw, ensuring reliable security. Additional options such as the alarm exit kit (ALK) enhance security further, making it an ideal choice for high-traffic areas. With its sleek powder-coated aluminum finish, this device not only performs well but looks great, providing peace of mind without compromising aesthetics.
KIT – Alarmed SVR Surface Vertical Rod Exit Device, Exit Only No Trim, 36in x 84in, Grade 1, 689/SP28 Powder-Coated Aluminum
Notice: The info below is not item specific.
2227 Surface mounted vertical rod exit device for all types of single and double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. Fits door stiles as narrow as 3 5/8″ (92 mm). The device is non-handed.
Features:
- Available for rim and surface-mounted vertical applications
- Several trim and electronic options
- Non-handed design
Specifications:
- Device Functions: Ships ready for all functions, EO, DT, NL, TP, K, L
- Device Lengths:
- 3′ (914 mm) see minimum door opening chart in cut sheet
- 4′ (1219 mm) see minimum door opening chart in cut sheet
- Door Height: 7′ (2134 mm) standard door height. Note: 3′ extension rods available for door heights up to 10′ (3048 mm).
- Device Centerline From Finished Floor: 39 13⁄16″ (1011 mm)
- Center Case Dimensions: 4 5⁄32″ (105 mm) x 3 3⁄16″ (81 mm) x 2 3⁄8″ (60 mm)
- Mechanism Case Dimensions: 2″ (51 mm) x 2 3/8″ (60 mm)
- Projection: Push bar neutral – 3 11/16″ (94 mm) push bar depressed – 2 7/8″ (73 mm)
- Latch Bolt: Deadlocking anti-friction top and bottom bolt, 5⁄8″ (16 mm) throw
- Fasteners and Through Bolts (SNB): Includes screw pack for 1 3/4″ (44 mm) and 2 1/4″ (57 mm) wood and metal doors; optional SNB available for device
- Electrified Options:
- ALK: Alarm exit kit
- CON: Allegion Connect
- LX: Latch bolt monitor switch
- LX-LC: Latch bolt monitoring, low current
- LX-RX: Latch bolt monitoring, request to exit
- LX-RX-LC: Latch bolt monitoring, request to exit low current
- QEL: Quiet electric latch retraction
- RX: Request to exit
- RX2: Double request to exit
- WP-RX: Waterproof request to exit
- Mechanical options:
- GBK: Glass bead kit
- HW: Hurricane device — Wind-Only
- PL: Pullman latch
- LBR: Less bottom rod
- AX: Accessible device, LBR only
- Dogging Feature: Hex key dogging standard
- Dogging Options: LD: less dogging, QEL option available
- Strikes:
- Top: 299 – Dull black
- Bottom: 248L4 and 304L – Unfinished
Minimum Door Opening for 3′ Device:
- 25.875″ (657 mm):
- Stop height: 1⁄2″
- Single door: Yes
- Double door: Vert. x Vert.
- 26.000″ (664 mm):
- Stop height: 5⁄8″
- Single door: Yes
- Double door: Vert. x Vert.
Standard Trim:
- EO: No outside trim
- Exit only
- ANSI: 01
- DT: Dummy Trim
- Trim : 210DT
- Pull when dogged (not recommended for fire device)
- Escutcheon Plate Size: 5-3/8″ x 4-25/32″ x 3/32″ (137 x 121 x 2 mm)
- Projection: 1-31/32″ (42 mm)
- ANSI: 02
- NL: Night latch
- Trim : 210NL
- Key retracts latchbolt
- Rim and 1-1/4″ mortise cylinder
- Escutcheon Plate Size: 5-3/8″ x 4-25/32″ x 3/32″ (137 x 121 x 2 mm)
- Projection: 1-31/32″ (42 mm)
- ANSI: 03
- NL-OP: Night latch
- Trim : 110NL-MD, 110NL-WD
- Key retracts latchbolt, pull required
- ANSI: 03
- Cylinder Type: Rim
- TP: Thumbpiece
- Trim : 230TP
- Key locks and unlocks
- Rim and 1-1/4″ mortise cylinder
- Escutcheon Plate Size: 3″ x 12-1/16″ x 3/32″ (76 x 306 x 2 mm)
- Pull Center to Center: 5-1/2″ (140 mm)
- Projection: 2″ (51 mm)
- ANSI: 05
- K: Knob
- Trim : 2227K
- Key locks and unlocks
- Rim and 1-1/4″ mortise cylinder
- Handed, reversible lever
- Electrified lever operation available
- Escutcheon Plate Size: 3″ x 4-25/32″ x 3/32″ (76 x 121 x 2 mm)
- Projection: 2-15/16″ (75 mm)
- ANSI Function: 08
- L: Lever
- Trim : 2227L
- Key locks and unlocks
- Rim and 1-1/4″ mortise cylinder
- Handed, reversible lever
- Electrified lever operation available
- Escutcheon Plate Size: 3″ x 6-3/8″ x 15/16″ (76 x 162 x 24 mm)
- Projection: 2-5/8″ (67 mm)
- ANSI Function: 08
Finishes:
- 526 – Powder coated chrome
- 622 – Powder coated matte black
- 689 – Powder coated aluminum
- 695 – Powder coated dark bronze
Attributes
Alternate Codes: 2227EO-689-36 ALK, 2227EO68936ALK
Category: Panic Devices, Panic Devices & Exit Alarms, SVR Panic Devices
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
