Description

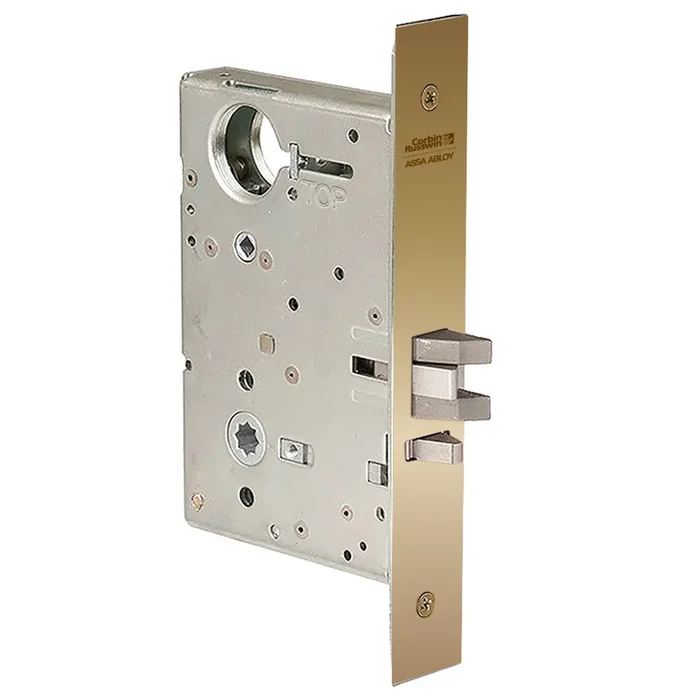

Corbin Russwin ML2002 LL 612 LC KIT Classroom Intruder Mortise Lock Body, ANSI Strike Plate, Grade 1, Satin Bronze
Corbin Russwin ML2002 LL 612 LC KIT is a robust classroom intruder mortise lock body designed for high-traffic environments where security and durability are paramount. This ANSI/BHMA Grade 1 lock features a field-reversible handing, allowing for easy installation and adaptability without the need for disassembly. The lock includes an ANSI strike plate and an armored front, enhancing its resilience against intrusion attempts. Constructed from heavy-gauge steel, the ML2002 ensures long-lasting performance in demanding settings, making it an excellent choice for educational institutions and commercial properties. Its direct drive performance guarantees consistent torque during lever rotation, while the crisp lever return eliminates any sagging, providing a reliable user experience. The lock is available in a sophisticated satin bronze finish (612/US10), blending seamlessly with various architectural styles. Its flexible design integrates with existing Corbin Russwin key systems, and it supports a wide range of mechanical and electrified functions. With a ten-year limited warranty, this mortise lock stands out for its innovative design and lower total cost of ownership, exceeding ANSI/BHMA Grade 1 requirements. Ideal for bullet-resistant, wood, or hollow metal doors, the Corbin Russwin ML2002 LL 612 LC KIT is the perfect solution for enhancing security in any building.
KIT – Classroom Intruder Mortise Lock Body, Includes ANSI Strike Plate and Armored Front, Handing is Field Reversible, No Deadbolt, No Trim, Grade 1, 612/US10 Satin Bronze
Notice: The info below is not item specific.
The ML2000 Series is an ANSI/BHMA Grade 1 mortise lock designed to meet the rigors of high-traffic, abusive environments. Constructed of heavy-gauge steel with unique, patented features and a full range of functions including status indicators and trim, the versatility and reliability of this lock complement any application. Corbin Russwin’s status indicator options offer a unique and highly visible window design and provides clarity on the locked/unlocked status of a door. Available for use with a wide range of trim options and with a variety of functions, the mortise lock status indicators are versatile for any application.
Features:
- Direct drive performance for consistent torque and force during lever rotation
- Lever return is crisp and firm – eliminating lever sag
- Available in 63 mechanical and electrified functions, including 2 vandal resistant and 4 behavioral health options, 61 standard and Muséo Line decorative lever designs and 16 finishes
- Integrates with new or existing Corbin Russwin key systems, including patented/high security Access 3® and Pyramid
- Integrates with access control platforms
- Utilizes EcoFlex®️ technology on all electromechanical functions, creating up to 89% energy savings
- Occupancy indicators available
- Ten-year warranty
Benefits:
- Innovative Design: Optimized torsion spring design and fewer moving parts give the lock extremely smooth and consistent operations
- Flexible: Field reversible latchbolt makes it easy to re-hand without disassembling the lock case
- Safe and Secure: Withstands intrusion attempts and abuse, featuring specialized security trim and components
- Lower Total Cost of Ownership: Far exceeds ANSI/BHMA Grade 1 requirements ensuring durability and longevity
- Sustainable: Environmental product declaration (EPD) in accordance with ISO14025
Specifications:
- ANSI/BHMA Code: A156.13
- Backset Depth (Standard): 2 3/4″
- Cylinder Format: Conventional, Large Format, Small Format
- Cylinder Pins: 6 pin, 7 pin
- Door Thickness (Standard): 1 3/4″
- Door Type: Bullet-Resistant Doors, Wood, Hollow Metal
- Handing: Field Reversible
- Latchbolt Throw: 3/4″
- Maximum Backset: 2 3/4″
- Maximum Door Thickness: 4″
- Minimum Backset: 2 3/8″
- Minimum Door Thickness: 1 3/8″
- Number of Keys: 2
- Strike Type (Standard): ANSI Straight Lip
- UL Listed: Yes
- Warranty: 10-year limited warranty
Finishes:
- 605 – Bright Brass
- 606 – Satin Brass
- 611 – Bright Bronze
- 612 – Satin Bronze
- 613 – Dark Oxidized Satin Bronze, Oil Rubbed
- 613E – Dark Oxidized Satin Bronze, Equivalent
- 613L – Dark oxidized satin bronze, clear coated
- 618 – Bright Nickel Plated
- 619 – Satin Nickel Plated
- 619C – Satin nickel plated with MicroShield
- 625 – Bright Chromium Plated
- 626 – Satin Chromium Plated
- 626C – Satin Chromium Plated with MicroShield
- 629 – Bright Stainless Steel
- 630 – Satin Stainless Steel
- 630C – Satin stainless steel with MicroShield
- 722 – Black Oxidized Bronze, Oil Rubbed
- BSP – Black suede powder coated/sprayed
- WSP – White suede powder coated/sprayed
Attributes
Alternate Codes: CORML2002 LL 612 SS118, CORML2002 LL 612 SS118 LC, ML2002 LL 612 LC, ML2002LL612LC, ML2002 LL 612 SS118, ML2002LL612SS118, ML2002 LL 612 SS118 LC, ML2002LL612SS118LC
Category: Lock Sets, Mortise Lock Body, Mortise Locks
Cylinder Type: Less Cylinder
Door Application: Mortise Locks
Finish Code: 612
Finish Color: Satin Bronze, Satin/LT Bronze
Function: Classroom Intruder
Series: ML2000
Spindle Type: Lever x Lever
