Description

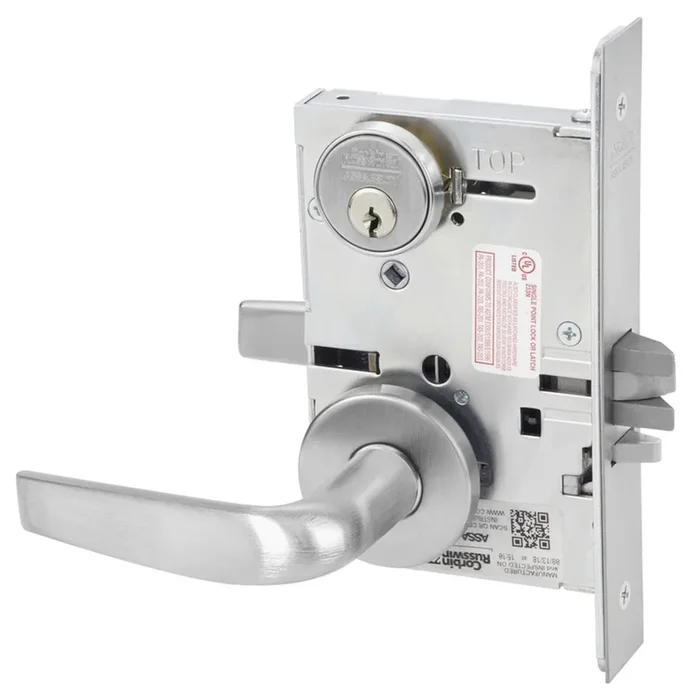

Corbin Russwin ML2003 CSA 626 L4 KIT – Classroom Mortise Lock, Citation Lever, Satin Chrome, Field Reversible
Corbin Russwin ML2003 CSA 626 L4 KIT is a robust classroom mortise lock designed for high-traffic environments while ensuring security and ease of use. Constructed from heavy-gauge steel, this ANSI/BHMA Grade 1 lock provides durability and reliability, essential for schools and public spaces. The lock features the Citation lever with an A Rose trim and is finished in a sleek satin chrome (626) that complements any décor. With a field-reversible handing, installation is straightforward, allowing flexibility to adapt to various door configurations without disassembly. The standard 1-1/8 mortise cylinders and L4 keyway enhance security, while the ANSI strike SS118 ensures compatibility with existing door frames. The lock also integrates seamlessly with Corbin Russwin key systems and access control platforms, offering versatility in security management. Key benefits include its innovative direct drive performance, which guarantees consistent torque during lever operation, and a crisp lever return that eliminates sag. The lock is equipped with occupancy indicators for added functionality and is designed to withstand intrusion attempts, making it a safe choice for any application. Backed by a ten-year limited warranty, the Corbin Russwin ML2003 offers a sustainable and cost-effective solution for your security needs.
KIT – Classroom Mortise Lock, Citation Lever with A Rose Trim, Standard 1-1/8 Mortise Cylinders, A01 Clover Cam, L4 Keyway 0-Bit, Handing is Field Reversible, ANSI Strike SS118, 626/US26D Satin Chrome
Notice: The info below is not item specific.
The ML2000 Series is an ANSI/BHMA Grade 1 mortise lock designed to meet the rigors of high-traffic, abusive environments. Constructed of heavy-gauge steel with unique, patented features and a full range of functions including status indicators and trim, the versatility and reliability of this lock complement any application. Corbin Russwin’s status indicator options offer a unique and highly visible window design and provides clarity on the locked/unlocked status of a door. Available for use with a wide range of trim options and with a variety of functions, the mortise lock status indicators are versatile for any application.
Features:
- Direct drive performance for consistent torque and force during lever rotation
- Lever return is crisp and firm – eliminating lever sag
- Available in 63 mechanical and electrified functions, including 2 vandal resistant and 4 behavioral health options, 61 standard and Muséo Line decorative lever designs and 16 finishes
- Integrates with new or existing Corbin Russwin key systems, including patented/high security Access 3® and Pyramid
- Integrates with access control platforms
- Utilizes EcoFlex®️ technology on all electromechanical functions, creating up to 89% energy savings
- Occupancy indicators available
- Ten-year warranty
Benefits:
- Innovative Design: Optimized torsion spring design and fewer moving parts give the lock extremely smooth and consistent operations
- Flexible: Field reversible latchbolt makes it easy to re-hand without disassembling the lock case
- Safe and Secure: Withstands intrusion attempts and abuse, featuring specialized security trim and components
- Lower Total Cost of Ownership: Far exceeds ANSI/BHMA Grade 1 requirements ensuring durability and longevity
- Sustainable: Environmental product declaration (EPD) in accordance with ISO14025
Specifications:
- ANSI/BHMA Code: A156.13
- Backset Depth (Standard): 2 3/4″
- Cylinder Format: Conventional, Large Format, Small Format
- Cylinder Pins: 6 pin, 7 pin
- Door Thickness (Standard): 1 3/4″
- Door Type: Bullet-Resistant Doors, Wood, Hollow Metal
- Handing: Field Reversible
- Latchbolt Throw: 3/4″
- Maximum Backset: 2 3/4″
- Maximum Door Thickness: 4″
- Minimum Backset: 2 3/8″
- Minimum Door Thickness: 1 3/8″
- Number of Keys: 2
- Strike Type (Standard): ANSI Straight Lip
- UL Listed: Yes
- Warranty: 10-year limited warranty
Finishes:
- 605 – Bright Brass
- 606 – Satin Brass
- 611 – Bright Bronze
- 612 – Satin Bronze
- 613 – Dark Oxidized Satin Bronze, Oil Rubbed
- 613E – Dark Oxidized Satin Bronze, Equivalent
- 613L – Dark oxidized satin bronze, clear coated
- 618 – Bright Nickel Plated
- 619 – Satin Nickel Plated
- 619C – Satin nickel plated with MicroShield
- 625 – Bright Chromium Plated
- 626 – Satin Chromium Plated
- 626C – Satin Chromium Plated with MicroShield
- 629 – Bright Stainless Steel
- 630 – Satin Stainless Steel
- 630C – Satin stainless steel with MicroShield
- 722 – Black Oxidized Bronze, Oil Rubbed
- BSP – Black suede powder coated/sprayed
- WSP – White suede powder coated/sprayed
Attributes
Alternate Codes: ML2003 CSA 626 L4, ML2003CSA626L4
Category: Lock Sets, Mortise Locks, Mortise Lock Sets
Door Application: Mortise Locks
Finish Code: 626
Finish Color: Brushed Chrome, Satin Chrome
Function: Classroom
Keying: 0-Bitted
Keyway: Corbin L4
Lever Design: Citation
Material: Cast
Rose/ Escutcheon: A Rose
Series: ML2000
