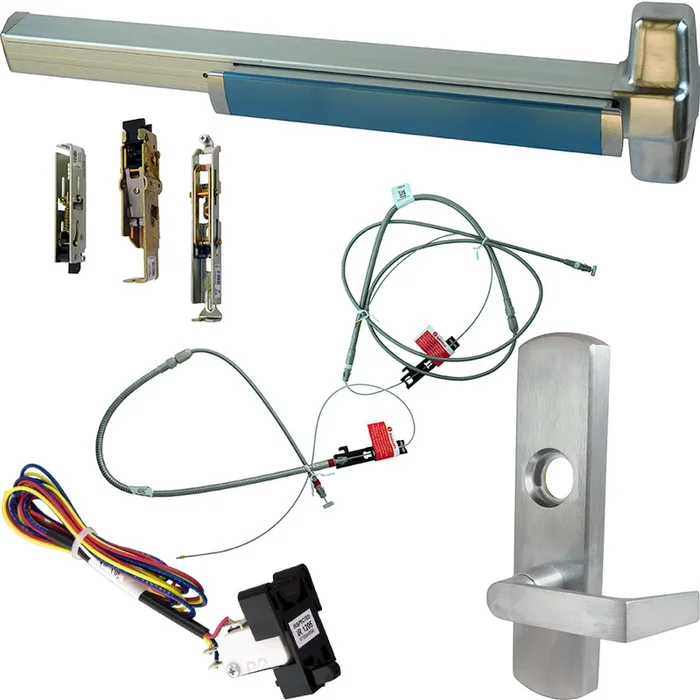

Von Duprin RX-9949L-626-48-RHR-06 CVC Grooved Exit Device Kit with RX Switch, 996L-06 Lever Trim, Satin Chrome
Von Duprin RX-9949L-626-48-RHR-06 KIT is a sophisticated concealed vertical cable exit device designed for reliable and secure panic exit functionality on single or metal doors. This Grade 1 device meets stringent ANSI A156.3 – 2001 standards and is UL listed for panic exit hardware, ensuring safety and durability in high-traffic environments. The RX-9949L features a grooved mechanism case and is equipped with a RX (Request to Exit) switch, making it an ideal choice for commercial settings where quick egress is essential. It supports door sizes ranging from 48 inches to up to 96 inches high and is suitable for doors with a thickness of 1-3/4 inches. The device’s finished satin chrome exterior provides a modern aesthetic while ensuring long-lasting performance. With a deadlocking top and bottom bolt offering a 1/2-inch throw, this exit device provides enhanced security. The vertical cable, made of stainless steel, guarantees reliability under heavy use. Its non-handed design simplifies installation, while the hex dogging feature allows for easy operation. The RX-9949L is versatile, with multiple electrical and mechanical options available to cater to various security needs. Enhance your building’s safety with the Von Duprin RX-9949L-626-48-RHR-06 KIT, a trusted solution for panic exit applications.
KIT – CVC (Concealed Vertical Cable) Grooved Exit Device, RX (Request to Exit Switch), 996L-06 Lever Trim (Requires Rim Cylinder), RHR Right Hand Reverse/Reversible Handing (Snap Ring Tool Required), 48in x Up to 96in, Hex Dogging, Grade 1, 626/US26D Satin Chrome
Notice: The info below is not item specific.
9849/9949 Concealed vertical cable device for use on single or metal doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2001 grade 1. The 9849 device has a smooth mechanism case and the 9949 device has a grooved case. The concealed vertical cable device is non-handed except when the following device options are used: SD (special dogging), or SS (signal switch).
Specifications:
- Device Functions: Device ships EO/DT/NL; field selectable; for TP, K or L remove NL drive screw from device
- Device Lengths:
- 2′ 2′ (610mm) Door size
- 3′ 2’4′ to 3′ (711mm to 914 mm) Door size
- 4′ 2’10” to 4′ (864 mm to 1219 mm) Door size
- Device Centerline from Finished Floor: 39 5/8″ (1006 mm) standard
- Center Case: 8″ x 2-3/4″ x 2-3/8″ (203mm x 70mm x 60mm)
- Mechanism Case: 2-1⁄4″ x 2-1⁄4″ (57mm x 57mm)
- Projection:
- Push bar neutral – 3-13/16″ (97 mm)
- Push bar depressed – 3-1/16″ (78 mm)
- Latch Bolt: Deadlocking top & bottom bolt, 1/2″ (13mm) throw
- Door Undercut: 3/4″ (19mm) maximum. (24231516 spacer block kit needed for 3⁄4″ undercut)
- Top & Bottom Latch Case: 5-13/16″ x 1-1/4″ x 1-7/16″ (147mm x 32mm x 37mm)
- Vertical Cable: 7/32″ (6mm) Diameter stainless steel cables
- Fasteners & Sex Bolts (SNB): Includes screw pack for 1-3/4″ (44mm) and 2-1/4″ (57mm) thick metal doors. Optional 425 SNB available
- Electrical Options:
- LX: Latch bolt monitor switch. For 98/9949 devices, LX switch monitors trim input or electric dogging of EL/QEL devices. LX switch does not monitor latch bolt condition.
- RX: Request to exit
- RX2: Double request to exit
- E: Electric locking and unlocking trim
- EL: Electric latch retraction
- ESL: Emergency secure lockdown
- QEL: Quiet electric latch retraction
- SS: Signal switch
- CX: Chexit delayed exit
- ALK: Alarm exit kit
- WP-RX: Waterproof request to exit
- CON: Allegion Connect
- Mechanical Options:
- -2: Double cylinder
- -2SI: Double cylinder with security indicator
- AX: Accessible device
- GBK: Glass bead kit
- LBL: Less bottom latch
- PN: Pneumatic latch retraction
- SG: Safety glow
- SNB: Sex bolts
- SEC: Security screws
- WH: Weep holes
- Dogging Features: No mechanical dogging; QEL options available
- Dogging Options:
- CD: Cylinder dogging
- CD-CX: Chexit cylinder dogging
- CDSI: Cylinder dogging with security indicator
- HDSI: Hex dogging with security indicator
- SD: Special center case dogging
- LD: Less dogging
- DI: Dogging indicator
- CI: Cylinder dogging indicator
- Strikes:
- Top – 249 – Unfinished
- Bottom – 349 – Unfinished
Standard Trim:
- EO: No outside trim. Exit only
- DT: Dummy trim. Pull when dogged (not recommended for fire device)
- NL: Night latch
- Key retracts latchbolt
- Rim and 1-1/4″ mortise cylinder
- NLOP: Night latch. Key retracts latchbolt, pull required
- TP: Thumbpiece
- Key locks and unlocks
- Rim and 1-1/4″ mortise cylinder
- TPBE: Thumbpiece, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
- K/L: Knob/Lever
- Key locks and unlocks
- Rim and 1-1/4″ mortise cylinder
- Handed, reversible lever
- Electrified lever operation available
- KDT/LDT: Knob/lever dummy trim. Pull when dogged
- KNL/LNL: Knob/lever, night latch
- Key retracts latchbolt
- Rim and 1-1/4″ mortise cylinder
- Handed, reversible lever
- KBE/LBE: Knob/lever, blank escutcheon. Always operable (no cylinder)
- TL: Turn lever
- Key locks and unlocks (use with DT trim)
- 1-1/4″ mortise cylinder
- TLBE: Turn lever, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
- TLOP: Turn lever, optional pull
- HL: Hospital latch
- Key locks and unlocks
- 1-1/4″ mortise cylinder
Finishes:
- 605 – Bright brass
- 606 – Satin brass
- 612 – Satin bronze
- 625 – Bright chrome
- 626/626AM – Satin chrome
- 628 – Aluminum, anodized
- 710 – Duranodic dark bronze
- 711 – Matte black/anodized
- 643e – Aged bronze
Features
- Mechanism Case: 2-1⁄4″ x 2-1⁄4″ (57mm x 57mm)
- GBK: Glass bead kit
- -2SI: Double cylinder with security indicator
- DI: Dogging indicator
- -2: Double cylinder
- PN: Pneumatic latch retraction
- 3′ 2’4′ to 3′ (711mm to 914 mm) Door size
- CD-CX: Chexit cylinder dogging
- WP-RX: Waterproof request to exit
- SG: Safety glow
- E: Electric locking and unlocking trim
- SS: Signal switch
- CI: Cylinder dogging indicator
- ESL: Emergency secure lockdown
- Push bar depressed – 3-1/16″ (78 mm)
- Electrical Options:
- Strikes:
- 4′ 2’10” to 4′ (864 mm to 1219 mm) Door size
- LBL: Less bottom latch
- Center Case: 8″ x 2-3/4″ x 2-3/8″ (203mm x 70mm x 60mm)
- Fasteners & Sex Bolts (SNB): Includes screw pack for 1-3/4″ (44mm) and 2-1/4″ (57mm) thick metal doors. Optional 425 SNB available
- SEC: Security screws
- Device Functions: Device ships EO/DT/NL; field selectable; for TP, K or L remove NL drive screw from device
- Projection:
- RX: Request to exit
- LD: Less dogging
- ALK: Alarm exit kit
- AX: Accessible device
- Push bar neutral – 3-13/16″ (97 mm)
- 2′ 2′ (610mm) Door size
- EL: Electric latch retraction
- Door Undercut: 3/4″ (19mm) maximum. (24231516 spacer block kit needed for 3⁄4″ undercut)
- SNB: Sex bolts
- CON: Allegion Connect
- LX: Latch bolt monitor switch. For 98/9949 devices, LX switch monitors trim input or electric dogging of EL/QEL devices. LX switch does not monitor latch bolt condition.
- QEL: Quiet electric latch retraction
- Dogging Features: No mechanical dogging; QEL options available
- Mechanical Options:
- Top – 249 – Unfinished
- Device Lengths:
- CDSI: Cylinder dogging with security indicator
- Device Centerline from Finished Floor: 39 5/8″ (1006 mm) standard
- CX: Chexit delayed exit
- Bottom – 349 – Unfinished
- Vertical Cable: 7/32″ (6mm) Diameter stainless steel cables
- Dogging Options:
- HDSI: Hex dogging with security indicator
- SD: Special center case dogging
- Latch Bolt: Deadlocking top & bottom bolt, 1/2″ (13mm) throw
- CD: Cylinder dogging
- RX2: Double request to exit
- Top & Bottom Latch Case: 5-13/16″ x 1-1/4″ x 1-7/16″ (147mm x 32mm x 37mm)
- WH: Weep holes
Attributes
Ship via: No UPS – Common Carrier Only
Access Type: Request to Exit
Alternate Codes: RX-9949L-626-48-RHR-06, RX9949L62648RHR06
Category: Commercial Electric Locks, CVR Panic Devices, Electric Locks, Glass Aluminum Hardware, Lock Sets, Narrow Style Electric Locks, Narrow Style Panic Devices, Panic Devices, Panic Devices & Exit Alarms, Standalone/Pushbutton Locks
Center Line: 3′ 3-5/8″
Certifications: A156.3, ANSI, ANSI/UL 305, BHMA
Device Width: 48″
Door And Lock Sensor: Pushbar Monitor
Door Application: Panic Devices & Exit Alarms
Door Frame Type: Hollow Metal Frame
Door Height: 82-96″
Door Thickness: 1-3/4″
Door Type: Hollow Metal
Exit Device Category: Concealed Vertical Cable Exit CVC
Finish Code: 626
Finish Color: Brushed Chrome, Satin Chrome
Function: Classroom, Lever
Grade: Grade 1
Handing: Right Handed Reverse
Lever Design: 6
Manufacturer: Von Duprin
Series: 98/99
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Strike Type: Vertical Rod Top Strike
