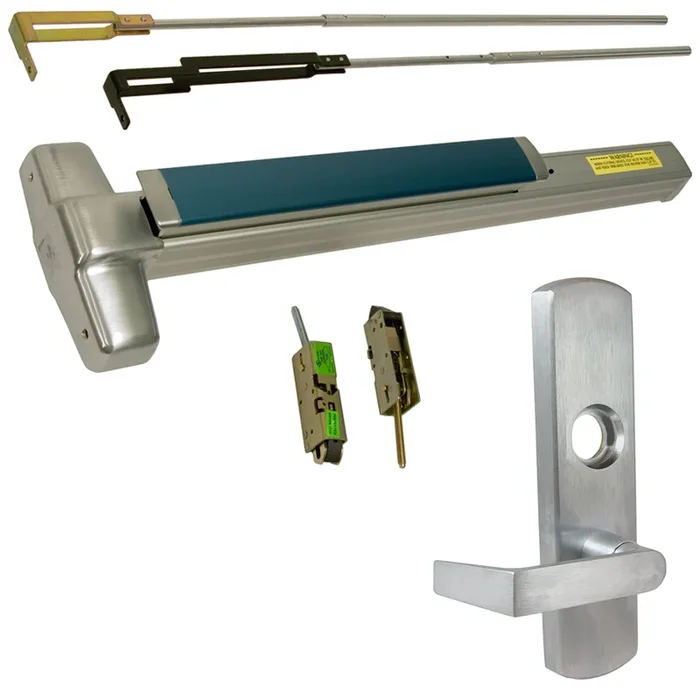

Von Duprin 9847L-626-48-LHR-06 KIT – CVR Smooth Exit Device, 996L-06 Lever Trim, LHR, Grade 1, Satin Chrome
Von Duprin 9847L-626-48-LHR-06 KIT is a robust concealed vertical rod exit device designed for seamless integration with single or double metal doors. This UL-listed panic exit hardware meets ANSI A156.3 – 2008 grade 1 standards, ensuring reliability and security. With a smooth mechanism case and a sleek satin chrome finish, this device not only enhances safety but also complements modern architectural aesthetics. This exit device features a flexible design that accommodates door sizes ranging from 2 feet to 4 feet wide, and can operate on doors up to 96 inches high. The adjustable centerline from the finished floor makes installation straightforward, while the deadlocking top and bottom bolts provide added security with a 5/8″ throw. The vertical rods are two-piece and adjustable, making it suitable for a variety of door heights. Additionally, the 9847 model offers hex key dogging as standard, with options for cylinder dogging and other features. It is engineered for left-hand reverse handing, ensuring optimal functionality in a range of commercial environments. Whether for educational facilities, office buildings, or public spaces, the Von Duprin 9847L-626-48-LHR-06 KIT is an ideal choice for professionals seeking a reliable and secure exit solution.
KIT – CVR (Concealed Vertical Rod) Smooth Exit Device, 996L-06 Lever Trim (Requires Rim Cylinder), LHR Left Hand Reverse/Reversible Handing (Snap Ring Tool Required), 48in x Up to 96in, Hex Dogging, Grade 1, 626/US26D Satin Chrome
Notice: The info below is not item specific.
9847/9947 Concealed vertical rod device for use on single or double metal doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 grade 1. The 9847 device has a smooth mechanism case and the 9947 device has a grooved case. The concealed vertical rod device is non-handed except when the following device options are used: SD (special dogging), or SS (signal switch).
Specifications:
- Device Functions: Device ships EO/DT/NL; Field selectable; For TP, K or L remove NL drive screw from device.
- Device Lengths:
- 2″ – 2″ (610 mm) Door size (shipped less UL label)
- 3″ – 2″4″ to 3″ (711mm to 914 mm) Door size
- 4″ – 2″10″ to 4″ (864 mm to 1219 mm) Door size
- Device Centerline from Finished Floor: 39 5/8″ (1006 mm) Standard adjustable from 35 5/8″ (905mm) to 49 5/8″ (1260mm)
- Center Case: 8″ x 2-3/4″ x 2-3/8″ (203mm x 70mm x 60mm)
- Mechanism Case: 2-1/4″ x 2-1/4″ (57mm x 57mm)
- Projection:
- Push bar neutral – 3-13/16″ (97 mm)
- Push bar depressed – 3-1/16″ (78 mm)
- Latch bolt: Deadlocking top & bottom bolt, 5/8″ (16mm) throw
- Door undercut: 1/4″ (7mm) recommended
- Top and Bottom Latch Case: 4 1/2″ x 2 1/8″ x 1 1/2″ (114mm x 54mm x 38mm)
- Vertical Rods: Round 2-piece adjustable rods – Top rod adjustable from 6’8″ (2027mm) to 8’4″(2533mm). Bottom rod adjustable 35 5/8″ (905 mm) to 49 5/8″ (1260 mm). Extension rod kits available for doors over 8’4″ (2533mm).
- Fasteners & Sex Bolts (SNB): Includes screw pack for 1 3/4″ (44mm) to 2 1/4″ (57mm) thick metal doors. Optional 425 SNB available.
- Electrical Options:
- LX: Latch bolt monitor switch
- RX: Request to exit
- RX2: Double request to exit
- E: Electric locking and unlocking trim
- EL: Electric latch retraction
- ESL: Emergency secure lockdown
- QEL: Quiet electric latch retraction
- SS: Signal switch
- CX: Chexit delayed exit
- ALK: Alarm exit kit
- WP-RX: Waterproof request to exit
- CON: Allegion Connect
- Mechanical Options:
- -2: Double cylinder
- -2SI: Double cylinder with security indicator
- GBK: Glass bead kit
- LBR: Less bottom rod
- PL: Pullman latch
- PN: Pneumatic latch retraction
- SNB: Sex bolts
- SEC: Security screws
- WH: Weep holes
- Dogging feature: Hex key dogging standard
- Dogging options:
- CD: Cylinder dogging
- CD-CX: Chexit cylinder dogging
- CDSI: Cylinder dogging with security indicator
- HDSI: Hex dogging with security indicator
- SD: Special center case dogging
- LD: Less dogging
- DI: Dogging indicator
- CI: Cylinder dogging indicator
- Strikes:
- Top – 338 – Unfinished
- Bottom – 385A – Unfinished
Standard Trim:
- EO: No outside trim. Exit only
- DT: Dummy trim. Pull when dogged (not recommended for fire device)
- NL: Night latch
- Key retracts latchbolt
- Rim and 1-1/4″ mortise cylinder
- NLOP: Night latch. Key retracts latchbolt, pull required
- TP: Thumbpiece
- Key locks and unlocks
- Rim and 1-1/4″ mortise cylinder
- TPBE: Thumbpiece, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
- K/L: Knob/Lever
- Key locks and unlocks
- Rim and 1-1/4″ mortise cylinder
- Handed, reversible lever
- Electrified lever operation available
- KDT/LDT: Knob/lever dummy trim. Pull when dogged
- KNL/LNL: Knob/lever, night latch
- Key retracts latchbolt
- Rim and 1-1/4″ mortise cylinder
- Handed, reversible lever
- KBE/LBE: Knob/lever, blank escutcheon. Always operable (no cylinder)
- TL: Turn lever
- Key locks and unlocks (use with DT trim)
- 1-1/4″ mortise cylinder
- TLBE: Turn lever, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
- TLOP: Turn lever, optional pull
- HL: Hospital latch
- Key locks and unlocks
- 1-1/4″ mortise cylinder
Finishes:
- 605 – Bright Brass
- 606 – Satin Brass
- 612 – Satin Bronze
- 613 – Satin Bronze-Oil Rubbed
- 625 – Bright Chrome
- 626 – Satin Chrome
- 626-AM – Satin chrome, Antimicrobial coating
- 643e – Aged Bronze
- 693 – Painted Black
- 721 – Bright Brass
- 728 – Satin Brass
Features
- Top – 338 – Unfinished
- GBK: Glass bead kit
- -2SI: Double cylinder with security indicator
- DI: Dogging indicator
- -2: Double cylinder
- PN: Pneumatic latch retraction
- Latch bolt: Deadlocking top & bottom bolt, 5/8″ (16mm) throw
- CD-CX: Chexit cylinder dogging
- Center Case: 8″ x 2-3/4″ x 2-3/8″ (203mm x 70mm x 60mm)
- WP-RX: Waterproof request to exit
- E: Electric locking and unlocking trim
- SS: Signal switch
- CI: Cylinder dogging indicator
- Fasteners & Sex Bolts (SNB): Includes screw pack for 1 3/4″ (44mm) to 2 1/4″ (57mm) thick metal doors. Optional 425 SNB available.
- ESL: Emergency secure lockdown
- Device Functions: Device ships EO/DT/NL; Field selectable; For TP, K or L remove NL drive screw from device.
- Push bar depressed – 3-1/16″ (78 mm)
- LX: Latch bolt monitor switch
- 2″ – 2″ (610 mm) Door size (shipped less UL label)
- Electrical Options:
- Strikes:
- Bottom – 385A – Unfinished
- SEC: Security screws
- 3″ – 2″4″ to 3″ (711mm to 914 mm) Door size
- Door undercut: 1/4″ (7mm) recommended
- Projection:
- RX: Request to exit
- LD: Less dogging
- 4″ – 2″10″ to 4″ (864 mm to 1219 mm) Door size
- ALK: Alarm exit kit
- Push bar neutral – 3-13/16″ (97 mm)
- EL: Electric latch retraction
- SNB: Sex bolts
- CON: Allegion Connect
- QEL: Quiet electric latch retraction
- Mechanical Options:
- Mechanism Case: 2-1/4″ x 2-1/4″ (57mm x 57mm)
- PL: Pullman latch
- Device Lengths:
- CDSI: Cylinder dogging with security indicator
- CX: Chexit delayed exit
- Device Centerline from Finished Floor: 39 5/8″ (1006 mm) Standard adjustable from 35 5/8″ (905mm) to 49 5/8″ (1260mm)
- Top and Bottom Latch Case: 4 1/2″ x 2 1/8″ x 1 1/2″ (114mm x 54mm x 38mm)
- HDSI: Hex dogging with security indicator
- SD: Special center case dogging
- Vertical Rods: Round 2-piece adjustable rods – Top rod adjustable from 6’8″ (2027mm) to 8’4″(2533mm). Bottom rod adjustable 35 5/8″ (905 mm) to 49 5/8″ (1260 mm). Extension rod kits available for doors over 8’4″ (2533mm).
- Dogging feature: Hex key dogging standard
- Dogging options:
- LBR: Less bottom rod
- CD: Cylinder dogging
- RX2: Double request to exit
- WH: Weep holes
Attributes
Ship via: No UPS – Common Carrier Only
Alternate Codes: 9847L-626-48-LHR-06, 9847L62648LHR06
Category: Commercial Electric Locks, CVR Panic Devices, Electric Locks, Glass Aluminum Hardware, Lock Sets, Narrow Style Electric Locks, Narrow Style Panic Devices, Panic Devices, Panic Devices & Exit Alarms, Standalone/Pushbutton Locks
Center Line: 3′ 3-5/8″
Certifications: A156.3, ANSI, ANSI/UL 305, BHMA
Device Width: 48″
Door Application: Panic Devices & Exit Alarms
Door Frame Type: Hollow Metal Frame
Door Thickness: 1-3/4″
Door Type: Hollow Metal
Exit Device Category: Concealed Vertical Rod Exit CVR
Finish Code: 626
Finish Color: Brushed Chrome, Satin Chrome
Function: Classroom, Lever
Grade: Grade 1
Handing: Left Handed Reverse
Lever Design: 6
Manufacturer: Von Duprin
Series: 98/99
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Strike Type: Vertical Rod Bottom Strike, Vertical Rod Top Strike
