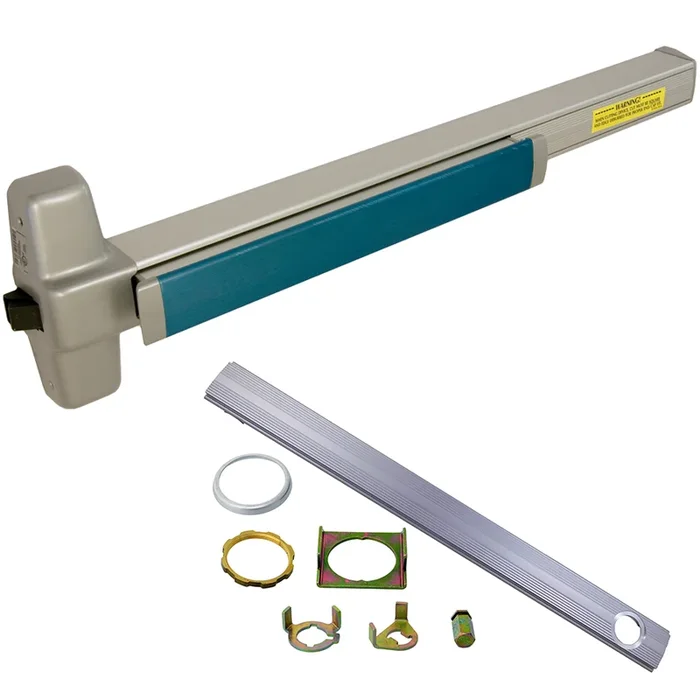

Von Duprin CD-99EO-628-36 Cylinder Dogging Rim Exit Device, Exit Only No Trim, 36in, Anodized Aluminum
Von Duprin CD-99EO-628-36 KIT is a robust rim exit device designed specifically for high-traffic areas, providing reliable security and ease of use in institutional settings such as schools, hospitals, and government facilities. This exit-only device, featuring a sleek 36-inch anodized aluminum finish, ensures quick and safe exits while meeting stringent ANSI/BHMA A156.3 2014 Grade 1 standards. The CD-99EO boasts a modular design, enabling seamless upgrades to adapt to evolving security technology and user needs. Its innovative built-in flexibility allows for straightforward maintenance, supported by extensive serviceable parts options. The device features a deadlocking latch bolt with a 3/4″ throw, ensuring enhanced security. Installation is versatile, accommodating both single and double doors with standard 86 or 161 cutouts. The device can be configured to suit various applications, including options for electrical monitoring and mechanical features like cylinder dogging for added convenience. With a centerline height of 39-13/16″ from the finished floor, this exit device is engineered for optimal accessibility. Choose the Von Duprin CD-99EO-628-36 KIT for a dependable, high-performance exit solution that meets the rigorous demands of modern facilities while delivering peace of mind.
KIT – Cylinder Dogging, Rim Exit Device, Exit Only No Trim, 36in, 628/US28 Anodized Aluminum
Notice: The info below is not item specific.
98 and 99 rim exit devices for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, grade 1. The 98 device has a smooth mechanism case and the 99 device has a grooved case. The rim device is non-handed except when the following device options are used: SD (special dogging), -2 (double cylinder) or SS (signal switch). Covers stock hollow metal doors with 86 or 161 cutouts on single doors (may cover cutouts on pairs – consult template).
Features:
- Built-in flexibility with a universal center case that provides migration path to new technology
- Highly modular allowing product upgrades to meet customer’s changing needs
- Easy maintenance with extensive serviceable parts options
- Modular design allows ability to upgrade device to keep up with changing technology and meet a facility’s changing needs
- Designed for high use and abuse in institutional applications like schools, hospitals and government facilities
- A variety of field-configurable options and retrofit kits available
Specifications:
- Device Functions: Device ships EO/DT/NL; field selectable; for TP, K or L remove NL drive screw from device
- Device Lengths:
- 3′ – 2’4″ to 3′ (711mm to 914 mm) Door size
- 4′ – 2’10” to 4′ (864 mm to 1219 mm) Door size
- Device Centerline from Finished Floor:
- 39-13/16″ (1011 mm)
- 39-11/16″ (1008 mm) with mullion
- Center case dimensions: 8″ x 2 3⁄4″ x 2 3⁄8″ (203mm x 70mm x 60mm)
- Mechanism case dimensions: 2 1⁄4″ x 2 1⁄4″ (57mm x 57mm)
- Projection:
- Push bar neutral – 3-13/16″ (97 mm)
- Push bar depressed – 3-1/16″ (78 mm)
- Latch Bolt: Deadlocking, 3⁄4″ (19mm) throw
- Fasteners and Sex Bolts (SNB): Includes screw pack for 1 3⁄4″ (44mm) and 2 1⁄4″ (57mm) thick metal or wood doors. (optional 425 SNB available)
- Electrical Options:
- LX: Latch bolt monitor switch
- RX: Request to exit
- RX2: Double request to exit
- E: Electric locking and unlocking trim
- EL: Electric latch retraction
- ESL: Emergency secure lockdown
- QEL: Quiet electric latch retraction
- SS: Signal switch
- CX: Chexit delayed exit
- ALK: Alarm exit kit
- WP-RX: Waterproof request to exit
- CON: Allegion Connect
- Mechanical Options:
- -2: Double cylinder
- -2SI: Double cylinder with security indicator
- AX: Accessible device
- GBK: Glass bead kit
- PN: Pneumatic latch retraction
- QM: Quiet mechanical
- SNB: Sex bolts
- SEC: Security screws
- WH: Weep holes
- XP: Extra protection
- Dogging Feature: Hex key dogging standard
- Dogging Options:
- CD: Cylinder dogging
- CD-CX: Chexit cylinder dogging
- CDSI: Cylinder dogging with security indicator
- HDSI: Hex dogging with security indicator
- SD: Special center case dogging
- LD: Less dogging
- DI: Dogging indicator
- CI: Cylinder dogging indicator
- Strikes: 299 – Dull black
Standard Trim:
- EO: No outside trim. Exit only
- DT: Dummy trim. Pull when dogged (not recommended for fire device)
- NL: Night latch
- Key retracts latchbolt
- Rim and 1-1/4″ mortise cylinder
- NLOP: Night latch. Key retracts latchbolt, pull required
- TP: Thumbpiece
- Key locks and unlocks
- Rim and 1-1/4″ mortise cylinder
- TPBE: Thumbpiece, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
- K/L: Knob/Lever
- Key locks and unlocks
- Rim and 1-1/4″ mortise cylinder
- Handed, reversible lever
- Electrified lever operation available
- KDT/LDT: Knob/lever dummy trim. Pull when dogged
- KNL/LNL: Knob/lever, night latch
- Key retracts latchbolt
- Rim and 1-1/4″ mortise cylinder
- Handed, reversible lever
- KBE/LBE: Knob/lever, blank escutcheon. Always operable (no cylinder)
- TL: Turn lever
- Key locks and unlocks (use with DT trim)
- 1-1/4″ mortise cylinder
- TLBE: Turn lever, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
- TLOP: Turn lever, optional pull
- HL: Hospital latch
- Key locks and unlocks
- 1-1/4″ mortise cylinder
Finishes:
- 605 – Bright brass
- 606 – Satin brass
- 612 – Satin bronze
- 625 – Bright chrome
- 626/626AM – Satin chrome
- 628 – Aluminum, anodized
- 710 – Duranodic dark bronze
- 711 – Matte black/anodized
- 643e – Aged bronze
Attributes
Category: Panic Devices, Panic Devices & Exit Alarms, Rim Panic Devices
Certifications: A156.3, ANSI, ANSI/UL 305, BHMA
Device Width: 36″
Dogging: CD – Cylinder Dogging
Door Application: Panic Devices & Exit Alarms
Exit Device Category: Rim Exit
Finish Code: 628
Finish Color: Aluminum, Brushed Aluminum, Satin Aluminum
Function: Exit Only
Grade: Grade 1
Manufacturer: Von Duprin
Series: 98/99
Strike Type: Standard
