Description

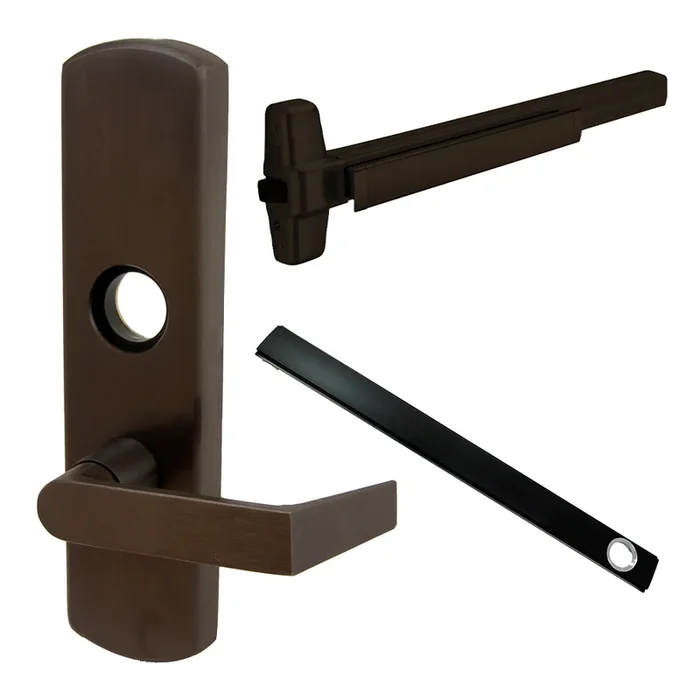

Von Duprin CD-98L-710-36-RHR 06 Cylinder Dogging Rim Exit Device, 996L-06 Lever Trim, RHR, 36in, Grade 1, Dark Bronze
Von Duprin CD-98L-710-36-RHR 06 KIT is a robust and reliable rim exit device designed for high-traffic areas such as schools, hospitals, and government facilities. This Grade 1 rated device features cylinder dogging for enhanced security and ease of use. With a versatile design that accommodates both single and double doors, it is UL listed for panic exit hardware, ensuring safety and compliance with industry standards. The device boasts a durable construction with dimensions suited for 36-inch doors, making it a perfect fit for various applications. Its modular design allows for future upgrades, catering to evolving security needs without requiring a complete replacement. The included 996L-06 lever trim is right-handed reversible, providing flexibility during installation and operation. The CD-98L is equipped with a smooth mechanism case, offering reliable performance and easy maintenance. Additional electrical and mechanical options, such as latch bolt monitors and signal switches, provide further customization to meet specific requirements. Finished in Duranodic dark bronze, this device not only enhances security but also complements a wide range of architectural styles.Choose the Von Duprin CD-98L-710-36-RHR 06 KIT for a dependable, long-lasting solution to your exit device needs.
KIT – Cylinder Dogging, Rim Exit Device, 996L-06 Lever Trim, RHR Right Hand Reverse/Reversible Handing, 36in, Grade 1, 710/313 Dark Bronze
Notice: The info below is not item specific.
98 and 99 rim exit devices for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, grade 1. The 98 device has a smooth mechanism case and the 99 device has a grooved case. The rim device is non-handed except when the following device options are used: SD (special dogging), -2 (double cylinder) or SS (signal switch). Covers stock hollow metal doors with 86 or 161 cutouts on single doors (may cover cutouts on pairs – consult template).
Features:
- Built-in flexibility with a universal center case that provides migration path to new technology
- Highly modular allowing product upgrades to meet customer’s changing needs
- Easy maintenance with extensive serviceable parts options
- Modular design allows ability to upgrade device to keep up with changing technology and meet a facility’s changing needs
- Designed for high use and abuse in institutional applications like schools, hospitals and government facilities
- A variety of field-configurable options and retrofit kits available
Specifications:
- Device Functions: Device ships EO/DT/NL; field selectable; for TP, K or L remove NL drive screw from device
- Device Lengths:
- 3′ – 2’4″ to 3′ (711mm to 914 mm) Door size
- 4′ – 2’10” to 4′ (864 mm to 1219 mm) Door size
- Device Centerline from Finished Floor:
- 39-13/16″ (1011 mm)
- 39-11/16″ (1008 mm) with mullion
- Center case dimensions: 8″ x 2 3⁄4″ x 2 3⁄8″ (203mm x 70mm x 60mm)
- Mechanism case dimensions: 2 1⁄4″ x 2 1⁄4″ (57mm x 57mm)
- Projection:
- Push bar neutral – 3-13/16″ (97 mm)
- Push bar depressed – 3-1/16″ (78 mm)
- Latch Bolt: Deadlocking, 3⁄4″ (19mm) throw
- Fasteners and Sex Bolts (SNB): Includes screw pack for 1 3⁄4″ (44mm) and 2 1⁄4″ (57mm) thick metal or wood doors. (optional 425 SNB available)
- Electrical Options:
- LX: Latch bolt monitor switch
- RX: Request to exit
- RX2: Double request to exit
- E: Electric locking and unlocking trim
- EL: Electric latch retraction
- ESL: Emergency secure lockdown
- QEL: Quiet electric latch retraction
- SS: Signal switch
- CX: Chexit delayed exit
- ALK: Alarm exit kit
- WP-RX: Waterproof request to exit
- CON: Allegion Connect
- Mechanical Options:
- -2: Double cylinder
- -2SI: Double cylinder with security indicator
- AX: Accessible device
- GBK: Glass bead kit
- PN: Pneumatic latch retraction
- QM: Quiet mechanical
- SNB: Sex bolts
- SEC: Security screws
- WH: Weep holes
- XP: Extra protection
- Dogging Feature: Hex key dogging standard
- Dogging Options:
- CD: Cylinder dogging
- CD-CX: Chexit cylinder dogging
- CDSI: Cylinder dogging with security indicator
- HDSI: Hex dogging with security indicator
- SD: Special center case dogging
- LD: Less dogging
- DI: Dogging indicator
- CI: Cylinder dogging indicator
- Strikes: 299 – Dull black
Standard Trim:
- EO: No outside trim. Exit only
- DT: Dummy trim. Pull when dogged (not recommended for fire device)
- NL: Night latch
- Key retracts latchbolt
- Rim and 1-1/4″ mortise cylinder
- NLOP: Night latch. Key retracts latchbolt, pull required
- TP: Thumbpiece
- Key locks and unlocks
- Rim and 1-1/4″ mortise cylinder
- TPBE: Thumbpiece, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
- K/L: Knob/Lever
- Key locks and unlocks
- Rim and 1-1/4″ mortise cylinder
- Handed, reversible lever
- Electrified lever operation available
- KDT/LDT: Knob/lever dummy trim. Pull when dogged
- KNL/LNL: Knob/lever, night latch
- Key retracts latchbolt
- Rim and 1-1/4″ mortise cylinder
- Handed, reversible lever
- KBE/LBE: Knob/lever, blank escutcheon. Always operable (no cylinder)
- TL: Turn lever
- Key locks and unlocks (use with DT trim)
- 1-1/4″ mortise cylinder
- TLBE: Turn lever, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
- TLOP: Turn lever, optional pull
- HL: Hospital latch
- Key locks and unlocks
- 1-1/4″ mortise cylinder
Finishes:
- 605 – Bright brass
- 606 – Satin brass
- 612 – Satin bronze
- 625 – Bright chrome
- 626/626AM – Satin chrome
- 628 – Aluminum, anodized
- 710 – Duranodic dark bronze
- 711 – Matte black/anodized
- 643e – Aged bronze
Attributes
Alternate Codes: CD-98L-710-36-RHR 06, VONCD-98L-710-36 RHR 06
Category: Panic Devices, Panic Devices & Exit Alarms, Rim Panic Devices
Certifications: A156.3, ANSI, ANSI/UL 305, BHMA
Device Width: 36″
Dogging: CD – Cylinder Dogging
Door Application: Panic Devices & Exit Alarms
Exit Device Category: Rim Exit
Finish Code: 710
Finish Color: Duranotic Dark Bronze
Function: Classroom, Lever
Grade: Grade 1
Handing: Right Handed Reverse
Lever Design: 6
Manufacturer: Von Duprin
Series: 98/99
Strike Type: Standard
