Description
Corbin Russwin ML20906 LWM 613E SEC M92 CL6 Electrified Mortise Lock, Reversible, Fail Safe/Secure, REX, Lustra Lever, LFIC
Corbin Russwin ML20906 LWM 613E SEC M92 CL6 KIT is a top-tier electrified mortise lock designed for high-traffic areas, ensuring enhanced security and functionality. This versatile lock features a field-reversible handing, enabling convenient adjustment without disassembly, making it ideal for various installations. The lock operates in both fail-safe and fail-secure modes and includes a Request to Exit (REX) switch, providing flexibility to meet diverse safety requirements. Constructed from heavy-gauge steel, the ML20906 combines durability with innovative design elements, such as a crisp lever return that eliminates sag. The Lustra lever with M escutcheon trim enhances the aesthetic appeal while maintaining robust performance. An ANSI strike SS118 and a 6-pin large format interchangeable core (LFIC) ensure compatibility with existing systems, while the eco-friendly EcoFlex® technology promotes energy savings of up to 89%. This lock is UL listed and exceeds ANSI/BHMA Grade 1 standards, ensuring it withstands attempts at intrusion and abuse. With a ten-year limited warranty, the Corbin Russwin ML20906 LWM 613E is a reliable choice for any commercial or residential setting, combining security, style, and sustainability in one comprehensive solution.

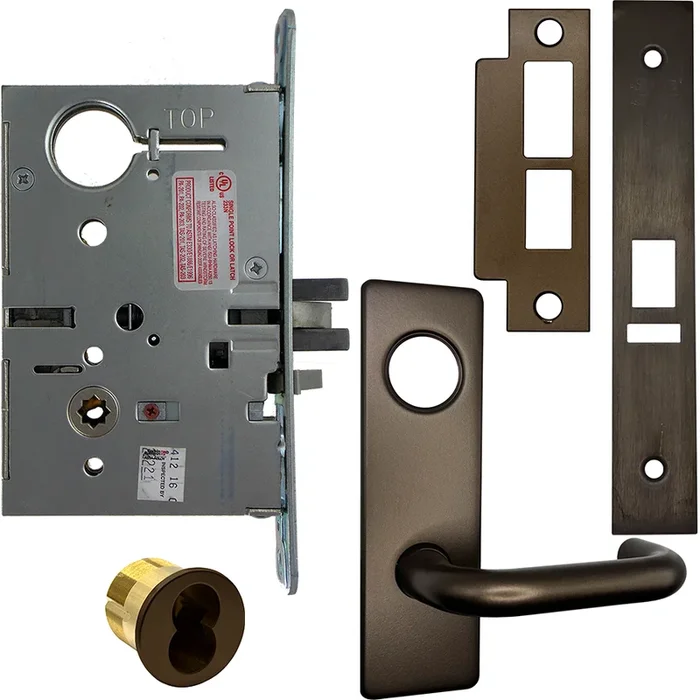

KIT – Electrified Mortise, Field Reversible – Fail Safe and Fail Secure, with (REX) Request to Exit Switch, Lustra Lever with M Escutcheon Trim, LFIC 6-Pin Large Format Interchangeable Core Mortise Housing, A01 Clover Cam, Less IC Core, Handing is Field Reversible, ANSI Strike SS118, 613E/US10BE Oil Rubbed Bronze
Notice: The info below is not item specific.
The ML2000 Series is an ANSI/BHMA Grade 1 mortise lock designed to meet the rigors of high-traffic, abusive environments. Constructed of heavy-gauge steel with unique, patented features and a full range of functions including status indicators and trim, the versatility and reliability of this lock complement any application. Corbin Russwin’s status indicator options offer a unique and highly visible window design and provides clarity on the locked/unlocked status of a door. Available for use with a wide range of trim options and with a variety of functions, the mortise lock status indicators are versatile for any application.
Features:
- Direct drive performance for consistent torque and force during lever rotation
- Lever return is crisp and firm – eliminating lever sag
- Available in 63 mechanical and electrified functions, including 2 vandal resistant and 4 behavioral health options, 61 standard and Muséo Line decorative lever designs and 16 finishes
- Integrates with new or existing Corbin Russwin key systems, including patented/high security Access 3® and Pyramid
- Integrates with access control platforms
- Utilizes EcoFlex®️ technology on all electromechanical functions, creating up to 89% energy savings
- Occupancy indicators available
- Ten-year warranty
Benefits:
- Innovative Design: Optimized torsion spring design and fewer moving parts give the lock extremely smooth and consistent operations
- Flexible: Field reversible latchbolt makes it easy to re-hand without disassembling the lock case
- Safe and Secure: Withstands intrusion attempts and abuse, featuring specialized security trim and components
- Lower Total Cost of Ownership: Far exceeds ANSI/BHMA Grade 1 requirements ensuring durability and longevity
- Sustainable: Environmental product declaration (EPD) in accordance with ISO14025
Specifications:
- ANSI/BHMA Code: A156.13
- Backset Depth (Standard): 2 3/4″
- Cylinder Format: Conventional, Large Format, Small Format
- Cylinder Pins: 6 pin, 7 pin
- Door Thickness (Standard): 1 3/4″
- Door Type: Bullet-Resistant Doors, Wood, Hollow Metal
- Handing: Field Reversible
- Latchbolt Throw: 3/4″
- Maximum Backset: 2 3/4″
- Maximum Door Thickness: 4″
- Minimum Backset: 2 3/8″
- Minimum Door Thickness: 1 3/8″
- Number of Keys: 2
- Strike Type (Standard): ANSI Straight Lip
- UL Listed: Yes
- Warranty: 10-year limited warranty
Finishes:
- 605 – Bright Brass
- 606 – Satin Brass
- 611 – Bright Bronze
- 612 – Satin Bronze
- 613 – Dark Oxidized Satin Bronze, Oil Rubbed
- 613E – Dark Oxidized Satin Bronze, Equivalent
- 613L – Dark oxidized satin bronze, clear coated
- 618 – Bright Nickel Plated
- 619 – Satin Nickel Plated
- 619C – Satin nickel plated with MicroShield
- 625 – Bright Chromium Plated
- 626 – Satin Chromium Plated
- 626C – Satin Chromium Plated with MicroShield
- 629 – Bright Stainless Steel
- 630 – Satin Stainless Steel
- 630C – Satin stainless steel with MicroShield
- 722 – Black Oxidized Bronze, Oil Rubbed
- BSP – Black suede powder coated/sprayed
- WSP – White suede powder coated/sprayed
Attributes
Alternate Codes: ML20906 LWM 613E SEC M92 CL6, ML20906LWM613ESECM92CL6
Category: Commercial Electric Locks, Deadbolts, Electric Locks, Lock Sets, Mortise Electric, Mortise Electric Locks, Mortise Locks, Standalone/Pushbutton Locks
Cylinder Type: 6-Pin, Less Core, LFIC – Corbin
Door Application: Mortise Locks
Electrical Option: Request to Exit
Fail Safe/ Fail Secure: FSE- Fail Secure
Finish Code: 613E
Finish Color: Dark Oxidized Satin Bronze
Function: Single Cylinder
Lever Design: Lustra
Material: Wrought
Rose/ Escutcheon: M Escutcheon
Series: ML20900
