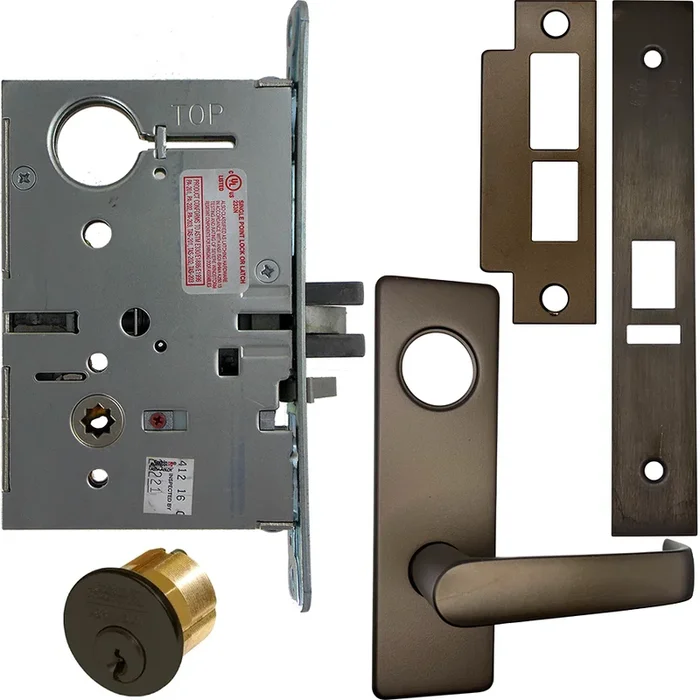

Corbin Russwin ML20906 NSM 613E SEC M92 L4 Electrified Mortise Lock – Fail Safe/Secure, REX Exit Switch, Newport Lever
Corbin Russwin ML20906 NSM 613E SEC M92 L4 KIT is an advanced electrified mortise lock designed for both fail safe and fail secure applications. Ideal for high-traffic environments, this lock features a field-reversible handing, allowing for easy adjustments without disassembly. The lock’s robust construction utilizes heavy-gauge steel, ensuring durability against wear and tampering. This model comes equipped with a REX Request to Exit switch, adding convenience and safety for users. The stylish Newport lever with M Escutcheon Trim not only enhances aesthetics but also provides a crisp, firm return, eliminating any lever sag. The standard 1-1/8 mortise cylinder with A01 Clover Cam and L4 keyway offers a secure locking mechanism with two keys included. The ML2000 Series meets ANSI/BHMA Grade 1 standards, making it a reliable choice for various door types, including wood and hollow metal. It integrates seamlessly with existing Corbin Russwin key systems and access control platforms, providing flexibility for various applications. Additionally, EcoFlex® technology promotes energy efficiency, yielding up to 89% energy savings. With a ten-year limited warranty, the Corbin Russwin ML20906 NSM lock delivers peace of mind through innovative design, outstanding performance, and long-lasting security solutions.
KIT – Electrified Mortise, Field Reversible – Fail Safe and Fail Secure, with REX Request to Exit Switch, Newport Lever with M Escutcheon Trim, Standard 1-1/8 Mortise Cylinder, A01 Clover Cam, L4 Keyway 0-Bit, Handing is Field Reversible, ANSI Strike SS118, 613E/US10BE Oil Rubbed Bronze
Notice: The info below is not item specific.
The ML2000 Series is an ANSI/BHMA Grade 1 mortise lock designed to meet the rigors of high-traffic, abusive environments. Constructed of heavy-gauge steel with unique, patented features and a full range of functions including status indicators and trim, the versatility and reliability of this lock complement any application. Corbin Russwin’s status indicator options offer a unique and highly visible window design and provides clarity on the locked/unlocked status of a door. Available for use with a wide range of trim options and with a variety of functions, the mortise lock status indicators are versatile for any application.
Features:
- Direct drive performance for consistent torque and force during lever rotation
- Lever return is crisp and firm – eliminating lever sag
- Available in 63 mechanical and electrified functions, including 2 vandal resistant and 4 behavioral health options, 61 standard and Muséo Line decorative lever designs and 16 finishes
- Integrates with new or existing Corbin Russwin key systems, including patented/high security Access 3® and Pyramid
- Integrates with access control platforms
- Utilizes EcoFlex®️ technology on all electromechanical functions, creating up to 89% energy savings
- Occupancy indicators available
- Ten-year warranty
Benefits:
- Innovative Design: Optimized torsion spring design and fewer moving parts give the lock extremely smooth and consistent operations
- Flexible: Field reversible latchbolt makes it easy to re-hand without disassembling the lock case
- Safe and Secure: Withstands intrusion attempts and abuse, featuring specialized security trim and components
- Lower Total Cost of Ownership: Far exceeds ANSI/BHMA Grade 1 requirements ensuring durability and longevity
- Sustainable: Environmental product declaration (EPD) in accordance with ISO14025
Specifications:
- ANSI/BHMA Code: A156.13
- Backset Depth (Standard): 2 3/4″
- Cylinder Format: Conventional, Large Format, Small Format
- Cylinder Pins: 6 pin, 7 pin
- Door Thickness (Standard): 1 3/4″
- Door Type: Bullet-Resistant Doors, Wood, Hollow Metal
- Handing: Field Reversible
- Latchbolt Throw: 3/4″
- Maximum Backset: 2 3/4″
- Maximum Door Thickness: 4″
- Minimum Backset: 2 3/8″
- Minimum Door Thickness: 1 3/8″
- Number of Keys: 2
- Strike Type (Standard): ANSI Straight Lip
- UL Listed: Yes
- Warranty: 10-year limited warranty
Finishes:
- 605 – Bright Brass
- 606 – Satin Brass
- 611 – Bright Bronze
- 612 – Satin Bronze
- 613 – Dark Oxidized Satin Bronze, Oil Rubbed
- 613E – Dark Oxidized Satin Bronze, Equivalent
- 613L – Dark oxidized satin bronze, clear coated
- 618 – Bright Nickel Plated
- 619 – Satin Nickel Plated
- 619C – Satin nickel plated with MicroShield
- 625 – Bright Chromium Plated
- 626 – Satin Chromium Plated
- 626C – Satin Chromium Plated with MicroShield
- 629 – Bright Stainless Steel
- 630 – Satin Stainless Steel
- 630C – Satin stainless steel with MicroShield
- 722 – Black Oxidized Bronze, Oil Rubbed
- BSP – Black suede powder coated/sprayed
- WSP – White suede powder coated/sprayed
Attributes
Alternate Codes: ML20906 NSM 613E SEC M92 L4, ML20906NSM613ESECM92L4
Category: Commercial Electric Locks, Deadbolts, Electric Locks, Lock Sets, Mortise Electric, Mortise Electric Locks, Mortise Locks, Standalone/Pushbutton Locks
Door Application: Mortise Locks
Electrical Option: Request to Exit
Fail Safe/ Fail Secure: FSE- Fail Secure
Finish Code: 613E
Finish Color: Dark Oxidized Satin Bronze
Function: Single Cylinder
Keying: 0-Bitted
Keyway: Corbin L4
Lever Design: Newport
Material: Cast
Rose/ Escutcheon: M Escutcheon
Series: ML20900
