Description

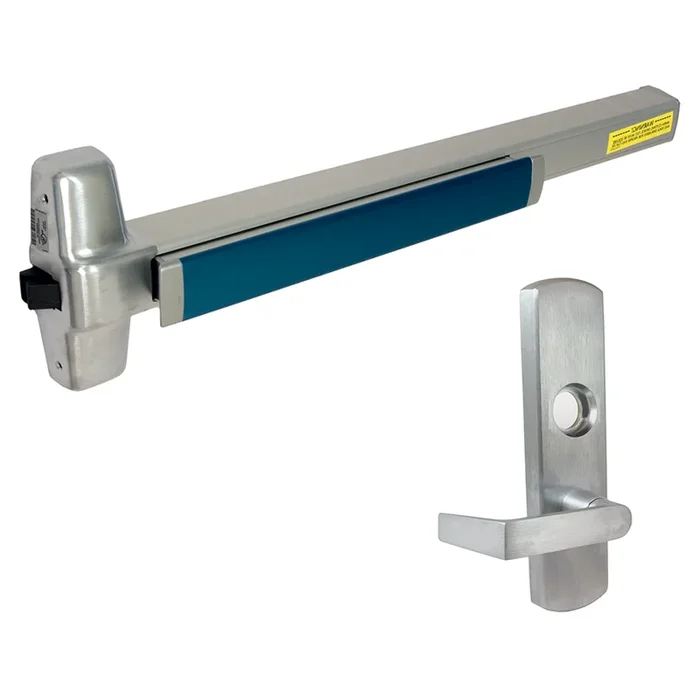

Von Duprin 98L-NL-F-626-36-LHR 06 Fire Rated Rim Exit Device Nightlatch Lever Trim, 36in, Grade 1, Satin Chrome
Von Duprin 98L-NL-F-626-36-LHR 06 KIT is a fire-rated rim exit device that combines reliability with security. Certified to ANSI/BHMA A156.3 2014, Grade 1, and UL listed for fire exit hardware, this device ensures safe egress in emergencies while maintaining high-performance standards. The 36-inch length is suitable for doors measuring between 2’4″ to 3′ wide, making it versatile for various installations. Designed with a deadlocking latch bolt that features a ¾” throw, the Von Duprin 98L-NL offers enhanced security and ease of use. The night latch lever trim allows for key access to retract the latch bolt, providing added convenience. With a satin chrome finish (626/US26D), it complements both modern and traditional architectural styles. This device is left-hand reverse handable and is equipped with a smooth mechanism case, ensuring smooth operation without compromising safety. The device’s centerline is positioned at 39-13/16″ from the finished floor, facilitating compliance with accessibility standards.The Von Duprin 98L-NL-F-626-36-LHR 06 KIT is perfect for building professionals and homeowners seeking a secure, durable, and aesthetically pleasing solution for panic exit needs while meeting stringent fire safety requirements.
KIT – Fire Rated Rim Exit Device, 996L-NL-06 Nightlatch Lever Trim, LHR Left Hand Reverse/Reversible Handing, 36in, No Dogging, Grade 1, 626/US26D Satin Chrome
Notice: The info below is not item specific.
98-F and 99-F Rim fire exit devices are certified to ANSI/BHMA A156.3 2014, grade 1 and UL listed for fire exit hardware. The 98-F device has a smooth mechanism case and the 99-F device has a grooved case. The rim device is non-handed except when the following device options are used: -2 (double cylinder) or SS (signal switch).
Specifications:
- Device Functions: Device ships EO/DT/NL; field selectable; for TP, K or L remove NL drive screw from device
- Device Lengths:
- 3′ – 2’4″ to 3′ (711mm to 914 mm) Door size
- 4′ – 2’10” to 4′ (864 mm to 1219 mm) Door size
- Device Centerline from Finished Floor:
- 39-13/16″ (1011 mm)
- 39-11/16″ (1008 mm) with mullion
- Center case dimensions: 8″ x 2 3⁄4″ x 2 3⁄8″ (203mm x 70mm x 60mm)
- Mechanism case dimensions: 2 1⁄4″ x 2 1⁄4″ (57mm x 57mm)
- Projection:
- Push bar neutral – 3-13/16″ (97 mm)
- Push bar depressed – 3-1/16″ (78 mm)
- Latch Bolt: Deadlocking, 3⁄4″ (19mm) throw
- Fasteners and Sex Bolts (SNB): Includes screw pack for 1 3⁄4″ (44mm) and 2 1⁄4″ (57mm) thick metal or wood doors; Optional 425 SNB available for metal doors; 425 and 825 SNB required on wood doors without SLM blocking
- Electrical Options:
- LX: Latch bolt monitor switch
- RX: Request to exit
- RX2: Double request to exit
- E: Electric locking and unlocking trim
- EL: Electric latch retraction
- ESL: Emergency secure lockdown
- QEL: Quiet electric latch retraction
- SS: Signal switch
- CX: Chexit delayed exit
- ALK: Alarm exit kit
- WP-RX: Waterproof request to exit
- CON: Allegion Connect
- Mechanical Options:
- -2: Double cylinder
- -2SI: Double cylinder with security indicator
- AX: Accessible device
- GBK: Glass bead kit
- PN: Pneumatic latch retraction
- QM: Quiet mechanical
- SNB: Sex bolts
- SEC: Security screws
- WH: Weep holes
- XP: Extra protection
- Dogging Options: No mechanical dogging; QEL options available
- Strikes: 299F – Dull black, 499F with mullions
Standard Trim:
- EO: No outside trim. Exit only
- DT: Dummy trim. Pull when dogged (not recommended for fire device)
- NL: Night latch
- Key retracts latchbolt
- Rim and 1-1/4″ mortise cylinder
- NLOP: Night latch. Key retracts latchbolt, pull required
- TP: Thumbpiece
- Key locks and unlocks
- Rim and 1-1/4″ mortise cylinder
- TPBE: Thumbpiece, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
- K/L: Knob/Lever
- Key locks and unlocks
- Rim and 1-1/4″ mortise cylinder
- Handed, reversible lever
- Electrified lever operation available
- KDT/LDT: Knob/lever dummy trim. Pull when dogged
- KNL/LNL: Knob/lever, night latch
- Key retracts latchbolt
- Rim and 1-1/4″ mortise cylinder
- Handed, reversible lever
- KBE/LBE: Knob/lever, blank escutcheon. Always operable (no cylinder)
- TL: Turn lever
- Key locks and unlocks (use with DT trim)
- 1-1/4″ mortise cylinder
- TLBE: Turn lever, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
- TLOP: Turn lever, optional pull
- HL: Hospital latch
- Key locks and unlocks
- 1-1/4″ mortise cylinder
Finishes:
- 605 – Bright brass
- 606 – Satin brass
- 612 – Satin bronze
- 625 – Bright chrome
- 626/626AM – Satin chrome
- 628 – Aluminum, anodized
- 710 – Duranodic dark bronze
- 711 – Matte black/anodized
- 643e – Aged bronze
Features
- XP: Extra protection
- Center case dimensions: 8″ x 2 3⁄4″ x 2 3⁄8″ (203mm x 70mm x 60mm)
- Projection:
- Strikes: 299F – Dull black, 499F with mullions
- RX: Request to exit
- GBK: Glass bead kit
- ALK: Alarm exit kit
- -2SI: Double cylinder with security indicator
- AX: Accessible device
- 3′ – 2’4″ to 3′ (711mm to 914 mm) Door size
- Push bar neutral – 3-13/16″ (97 mm)
- Fasteners and Sex Bolts (SNB): Includes screw pack for 1 3⁄4″ (44mm) and 2 1⁄4″ (57mm) thick metal or wood doors; Optional 425 SNB available for metal doors; 425 and 825 SNB required on wood doors without SLM blocking
- EL: Electric latch retraction
- SNB: Sex bolts
- Dogging Options: No mechanical dogging; QEL options available
- CON: Allegion Connect
- -2: Double cylinder
- PN: Pneumatic latch retraction
- Latch Bolt: Deadlocking, 3⁄4″ (19mm) throw
- QEL: Quiet electric latch retraction
- 4′ – 2’10” to 4′ (864 mm to 1219 mm) Door size
- 39-11/16″ (1008 mm) with mullion
- Mechanical Options:
- WP-RX: Waterproof request to exit
- Device Lengths:
- E: Electric locking and unlocking trim
- SS: Signal switch
- ESL: Emergency secure lockdown
- CX: Chexit delayed exit
- Push bar depressed – 3-1/16″ (78 mm)
- LX: Latch bolt monitor switch
- Mechanism case dimensions: 2 1⁄4″ x 2 1⁄4″ (57mm x 57mm)
- QM: Quiet mechanical
- Electrical Options:
- 39-13/16″ (1011 mm)
- Device Centerline from Finished Floor:
- SEC: Security screws
- Device Functions: Device ships EO/DT/NL; field selectable; for TP, K or L remove NL drive screw from device
- RX2: Double request to exit
- WH: Weep holes
Attributes
Alternate Codes: VON98L-NL-F-626-36-LHR 06
Category: Panic Devices, Panic Devices & Exit Alarms, Rim Panic Devices
Certifications: A156.3, ANSI, ANSI/UL 10C, ANSI/UL 305, BHMA, CAN/ULC-S104
Device Width: 36″
Door Application: Panic Devices & Exit Alarms
Exit Device Category: Rim Exit
Finish Code: 626
Finish Color: Brushed Chrome, Satin Chrome
Fire Rated: Yes
Fire Rating: 180 min
Function: Lever, Night Latch
Grade: Grade 1
Handing: Left Handed Reverse
Lever Design: 6
Manufacturer: Von Duprin
Series: 98/99
Strike Type: Standard Rim Fire
