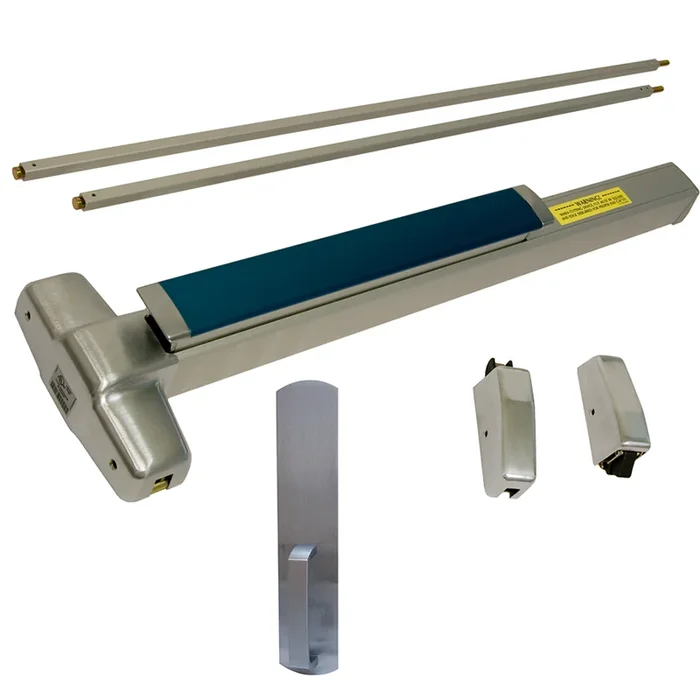

Von Duprin 9927DT-F-626-36 Fire-Rated SVR Grooved Exit Device, 990 Dummy Pull Trim, Satin Chrome, 36″x84″
Von Duprin 9927DT-F-626-36 KIT is a fire-rated surface vertical rod exit device designed for robust security and ease of use. This model features a grooved case and is UL listed for fire exit hardware, ensuring compliance with stringent safety standards. With a Grade 1 certification, it is suitable for high-traffic environments requiring reliable performance. Measuring 36 inches wide and compatible with 84-inch doors, the 9927DT-F is specifically engineered to provide a secure exit pathway while maintaining aesthetic appeal with its satin chrome finish. The device includes a deadlocking anti-friction latch bolt with a 5/8-inch throw, ensuring that doors remain securely latched even under pressure. Its non-handed design allows for flexible installation, accommodating various door configurations. The device features dummy pull trim, making it suitable for situations where locking or additional access control is not required. The 9927DT-F also offers optional vertical rod and latch guards to protect against impact damage from carts or gurneys, enhancing its durability. Additionally, it includes a comprehensive screw pack for installation on both metal and wood doors, ensuring a straightforward setup process.For building professionals and discerning homeowners, the Von Duprin 9927DT-F-626-36 KIT represents a perfect balance of security, functionality, and style.
KIT – Fire-Rated (No Dogging), SVR (Surface Vertical Rod) Grooved Exit Device, 990 Dummy Pull Trim, 36in x 84in, Grade 1, 626/US26D Satin Chrome
Notice: The info below is not item specific.
9827-F/9927-F Fire exit surface mounted vertical rod device are certified to ANSI/BHMA A156.3 2014, grade 1 and UL listed for fire exit hardware. The 9827-F device has a smooth mechanism case and the 9927-F device has a grooved case. The surface vertical rod device is non-handed except when the following device options are used: SS (signal switch), and WS (tornado/hurricane). Vertical rod and latch guards are available to protect the bottom rod of the exit device from damage by impacts of carts or gurneys passing through doors. Rod and latch guards can be used on hollow metal or tin clad composite fire doors.
Specifications:
- Device Functions: Device ships EO/DT/NL; field selectable; for TP, K or L remove NL drive screw from device.
- Device Lengths:
- 2’ – 2’ (610 mm) Door size.
- 3’ – 2’ 4″ to 3’ (711mm to 914mm) Door size.
- 4’ – 2’ 10″ to 4’ (864mm to 1219mm) Door size.
- Device Centerline from Finished Floor: 39-5⁄8″ (1006 mm).
- Center Case: 8″ x 2-3⁄4″ x 2-3⁄8″ (203mm x 70mm x 60mm).
- Mechanism Case: 2-1⁄4″ x 2-1⁄4″ (57mm x 57mm).
- Projection:
- Push bar neutral – 3-13⁄16″ (97mm).
- Push bar depressed – 3-1⁄16″ (78mm).
- Latch Bolt: Deadlocking anti-friction top and bottom bolt, 5⁄8″ (16mm) throw.
- Door Undercut: 1⁄4″ (7mm) recommended.
- Top and Bottom Latch Case: 4-1⁄2″ x 2-1⁄8″ x 1-1⁄2″ (114mm x 54mm x 38mm).
- Vertical Rods:
- 1⁄2″ square tubing, standard rods accommodate 7’ (2134mm) doors. Top rod length: 34-15⁄16″ (887mm).
- Bottom rod length: 31-1⁄2″ (794mm). Extension rods available in 3’ (914mm) for doors over 7’ One piece top rod is available for 8’ (2438mm) and 10’ (3048mm) doors.
- Fasteners & Sex Bolts: Includes screw pack for 1-3⁄4″ (44mm) to 2-1⁄4″ (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch. (optional 425 SNB available).
- Electrified Options:
- LX: Latch bolt monitor switch
- RX: Request to exit
- RX2: Double request to exit
- E: Electric locking and unlocking trim
- EL: Electric latch retraction
- ESL: Emergency secure lockdown
- QEL: Quiet electric latch retraction
- SS: Signal switch
- CX :Chexit delayed exit
- ALK: Alarm exit kit
- WP-RX: Waterproof request to exit
- CON: Allegion Connect
- Mechanical Options:
- -2: Double cylinder
- -2SI: Double cylinder with security indicator
- AX: Accessible device
- GBK: Glass bead kit
- LBR: Less bottom rod
- PL: Pullman latch
- PN: Pneumatic latch retraction
- QM: Quiet mechanical
- SNB: Sex bolts
- SEC: Security screws
- WH: Weep holes
- WS: Tornado and hurricane tested
- Dogging Options: No mechanical dogging; QEL options available
- Strikes:
- Top – 299F –(499F LBR) Dull black
- Bottom – 304L – Unfinished
Standard Trim:
- EO: No outside trim. Exit only
- DT: Dummy trim. Pull when dogged (not recommended for fire device)
- NL: Night latch
- Key retracts latchbolt
- Rim and 1-1/4″ mortise cylinder
- NLOP: Night latch. Key retracts latchbolt, pull required
- TP: Thumbpiece
- Key locks and unlocks
- Rim and 1-1/4″ mortise cylinder
- TPBE: Thumbpiece, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
- K/L: Knob/Lever
- Key locks and unlocks
- Rim and 1-1/4″ mortise cylinder
- Handed, reversible lever
- Electrified lever operation available
- KDT/LDT: Knob/lever dummy trim. Pull when dogged
- KNL/LNL: Knob/lever, night latch
- Key retracts latchbolt
- Rim and 1-1/4″ mortise cylinder
- Handed, reversible lever
- KBE/LBE: Knob/lever, blank escutcheon. Always operable (no cylinder)
- TL: Turn lever
- Key locks and unlocks (use with DT trim)
- 1-1/4″ mortise cylinder
- TLBE: Turn lever, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
- TLOP: Turn lever, optional pull
- HL: Hospital latch
- Key locks and unlocks
- 1-1/4″ mortise cylinder
Finishes:
- 605 – Bright brass
- 606 – Satin brass
- 612 – Satin bronze
- 625 – Bright chrome
- 626/626AM – Satin chrome (antimicrobial)
- 628 – Aluminum, anodized
- 710 – Dark brown, anodized
- 711 – Flat black
- 643E – Aged bronze
Features
- WS: Tornado and hurricane tested
- Device Functions: Device ships EO/DT/NL; field selectable; for TP, K or L remove NL drive screw from device.
- Projection:
- Push bar neutral – 3-13⁄16″ (97mm).
- Latch Bolt: Deadlocking anti-friction top and bottom bolt, 5⁄8″ (16mm) throw.
- RX: Request to exit
- GBK: Glass bead kit
- ALK: Alarm exit kit
- -2SI: Double cylinder with security indicator
- AX: Accessible device
- 1⁄2″ square tubing, standard rods accommodate 7’ (2134mm) doors. Top rod length: 34-15⁄16″ (887mm).
- Vertical Rods:
- EL: Electric latch retraction
- SNB: Sex bolts
- Dogging Options: No mechanical dogging; QEL options available
- Mechanism Case: 2-1⁄4″ x 2-1⁄4″ (57mm x 57mm).
- Top – 299F –(499F LBR) Dull black
- Top and Bottom Latch Case: 4-1⁄2″ x 2-1⁄8″ x 1-1⁄2″ (114mm x 54mm x 38mm).
- CON: Allegion Connect
- -2: Double cylinder
- Center Case: 8″ x 2-3⁄4″ x 2-3⁄8″ (203mm x 70mm x 60mm).
- PN: Pneumatic latch retraction
- QEL: Quiet electric latch retraction
- Fasteners & Sex Bolts: Includes screw pack for 1-3⁄4″ (44mm) to 2-1⁄4″ (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch. (optional 425 SNB available).
- Mechanical Options:
- 3’ – 2’ 4″ to 3’ (711mm to 914mm) Door size.
- WP-RX: Waterproof request to exit
- Bottom rod length: 31-1⁄2″ (794mm). Extension rods available in 3’ (914mm) for doors over 7’ One piece top rod is available for 8’ (2438mm) and 10’ (3048mm) doors.
- PL: Pullman latch
- Device Lengths:
- 2’ – 2’ (610 mm) Door size.
- E: Electric locking and unlocking trim
- SS: Signal switch
- ESL: Emergency secure lockdown
- 4’ – 2’ 10″ to 4’ (864mm to 1219mm) Door size.
- Bottom – 304L – Unfinished
- Electrified Options:
- LX: Latch bolt monitor switch
- QM: Quiet mechanical
- Push bar depressed – 3-1⁄16″ (78mm).
- Strikes:
- CX :Chexit delayed exit
- SEC: Security screws
- Door Undercut: 1⁄4″ (7mm) recommended.
- Device Centerline from Finished Floor: 39-5⁄8″ (1006 mm).
- LBR: Less bottom rod
- RX2: Double request to exit
- WH: Weep holes
Attributes
Alternate Codes: 9927DT-F-626-36, 9927DTF62636
Category: Panic Devices, Panic Devices & Exit Alarms, SVR Panic Devices
Certifications: A156.3, ANSI, ANSI/UL 10C, ANSI/UL 305, BHMA, CAN/ULC-S104
Device Width: 36″
Door Application: Panic Devices & Exit Alarms
Exit Device Category: Surface Vertical Rod Exit SVR
Finish Code: 626
Finish Color: Brushed Chrome, Satin Chrome
Fire Rated: Yes
Fire Rating: 180 min
Function: Dummy Trim
Grade: Grade 1
Manufacturer: Von Duprin
Series: 98/99
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Strike Type: Standard Rim Fire, Vertical Rod Bottom Strike
