Description

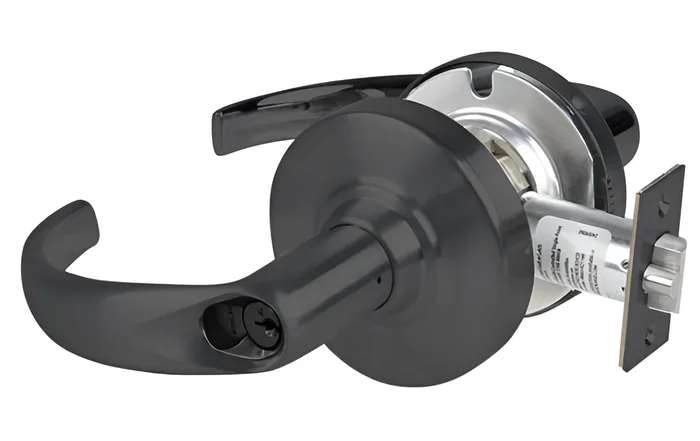

Schlage ND80-RD-SPA-622 C Grade 1 Storeroom Cylindrical Lock, Sparta Lever, FSIC, Matte Black, 2-3/4in
Schlage Lock Company ND80-RD-SPA-622 C KIT is a Grade 1 storeroom cylindrical lock designed for maximum security and durability. Featuring the stylish Sparta lever and a Schlage Full Sized IC core with a C keyway, this lock is built to withstand extreme conditions. With a robust 2-3/4 inch backset and UL certification, it meets ANSI strike specifications, making it ideal for both commercial and residential applications. The ND series locks undergo rigorous testing, demonstrating exceptional resistance to lever torque and pry-bar attacks. They can withstand a staggering 3,100 in-lbs of lever torque and 1,600 lbs of offset lever pull, ensuring reliable security against potential breaches. Additionally, this lock is designed for longevity, showing minimal droop or wobble even after 16 million cycles. Constructed from modular zinc and steel, the ND80-RD-SPA-622 C KIT is compatible with various door thicknesses and keying formats, including patented and restricted options. It also supports multiple key systems, making it a versatile choice for any facility. Its matte black finish (622) adds a modern touch while providing corrosion protection. With a 10-year mechanical warranty and 1-year warranty on wired electrified components, this lock is a dependable investment for enhancing security in any setting.
KIT – Grade 1 Storeroom, Cylindrical Lock, Sparta Lever, FSIC (Schlage Full Sized IC), C Keyway (1-Bitted Matte Black Core 622), 2-3/4in Backset, UL, ANSI Strike, 622/US19 Matte Black
Notice: The info below is not item specific.
Beyond grade 1 performance is the hallmark of the mechanical and electrified ND series locks. These locks are put through extreme levels of testing and are proven to withstand 3,100 in-lb. of abusive lever torque-more than 2-1/2 times the grade 1 standard requirement. Offset lever pull testing up to 1,600 lbs. assures you of the lock’s superb resistance against pry bar attacks. More than strong, ND series is built to last and shows nearly zero droop or wobble after 16 million cycles. All ND series locks including electronic functions, ligature-resistant trims, and ground-breaking, high-visibility status indication trims use the common cylindrical ANSI 161L door preparation making them easily interchangeable. They are ideal for all new construction and retrofit applications where grade 1 strength and security are desired.
Features:
- No access with minimum 3,100 in-lbs of lever torque (2.6x BHMA, for general abuse)
- No access with minimum 1,600 lbs of offset lever pull (8x BHMA, for pry-bar attacks)
- No access with minimum 100 vertical impacts (20x BHMA, for sledgehammer attacks)
- Near-zero droop and wobble beyond 16 million cycles (after 16x BHMA) – without the use of set screws or O-rings
- Latch retraction with up to 200 pound preload (4x BHMA) for confident operation in warped and preloaded doors
- Cast steel spindle construction exceeding 16 million cycles
- Withstood aggressive Schlage development testing including lever-snap and abusive cycling
- 31 mechanical functions
- 6 wired functions with:
- Autodetecting 12-24V DC input
- Switch-selectable EL/EU operation
- Modular request to exit (RX)
- 0.230A max/0.010A holding current
- Available in 10 finishes, 5 lever designs, and 2 rose designs
- Multiple key systems available – open, patented, restricted, geographic exclusive, UL437
- Support for 10 non-Schlage cylinders including Best, Corbin Russwin, Medeco, Sargent and Yale
- Certifications: Exceeds BHMA A156.2 requirements for grade 1 cylindrical locks. Exceeds BHMA A156.25 requirements for indoor electrified locks.
Specifications:
- Material: Modular design of zinc and steel components plated for corrosion protection
- Door thickness: Standard: 1-5⁄8″ (41 mm) to 2-1⁄8″ (54 mm) Optional: 1-3⁄8″ (35 mm) – 6″ (152 mm) EE, EO, EI, ED configurations
- Handing: Non-handed
- Backset: Standard: 2-3⁄4″ (70 mm). Optional: 2-3⁄8″, 3-3⁄4″, 5″ (60, 92, 127 mm)
- Latch bolt: Standard: 1⁄2″ (12 mm) throw spring latch or deadlatch (stainless steel). Optional: 3⁄4″ (19 mm) throw anti-friction deadlatch available for pairs of doors
- Strike: Standard: ANSI curved lip: 1-1⁄4″ x 4-7⁄8″ x 1-3⁄16″ (32 mm x 124 mm x 30 mm). Optional: T Strike, ANSI strikes with alternative lip lengths, dust box options.
- Keying Formats:
- Standard: 6-pin Conventional cylinder with two patented keys
- Optional: FSIC, SFIC, and 7-pin SL cylinder formats plus less cylinder options made to fit non-Schlage cylinders from Best, Corbin Russwin, Medeco, Sargent and Yale.
- Access security:
- Standard: 6-pin, patented Everest 29 S123 keyway
- Optional: Open, restricted, Primus®, master keying, and construction keying
- Input voltage: Autodetecting 12-24V DC, +/- 10%
- Operating mode: Fail safe or fail secure via switch on chassis
- Current draw: 0.23 amps maximum; 0.01 amps holding
- Request to Exit: Modular – 3A @ 125VAC / 2A @ 30VDC
- Wired electrified:
- Warranty: 10 years mechanical, 1 year wired electrified.
Lever Styles:
- ATH: Athens Width: 4.56″. Projection: 3.31″
- BRK: Boardwalk Width: 4.94″. Projection: 3.06″
- BRW: Broadway Width: 4.50″. Projection: 3.06″
- LAT: Latitude Width: 4.50″. Projection: 3.13″
- LON: Longitude Width: 4.94″. Projection: 3.13″
- OME: Omega Width: 5.06″. Projection: 3.31″
- RHO: Rhodes Width: 4.56″. Projection: 2.94″
- SPA: Sparta Width: 4.94″. Projection: 3.50″
- TLR: Tubular Width: 4.94″. Projection: 3.00″
- Rose Standard: Diameter: 3.44″
- Return to door meets 1⁄2″ requirement for Boardwalk (BRK), Longitude (LON), Omega (OME), Rhodes (RHO), Sparta (SPA) and Tubular (TLR) levers.
Mechanical Non-Keyed Functions:
- ND10: Passage latch
- ANSI F75
- Levers both sides; springlatch
- Latch retracted by lever from either side at all times
- Inside lever always free for immediate egress
- ND12: Exit lock
- ANSI F89
- Levers both sides; deadlatch
- Outside lever always fixed; latch retracted by inside lever
- Inside lever always free for immediate egress
- ND25: Exit lock with exterior blank plate
- Blank plate outside; lever inside; deadlatch
- Latch retracted by inside lever
- Inside lever always free for immediate egress
- ND30: Patio lock
- ANSI F77
- Lever outside; push button in lever inside; springlatch
- In unlocked state latch is retracted by either lever
- Outside lever is made inoperative by pushing button on inside lever
- Rotating inside lever retracts latch and releases button unlocking outside lever; closing door also unlocks preventing lockout
- Inside lever always free for immediate egress
- ND40: Bath/bedroom privacy lock
- ANSI F76
- Lever with emergency release recessed slot outside; push button in lever inside; springlatch
- In unlocked state latch is retracted by either lever
- Outside lever is made inoperative by pushing button on inside lever
- Rotating inside lever retracts latch and releases button unlocking outside lever; closing door also unlocks preventing lockout
- Emergency unlock: an emergency key (sold separate) or small, flat screwdriver inserted in outside lever and turned releases button to unlock
- Inside lever always free for immediate egress
- Note: Locks ordered with indicator trim fit 1-3/4″ doors. Sold separate spacer kits allow application to doors 1-3/8″ to 1-11/16″.
- To order an emergency key use part number 35-270
- ND44: Hospital privacy lock
- Emergency turn in lever outside; push button in lever inside; springlatch
- In unlocked state latch is retracted by either lever
- Outside lever is made inoperative by pushing button on inside lever
- Rotating inside lever retracts latch and releases button unlocking outside lever; closing door also unlocks preventing lockout
- Emergency unlock: rotating emergency turn in outside lever releases button to unlock
- Inside lever always free for immediate egress
- Note: Locks ordered with indicator trim fit 1-3/4″ doors. Sold separate spacer kits allow application to doors 1-3/8″ to 1-11/16″.
- ND45: Time out lock with Vandlgard
- Spring-loaded push button in lever outside; lever inside; springlatch
- In unlocked state latch is retracted by either lever
- Caretaker side: pushing and holding button enables Vandlgard® feature; detention side lever will rotate without engaging latch
- Releasing manually held button enables inside lever to re-engage with latch and open the door
- ND170: Single dummy trim
- Fixed lever one side only; no latch or chassis
- Used for door pull or matching inactive trim
- ND172: Double dummy trim
- Fixed levers-both sides; no latch or chassis
- Used for door pull or matching inactive trim
- Note: Latch cover plates available. Order part number 47269199.
Mechanical Keyed Functions:
- ND25 x 70: Classroom exit lock
- ANSI F113
- Blank plate outside; lever with cylinder inside; deadlatch
- In unlocked state latch is retracted by inside lever
- Outside always secure; inside lever is made inoperative by key inside
- Key inside retracts latch and unlocks inside lever
- ND25 x 80: Storeroom exit lock
- ANSI F112
- Blank plate outside; lever with cylinder inside; deadlatch
- Outside always secure; inside lever is always fixed
- Key inside retracts latch but does not unlock lever
- ND50: Entrance/office lock
- ANSI F82
- Lever with key cylinder outside; push button in lever inside; deadlatch
- In unlocked state latch is retracted by either lever
- Outside lever is made inoperative by pushing button on inside lever; key outside does not lock
- Key outside or rotating inside lever retracts latch and releases button unlocking outside lever
- Inside lever always free for immediate egress
- Note: Locks ordered with indicator trim fit 1-3/4″ doors. Sold separate spacer kits allow application to doors 1-3/8″ to 1-11/16″.
- ND53: Entrance lock
- ANSI F109
- Lever with key cylinder outside; push/turn button in lever inside; deadlatch
- In unlocked state latch is retracted by either lever
- Outside lever is made inoperative by pushing button or pushing and turning button on inside lever; key outside does not lock
- Pushed button unlocking: key outside or rotating inside lever retracts latch and releases button unlocking outside lever Pushed/turned button unlocking: key outside or rotating inside lever retracts latch but does not unlock outside lever; rotate inside button to start position to allow button release and unlocking by key or by rotating inside lever
- Inside lever always free for immediate egress
- Caution: Egress without fully releasing the push/turn button can result in lock-out situations.
- Note: Locks ordered with indicator trim fit 1-3/4″ doors. Sold separate spacer kits allow application to doors 1-3/8″ to 1-11/16″.
- ND60 with XN12-001: Vestibule lock with interior unlocking only
- Lever outside; lever with key cylinder inside; deadlatch
- In unlocked state latch is retracted by either lever
- Outside lever is locked or unlocked by key inside
- Inside lever always free for immediate egress
- ND70: Classroom lock, exterior lockdown only
- ANSI F84
- Lever with key cylinder outside; lever inside; deadlatch
- In unlocked state latch is retracted by either lever
- Outside lever is locked or unlocked by key outside
- Inside lever always free for immediate egress
- ND73: Corridor lock
- ANSI F90
- Lever with key cylinder outside; push button in lever inside; deadlatch
- In unlocked state latch is retracted by either lever
- Outside lever is made inoperative by pushing button on inside lever or by key outside
- When locked by pushed button: rotating inside lever retracts latch and releases button unlocking outside lever; closing door also unlocks preventing lock-out When locked by key: rotating inside lever retracts latch but outside lever remains fixed until unlocked by key outside
- Inside lever always free for immediate egress
- ND80: Storeroom lock
- ANSI F86
- Lever with key cylinder outside; lever inside; deadlatch
- Outside lever always fixed; latch retracted by inside lever
- Key in outside lever retracts latch only
- Inside lever always free for immediate egress
- ND81: Accessible storeroom lock
- ANSI F86
- Lever with key cylinder outside; lever inside; deadlatch
- Outside lever is always fixed when key is not present; latch retracted by inside lever
- Key outside turned counter-clockwise retracts latch; 180-degree clockwise rotation of key allows outside lever to retract latch
- Inside lever always free for immediate egress
- ND85: Faculty restroom lock
- ANSI F93
- Lever with conventional indicator cylinder outside; push button in lever inside; deadlatch
- Entrance by key only; outside lever always fixed; latch retracted by inside lever
- Push button on inside lever activates a locking pin that extends from the cylinder face to prohibit use of operating keys and indicate that the room is in use
- Turning inside lever or closing door releases the locking pin and push button to allow normal use of operating keys
- Emergency unlock: use of an emergency key (sold separate) is required to override the locking pin and unlock from the outside when push button is activated
- Inside lever always free for immediate egress
- Note: Available with Conventional KIL indicator cylinder only. To order a spanner key to enable lockout feature use part number 35-251.
- To order an emergency key use part number 35-102.
- ND91: Vandlgard entrance/office lock
- ANSI F82
- Lever with key cylinder outside; push button in lever inside; deadlatch
- In unlocked state latch is retracted by either lever
- Outside is made inoperative by pushing button on inside lever; key outside does not lock, Vandlgard allows outside lever to rotate freely when locked
- Key outside or rotating inside lever retracts latch and releases button unlocking outside lever
- Inside lever always free for immediate egress
- Note: Locks ordered with indicator trim fit 1-3/4″ doors. Sold separate spacer kits allow application to doors 1-3/8″ to 1-11/16″.
- ND92: Vandlgard entrance lock
- ANSI F109
- Lever with key cylinder outside; push/turn button in lever inside; deadlatch
- In unlocked state latch is retracted by either lever
- Outside lever is made inoperative by pushing button or pushing and turning button on inside lever; key outside does not lock, Vandlgard® allows outside lever to rotate freely when locked
- Pushed button unlocking: key outside or rotating inside lever retracts latch and releases button unlocking outside lever Pushed/turned button unlocking: key outside or rotating inside lever retracts latch but does not unlock outside lever; rotate inside button to start position to allow button release and unlocking by key or by rotating inside lever
- Inside lever always free for immediate egress
- Caution: Egress without fully releasing the push/turn button can result in lock-out situations.
- Note: Locks ordered with indicator trim fit 1-3/4″ doors. Sold separate spacer kits allow application to doors 1-3/8″ to 1-11/16″.
Mechanical Keyed Functions:
- ND94: Vandlgard classroom lock, exterior lockdown only
- ANSI F84
- Lever with key cylinder outside; lever inside; deadlatch
- In unlocked state latch is retracted by either lever
- Outside lever is locked or unlocked by key outside; Vandlgard allows outside lever to rotate freely when locked
- Inside lever always free for immediate egress
- ND96: Vandlgard storeroom lock
- ANSI F86
- Lever with key cylinder outside; lever inside; deadlatch
- Outside lever always inoperative; Vandlgard allows outside lever to rotate freely when locked
- Key in outside lever retracts latch only
- Inside lever always free for immediate egress
- ND97: Vandlgard corridor lock
- ANSI F90
- Lever with key cylinder outside; push button in lever inside; deadlatch
- In unlocked state latch is retracted by either lever
- Outside lever is made inoperative by pushing button on inside lever or by key outside; Vandlgard allows outside lever to rotate freely when locked
- When locked by pushed button: rotating inside lever retracts latch and releases button unlocking outside lever; closing door also unlocks preventing lock-out When locked by key: rotating inside lever retracts latch but outside lever remains fixed until unlocked by key outside
- Inside lever always free for immediate egress
Mechanical Keyed, Double Cylinder Functions:
- ND60: Vestibule lock
- ANSI F88
- Lever with key cylinder both sides; deadlatch
- In unlocked state latch is retracted by either lever
- Outside lever is made inoperative by key inside; key outside does not lock
- Key outside retracts latch but cannot unlock outside lever; only key inside unlocks
- Inside lever always free for immediate egress
- Note: Available with optional instruction rose identifying key rotation direction for rapid lockdown. 626 finish only.
- To order with instruction rose specify function and note XN12-035 as a special option
- ND66: Store lock
- ANSI F91
- Lever with key cylinder both sides; deadlatch
- In unlocked state latch is retracted by either lever
- Key in either lever locks or unlocks both levers
- Caution: Double cylinder locks on any door, in any structure which is used for egress are a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only.
- ND70 x 80: Classroom by storeroom lock
- Lever with key cylinder both sides; deadlatch
- In unlocked state inside lever is always fixed; latch retracted by outside lever
- Outside lever is locked or unlocked by key outside; key inside retracts latch but does not unlock either lever
- Caution: Double cylinder locks on any door, in any structure which is used for egress are a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only
- ND72 with XN12-002: Communicating lock
- ANSI F80
- Lever with key cylinder both sides; deadlatch
- In unlocked state latch is retracted by either lever
- Key in either lever makes inoperative only that lever
- Key in either lever retracts the latch and unlocks only that lever
- Caution: Double cylinder locks on any door, in any structure which is used for egress are a life safety hazard intimes of emergency and their use is not recommended. Installation should be in accordance with existing codes only.
- To order, specify function and note XN12-002 as a special option.
- ND72 with XN12-003: Vandlgard communicating lock
- ANSI F80
- Lever with key cylinder both sides; deadlatch
- In unlocked state latch is retracted by either lever
- Key in either lever makes inoperative only that lever; Vandlgard allows locked lever to rotate freely when locked
- Key in either lever retracts the latch and unlocks only that lever
- Caution: Double cylinder locks on any door, in any structure which is used for egress are a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only.
- To order, specify function and note XN12-003 as a special option.
- ND78: Classroom security lock (180-degree lockdown)
- ANSI F110
- Lever with key cylinder both sides; deadlatch
- In unlocked state latch is retracted by either lever
- Outside lever is made inoperative by rotating key in either lever 180 degrees counterclockwise and returning to start position
- Unlock outside lever by rotating key 180 degrees clockwise in either lever and returning to start position
- Inside lever always free for immediate egress
- Locks ordered in 626 finish come standard with instruction rose (47342586) identifying key rotation direction for rapid lockdown. Other finishes receive a standard rose.
- Note: Locks ordered with indicator trim fit 1-3/4″ doors. Sold separate spacer kits allow application to doors 1-3/8″ to 1-11/16″.
- ND82: Institution lock
- ANSI F87
- Lever with key cylinder both sides; deadlatch
- Both levers are always fixed
- Key in either lever retracts latch only
- Caution: Double cylinder locks on any door, in any structure which is used for egress are a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only.
- ND93: Vandlgard vestibule lock
- ANSI F88
- Lever with key cylinder both sides; deadlatch
- In unlocked state latch is retracted by either lever
- Outside lever is made inoperative by key inside; key outside does not lock; Vandlgard allows outside lever to rotate freely when locked
- Key outside retracts latch but cannot unlock outside lever; only key inside unlocks
- Inside lever always free for immediate egress
- Note: Available with optional instruction rose identifying key rotation direction for rapid lockdown. 626 finish only.
- To order with instruction rose specify function and note XN12-035 as a special option.
- ND98: Vandlgard classroom security lock (180-degree lockdown)
- ANSI F110
- Lever with key cylinder both sides; deadlatch
- In unlocked state latch is retracted by either lever
- Outside lever is made inoperative by rotating key in either lever 180 degrees counterclockwise and returning to start position; Vandlgard allows outside lever to rotate freely when locked
- Unlock outside lever by rotating key 180 degrees clockwise in either lever and returning to start position
- Inside lever always free for immediate egress
- Locks ordered in 626 finish come standard with instruction rose (47342586) identifying key rotation direction for rapid lockdown. Other finishes receive a standard rose.
- Note: Locks ordered with indicator trim fit 1-3/4″ doors. Sold separate spacer kits allow application to doors 1-3/8″ to 1-11/16″.
Finishes:
- 605/US3 – Bright brass
- 606/US4 – Satin brass
- 612/US10 – Satin bronze
- 613/US10B – Oil rubbed bronze
- 619/US15 – Satin nickel
- 622/US19 – Matte black
- 625/US26 – Bright chrome
- 626/US26D – Satin chrome
- 626AM – Satin chrome, antimicrobial
- 643e/716 – Aged bronze
Attributes
Alternate Codes: ND80-RD-SPA-622 C, ND80RDSPA622 C, ND80RDSPA622C, SCHND80RDSPA622 C, SCHND80RDSPA622 C-KWY KD, SCHND80R SPA 622 C-KWY KD
Category: Commercial Locks, Cylindrical Levers, Lock Sets
Cylinder Type: 6-Pin, FSIC – Schlage
Door Application: Cylindrical Levers
Finish Code: 622
Finish Color: Black, Flat Black, Flat Black Coated, Matte Black
Fire Rated: Yes
Fire Rating: 180 min
Function: Storeroom
Keying: 1-Bitted
Keyway: Schlage C
Lever Design: Sparta
Series: ND
Reviews
There are no reviews yet.
