Description

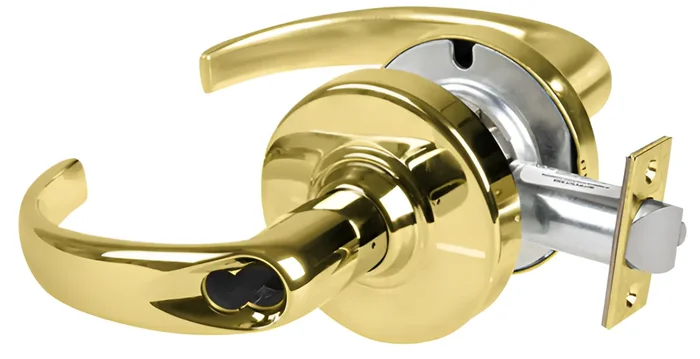

Schlage ALX80-B-SPA-605 234 Grade 2 Sparta Lever, SFIC Prep, 2-3/4in Backset, ANSI Strike, Bright Brass
Schlage Lock Company ALX80-B-SPA-605 234 KIT offers exceptional security with its Grade 2 Storeroom Sparta Lever design. Engineered with a single, patent-pending chassis, this lock supports most functions and all cylinder applications, making it a versatile choice for various settings. The stainless steel latch bolt and deep-drawn spindles provide unmatched durability, featuring five points of lever engagement and Grade 1 compression springs that eliminate droop and wobble. This modular lock facilitates in-field function setup and allows for easy customization with its field-selectable Vandlgard feature. Designed for doors with a thickness of 1-3/8″ to 1-3/4″, installation is straightforward, thanks to captured screws that eliminate the risk of losing small parts. With an ANSI strike and a standard 2-3/4″ backset, the ALX80 is built to exceed industry standards for lever and spindle strength. The lever style, Sparta, combines aesthetic appeal with robust functionality, perfect for commercial applications. It accommodates various cylinder formats, including Schlage and competitive options, ensuring high security when paired with Primus XP cylinders. Backed by a 10-year limited warranty and fire-rated for 180 minutes, this lock is a reliable and stylish addition to any security system.
KIT – Grade 2, Storeroom Sparta Lever, SFIC Prep (Small Format IC, Less Core), 2-3/4in Backset, ANSI Strike, 605/US3 Bright Brass
Notice: The info below is not item specific.
ALX Series is a grade 2 lock unlike any other. Designed to exceed expectations, it features a single, patent pending chassis design that supports most functions and all cylinder applications. As a modular lock, ALX series enables in-field function set up or exchange and a field-selectable Vandlgard feature on all locking functions. Exceptional durability comes from a stainless steel latch bolt and deep-drawn spindles with 5 points of lever engagement and grade 1 compression springs that prevent droop and wobble. Perfectly suited to the ND grade 1 series, ALX also allows you to seamlessly suite between the two to gain grade 1 strength, security and functionality when and where you need it.
Features:
- Exceeds grade 2 strength: Stainless steel latchbolt.
- Expanded cylinder support:
- Accepts all Schlage plus five competitive cylinder formats.
- High security locking when used with Primus XP UL 437 listed cylinders.
- Maximum utility:
- One chassis fits all functions and cores to minimize inventory.
- Flexible purchase options: buy as factory configured, lock less levers, or as kits for on site configuration.
- Exceptional durability:
- Deep-drawn spindle with 5 points of lever engagement prevents droop and wobble.
- Grade 1 compression springs.
- Extreme installation simplicity:
- Accommodates 1-3/8″ to 1-3/4″ door thickness with minimal chassis adjustment.
- Captured screws in latch, strike and inside spring cage eliminate small, loose parts.
- Function flexibility:
- Patent pending chassis design allows quick, in-field function set up.
- Field reversible Vandlgard® to non-Vandlgard locked lever engagement.
- Expansive lever offering:
- 10 total designs. (Athens, Boardwalk, Broadway, Latitude, Longitude, Omega, Rhodes, Saturn, Sparta, & Tubular.)
- Perfectly suited to Schlage ND Series grade 1 locks.
Specifications:
- Chassis Material: Steel, zinc dichromated for corrosion resistance
- Chassis Door thickness: Standard: 1 3⁄8″ to 1 3⁄4″
- Trim Handing: Non-handed
- Trim Levers: Pressure cast zinc, plated to match product finish specification
- Trim Rose: Wrought brass, bronze or zinc plated to match finish specification
- Backset:
- Standard: 2 3⁄4″
- Optional: 2 3⁄8″, 3 3⁄4″, 5″
- Faceplate:
- Standard: 1 1⁄8″ x 2 1⁄4″ square corners
- Optional: Multiple options with square or radius corners
- Latch:
- Standard: 7⁄8″ bolt diameter, up to 1″ housing diameter, 1⁄2″ throw in stainless steel
- Optional: 1″ bolt diameter with 1⁄2″ throw, 3⁄4″ anti-friction fire latch
- Strike: Standard: ANSI Curved Lip: 1 1⁄4″ x 4 7⁄8″ x 1 3⁄16″. Optional: T strike
- Keying:
- Cylinder format: 6-pin Conventional (standard); also available in FSIC, SFIC and 7-pin SL cylinder formats plus less cylinder options designed to fit competitive cores from Sargent and Corbin Russwin.
- Keying: Standard: Everest 29 S123 patented open keyway, keyed different (KD). Optional: Classic open, Everest 29 restricted, and legacy keyways.
- Certifications: Certified A156.2-2011 series 4000, grade 2; exceeds standard for lever and spindle strength and durability
- Warranty: 10-year limited.
Lever Styles:
- ATH: Athens
- Width Dimensions: 4 9⁄16″
- Projection Dimensions: 3 5⁄16″
- BRK: Boardwalk
- Width Dimensions: 4 15⁄16″
- Projection Dimensions: 3 1⁄16″
- BRW: Broadway
- Width Dimensions: 4 1⁄2″
- Projection Dimensions: 3 1⁄16″
- LAT: Latitude
- Width Dimensions: 4 1⁄2″
- Projection Dimensions: 3 1⁄8″
- LON: Longitude
- Width Dimensions: 4 15⁄16″
- Projection Dimensions: 3 1⁄8″
- OME: Omega
- Width Dimensions: 5 1⁄16″
- Projection Dimensions: 3 5⁄16″
- RHO: Rhodes
- Width Dimensions: 4 9⁄16″
- Projection Dimensions: 2 15⁄16″
- SAT: Saturn
- Width Dimensions: 4 7⁄16″
- Projection Dimensions: 2 15⁄16″
- SPA: Sparta
- Width Dimensions: 4 15⁄16″
- Projection Dimensions: 3 1⁄2″
- TLR: Tubular
- Width Dimensions: 4 15⁄16″
- Projection Dimensions: 3″
- Rose: Standard. Diameter – 3 7⁄16″
Non-Keyed Functions:
- ALX10: Passage latch
- ANSI F75
- No key; plain lever both sides; spring latch
- Both levers always unlocked
- ALX40/ALXV40: Bath/bedroom privacy lock
- ANSI F76
- No key; emergency access coin turn outside; push button inside; spring latch
- Inside push button locks outside lever
- Turn inside lever or close door to release button and prevent lock-out; outside coin turn provides emergency access
- Field selectable Vandlgard® feature
- Inside lever is always free for immediate egress
- ALX44/ALXV44: Hospital privacy lock
- No key; emergency turn-button outside; push button inside; spring latch
- Inside push button locks outside lever
- Turn inside lever or close door to release button and prevent lock-out; outside turn button provides emergency access
- Field selectable Vandlgard® feature
- Inside lever is always free for immediate egress
- ALX170: Single dummy trim
- No key; rigid plain lever outside; no hardware inside; no latchbolt
- Use as door pull or matching inactive trim
- Note: Not available for in-field function changes.
- ALX172: Double dummy trim
- No key; rigid, plain lever both sides; no latch
- Use as door pull or matching inactive trim
- Notes: Latch cover available. Not available for in-field function changes.
Single Cylinder Deadbolt Functions:
- ALX50/ALXV50: Entrance/office lock
- ANSI F82
- Key cylinder outside; push button inside; deadlatch
- Inside push button locks outside lever
- Unlock with key outside or by rotating inside lever
- Field selectable Vandlgard feature
- Inside lever always free for immediate egress
- ALX53/ALXV53: Entrance lock
- ANSI F109
- Key cylinder outside; push/turn button inside; deadlatch
- Inside button locks outside lever by pushing button or pushing and turning button
- Pushed button: unlock with key outside or by rotating inside lever
- Pushed/turned button: key outside retracts latch only; unlock by returning inside button to home position then using key or rotating inside lever
- Field selectable Vandlgard feature
- Inside lever always free for immediate egress
- ALX70/ALXV70: Classroom lock
- ANSI F84
- Key cylinder outside; plain lever inside; deadlatch
- Key in outside lever locks or unlocks outside lever
- Field selectable Vandlgard® feature
- Inside lever always free for immediate egress
- ALX80/ALXV86: Storeroom lock
- ANSI F86
- Key cylinder outside; plain lever inside; deadlatch
- Outside lever always fixed
- Key can retract the latch
- Field selectable Vandlgard feature
- Inside lever always free for immediate egress
Conventional Cylinder:
- P6: 6-pin Conventional (standard)
- Z: SL 7-pin Conventional (A2 pinning)
- L: Less Conventional cylinder
- L-C06: Less cylinder, made to fit Corbin 2000-033
- L-SAR: Less cylinder, made to fit Sargent C11-1, C10-1
Full Size Interchangeable Core (FSIC):
- R: 6-pin FSIC (full size)
- M: SL 7-pin FSIC (A2 pinning)
- J: Less FSIC
- J-C06: Less FSIC, made to fit Corbin 8000
- J-C07: Less FSIC, made to fit Corbin 8000-7
- J-SAR: Less FSIC, made to fit Sargent 6300
- T: Refundable construction FSIC
Small Format Interchangeable Core (SFIC):
- G7: 7-pin SFIC (slide capping)
- B: Less SFIC
- BDC: Disposable construction SFIC
- H: Refundable construction SFIC
Finishes:
- 605/US3 – Bright brass
- 606/US4 – Satin brass
- 612/US10 – Satin bronze
- 613/US10B – Oil rubbed bronze
- 619/US15 – Satin nickel
- 622/US19 – Matte black
- 625/US26 – Bright chrome
- 626/US26D – Satin chrome
- 626AM – Satin chrome, antimicrobial
- 643e – Aged bronze
Attributes
Alternate Codes: ALX80-B-SPA-605 234, ALX80B-SPA605 234, ALX80BSPA605 234, ALX80BSPA605234, ALX80B-SPA605 C 234, ALX80BSPA605C234, SCHALX80B-SPA605 234, SCHALX80BSPA605 234, SCHALX80B-SPA605 C 234
Category: Commercial Locks, Cylindrical Levers, Lock Sets
Cylinder Type: Less Core, SFIC
Door Application: Cylindrical Levers
Door Thickness: 1-3/8″-1-3/4″
Faceplate Style: Square Corner
Finish Code: 605
Finish Color: Bright Brass, Polished Brass
Fire Rated: Yes
Fire Rating: 180 min
Function: Storeroom
Handing: Non-Handed
Keyway: Schlage C
Keyway Brand: Schlage
Lever Design: Sparta
Manufacturer: Schlage Lock Company
Series: ALX
