Description

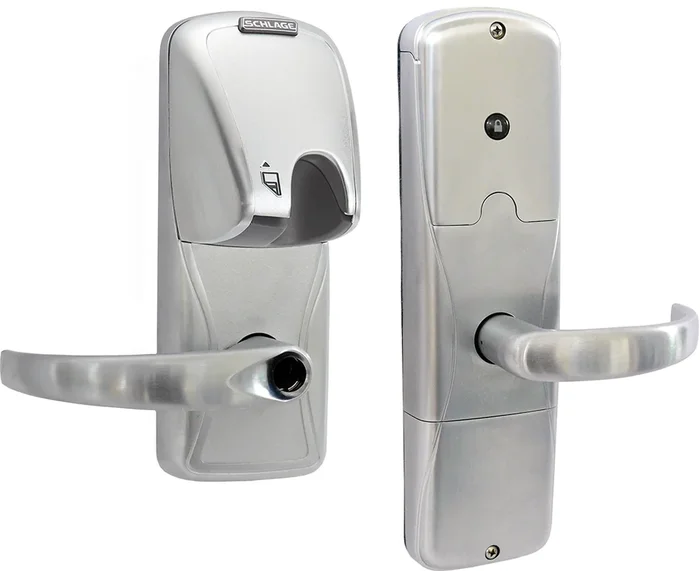

Schlage AD200-CY60MG-SPA626-PD C KIT – Mag-Stripe Stand Alone Apartment Lock, Sparta Lever, Brushed Chrome 626
Schlage Electronic Security AD200-CY60MG-SPA626-PD C KIT is a sophisticated standalone apartment cylindrical lock that combines modern technology with user-friendly features. Designed with a magnetic stripe insert card reader, this lock offers a seamless access experience for up to 5,000 users while maintaining an audit trail of the same capacity, ensuring enhanced security and accountability. The AD200’s modular design allows for easy customization, accommodating various credential readers and lever styles, such as the stylish Sparta lever. Its versatility extends to power options, supporting battery, dual voltage, and a wide operational temperature range from -31° to 151°F. The lock can be upgraded to a networked solution without removal, making it an ideal choice for facilities that may evolve in their access control needs. This Grade 1 certified lock features a 6-pin C keyway and is compatible with major master key systems and exit devices, providing exceptional flexibility in security setups. With visual and audible communication indicators and a robust build to withstand various environmental conditions, the Schlage AD200 is a reliable choice for both residential and commercial applications, offering peace of mind without sacrificing convenience.
KIT – Mag-Stripe (Insert Card) Stand Alone Apartment Cylindrical Lock, Sparta Lever, Key in Lever, 6-Pin C Keyway (0-Bitted Brushed Chrome Cylinder 626), Satin Chrome 626
Notice: The info below is not item specific.
AD Series electronic locks from Schlage are designed to be modular and provide more options to choose from, more functionality in the lock and more compatibility with existing systems. Its patent-pending modular design allows the lock to be customized to fit the needs of an application now, and can change to meet future needs without removing it from the door. Factory orderable options include choices of credential readers, chassis type, locking functions, power options, lever styles and finishes. It also offers a wide selection of features that can be configured in the field to customize your openings. The AD-200 is a simple, economical solution if no access control system currently exists in facility, or for openings that don’t require the control of a networked solution. The AD-200 is easily upgradable to a networked lock if requirements change in the future. On all AD series standalone locks, Schlage has built in many of the incremental features needed in a networked system such as request-to-exit and -enter sensors, interior cover tamper guard, as well as the door position switch. This way, if the customer chooses to network this opening in the future, all the components will be there to make the transition an easy one.
Features:
- Security that’s more intelligent and convenient than traditional mechanical locking devices
- Audit trail reports that allow you to track usage and events
- Update users and access rights at the lock using the keypad or handheld device
- The ability to upgrade to a networked solution without removing the lock from the door
- Available in cylindrical, mortise, mortise deadbolt and exit trim
- Compatible with major brands of master key systems and exit devices
- Hardwired remote push button release capability
- Programmable option for lighted occupancy indication. Available on privacy function locks manufactured after May 2019 with firmware version AD.A.126 or higher.
AD-200 Electronic Lock Specifications:
- Users: Up to 5000
- Audits: Up to 5000
- Credential verification time: ≤ 1 second
- Visual/audible communications: Tri-colored LEDs and audible indicators (field configurable)
- System interface: Handheld device (HHD)
- Power supply: 4AA, 8AA, 12 VDC or 24 VDC
- Voltage range: 4 VDC to 26 VDC
- Max current requirement: Up to 250 mA
- Battery life: Up to 2 yrs with 4AA
- Operating temperature: exterior -31° to 151°F (-35° to 66°C)
- Operating temperature: interior 32° to 120°F (0° to 49°C) (battery)
- Operating humidity: 0 – 100 non-condensing
- Certifications: ANSI/BHMA A156.25, ANSI/BHMA Grade 1, UL 294, UL 10C, FCC Part 15, ADA, RoHS
- Accessories: Handheld device (HHD)
Mechanical Specifications:
- Handing: Handed to order, field reversible
- ANSI standard (meets or exceeds):
- Cylindrical: A156.25 locked outdoor A156.2 series 4000 grade 1
- Mortise: A156.25 locked outdoor A156.13 series 1000 grade 1
- Exit Trim: A156.25 locked outdoor A156.3 grade 1
- Door thickness: 1-3⁄4″ standard, 1-3⁄8″ to 2-3⁄4″ optional (available in 1⁄8″ increments)
- Backset:
- Cylindrical: Standard: 2-3⁄4″. Optional: 2-3⁄8″, 3-3⁄4″, 5″
- Mortise: 2-3⁄4″ only
- Exit Trim: Defined by exit device
- Latch bolt:
- Cylindrical: Standard: 1⁄2″ throw. Optional: 3⁄4″ throw
- Mortise: Standard: 3⁄4″ throw. Optional: 1″ throw on mortise deadbolt
- Exit Trim: Provided by exit device
- Levers: Pressure cast zinc, plated
- Strike: Standard: 1-3⁄16″ lip, ANSI, 1-1⁄4″ x 4-7⁄8″.
- Cylinder and keys: 6-pin Everest 29 S123 keyway conventional cylinder with two patented keys standard.
Functions:
- 40: Privacy
- 50: Office/classroom
- 60: Apartment
- 70: Storeroom
Reader:
- KP: Keypad
- MG: Magnetic stripe (insertion)
- MGK: Magnetic stripe + keypad (insertion)
- MS: Magnetic stripe (swipe)
- MSK: Magnetic stripe + keypad (swipe)
- MT: Multi-technology (125 kHz, 13.56 MHz, NFC)
- MTK: Multi-technology + keypad (125 kHz, 13.56 MHz, NFC)
- Si: HID support
- SiK: HID support + keypad
- DT: Dummy trim
Chassis:
- CY: Cylindrical
- MS: Mortise
- MD: Mortise deadbolt
- 993R: Exit trim – Rim/CVC/CVR
- 993S: Exit trim – SVR
- 993M: Exit trim – mortise
- 993DT: Non-functioning dummy trim for exit
Levers:
- ATH: Athens
- BRK: Boardwalk
- BRW: Broadway
- LAT: Latitude
- LON: Longitude
- RHO: Rhodes
- SPA: Sparta
- TLR: Tubular
Finishes:
- 626 – Satin chrome
- 605 – Bright brass
- 606 – Satin brass
- 612 – Satin bronze
- 619 – Satin nickel
- 625 – Bright chrome
- 643e – Aged bronze
- 626AM – Satin chrome antimicrobial
Attributes
Access Type: Hardwired, Magnetic Stripe, Rights On Lock, Standalone
Alternate Codes: AD200-CY60MG-SPA626-PD, AD200CY60MGSPA626PD, AD200-CY60MG-SPA626-PD C, AD200CY60MGSPA626PDC
Category: Access Control, Commercial Electric Locks, Electric Locks, Lock Sets, Standalone, Standalone Locks, Standalone/Pushbutton Locks
Cylinder Type: 6-Pin Cylinder, Conventional – Schlage, Keyed 5
Door Application: Commercial Electric Locks
Door Bore Prep: Cylindrical Lockset 2.125in Prep
Door Thickness: 1-3/4″
Finish Code: 626
Finish Color: Satin Chrome
Function: Apartment
Grade: Grade 1
Keyway: Schlage C
Lever Design: Sparta
Lock Category: Cylindrical Lockset – Lever
Manufacturer: Schlage Electronic Security
Power Supply Type: Battery, Dual Voltage
Series: AD Networked
Voltage: 12, 24
Voltage Type: VDC – Direct
Resources
- Cut Sheet
- Programing Guide
- Sell Sheet
