Description

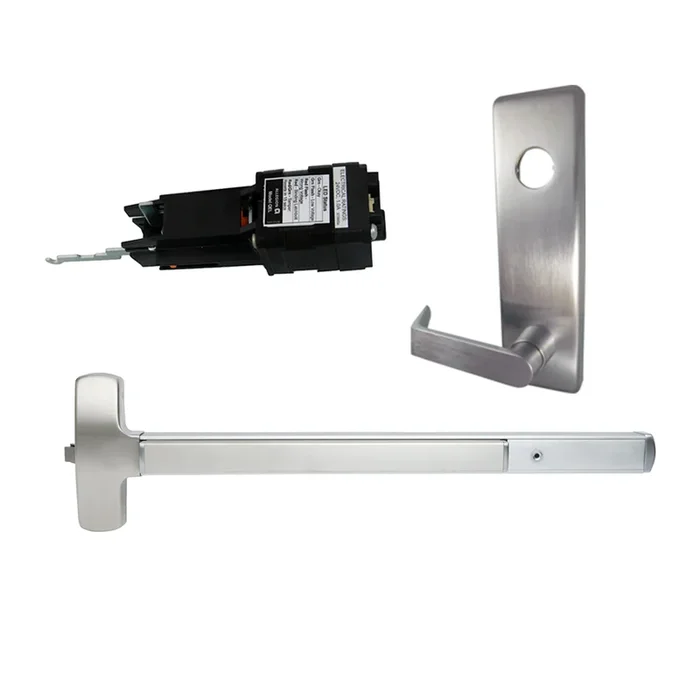

Falcon Lock MEL-F25R-L-NL-DAN-US26D-36-LHR Motorized Electric Latch Retraction Exit Device, Dane Lever Nightlatch Trim 510L-NL
Falcon Lock MEL-F25R-L-NL-DAN-US26D-36-LHR KIT is a sophisticated motorized electric latch retraction (MEL) system designed for optimal performance in multifamily and commercial settings. This fire-rated rim exit device features a sleek satin chrome finish and is UL listed, ensuring both safety and aesthetic appeal. With a left-hand reversible design, this 36-inch exit device provides flexible installation options tailored to your needs. The MEL technology allows for energy-efficient electronic control of the exit device, providing mechanical egress at all times. This system can integrate seamlessly with credential readers, enabling authorized users to access the premises with ease. The modular design simplifies installation, allowing the MEL Conversion kit to be added to existing Falcon 24 or 25 exit devices, enhancing versatility and user convenience. Built-in diagnostics facilitate on-board installation and troubleshooting, while the self-calibrating motor assembly ensures reliable operation. With vandal-resistant features, the device detects tampering and unauthorized attempts to breach security. The MEL-F25R also requires a power transfer option, ensuring a secure and efficient electrical setup. Upgrade your security with Falcon Lock MEL-F25R-L-NL-DAN-US26D-36-LHR KIT, where advanced technology meets robust design for unparalleled safety and functionality.
KIT – Motorized Electric Latch Retraction, Fire Rated Rim Exit Device, Escutcheon x Dane Lever Nightlatch Trim 510L-NL, (Requires 1-1/4 Mortise Cylinder), 36in, LHR Left Hand Reverse/Reversible, UL, 24VDC1 Amp, Grade 1, 626/US26D Satin Chrome
Notice: The info below is not item specific.
Motorized electric latch retraction (MEL) provides energy efficient electronic control of an exit device for an affordable around the door solution. The MEL option is Falcon’s solution of choice for multifamily and commercial real estate facilities where cost competitive electromechanical latch retraction is desired. It is available on most Falcon 24 and 25 Series exit devices (not available for mortise 25-M or F-25-M). These devices always provide mechanical egress. Motorized electric latch retraction can be used with credential readers to unlatch doors momentarily for authorized users, or it can be incorporated with systems to retract latches for extended periods of time to allow free entry. This is a convenient alternative to mechanical dogging. Doors with automatic operators also may use exit devices with electric latch retraction.
Features:
- MEL option available on 24 and 25 Series exit devices, except 25-M (mortise)
- Energy efficient motorized latch retraction enables longer wire runs and the use of a standard Schlage power supply with option board
- Modular design allows for a simplified installation of the available MEL Conversion kit to existing mechanical Falcon 24 or 25 exit devices
- On-board installation and troubleshooting diagnostics built into the motor assembly
- Self-calibrating motor assembly
- Push bar is pulled in electronically when dogged
- Vandal resistant – detects and responds to events of attack and tampering
- A power transfer (EPT, electrified hinge, door loop) provides a wiring path from the door to the frame. If an EPT (Electric Power Transfer) is utilized, the door and frame must be factory prepped.
Requirements:
- The MEL has a low inrush current = 1.0 amps, so it can be used with standard Schlage power supplies. When powering multiple components, verify that the amperage requirement of all components combined does not exceed the power supply output rating.
- The MEL device is compatible with the following equipment: PS900 Series power supplies – PS902, 904, 906, 914; 900 Series Option Boards – 900-2RS, 900-4R and 900-4RL
- A power transfer (EPT, electrified hinge, or door loop) is required and sold separately
- Security monitoring (DM, LM, RX)
- Fail Safe/Fail Secure electric trim (FSA/FSE)
Compatible Options:
- Security monitoring (DM, LM, RX)
- Fail Safe/Fail Secure electric trim (FSA/FSE)
EPT Options:
- EPT-2: Two 18AWG wires with a max rating of 24VDC, 5A or 120 VAC NEC class 3
- EPT-10: Ten 24AWG wires with a max rating of 24VDC, 1A
Stock Sizes:
| Device | Door Size | Door Strike | Min Door Opening Width (Add 3.5″ to standard) |
|---|---|---|---|
| MEL-24-R | 3′ | 299 | 2′ 11″ |
| MEL-24-R | 3’ | 264 | 2′ 10 7⁄8″ |
| MEL-24-R | 3’ | 1439 | 2′ 10 1⁄4″ |
| MEL-24-R | 3’ | 1606 | 2′ 10 5⁄8″ |
| MEL-24-R | 4′ | 299 | 3′ 5″ |
| MEL-24-R | 4′ | 264 | 3′ 4 7⁄8″ |
| MEL-24-R | 4′ | 1439 | 3′ 4 1⁄4″ |
| MEL-24-R | 4′ | 1606 | 3′ 4 5⁄8″ |
| MEL-24-C | 3’ | All | 2′ 10 5⁄8″ |
| MEL-24-C | 4’ | All | 3′ 4 5⁄8″ |
| MEL-24-V | 3’ | All | 2′ 10 5⁄8″ |
| MEL-24-V | 4’ | All | 3′ 4 5⁄8″ |
| MEL-25-R | 3’ | 299 | 2′ 11″ |
| MEL-25-R | 3’ | 264 | 2′ 10 7⁄8″ |
| MEL-25-R | 3’ | 1439 | 2′ 10 1⁄4″ |
| MEL-25-R | 3’ | 1606 | 2′ 10 5⁄8″ |
| MEL-25-R | 4’ | 299 | 3′ 5″ |
| MEL-25-R | 4’ | 264 | 3′ 4 7⁄8″ |
| MEL-25-R | 4’ | 1439 | 3′ 4 1⁄4″ |
| MEL-25-R | 4’ | 1606 | 3′ 4 5⁄8″ |
| MEL-25-C | 3′ | All | 2′ 10 5⁄8″ |
| MEL-25-C | 4’ | All | 3′ 4 5⁄8″ |
| MEL-25-V | 3’ | All | 2′ 10 5⁄8″ |
| MEL-25-V | 4’ | All | 3′ 4 5⁄8″ |
Finishes:
- 605/US3 – Brass, Bright
- 606/US4 – Brass, Satin
- 613/US10B – Bronze, Oil Rubbed
- 619/US15 – Nickel, Satin
- 622/US19 – Black, Matte
- 625/US26 – Chromium, Bright
- 626/US26D – Chromium, Satin
- 629/US32 – Satinless Steel, Bright
- 630/US32D – Satinless Steel, Satin
- 643e/US11 – Bronze, Aged
Attributes
Alternate Codes: FALMELK-F25R-L-NL-DAN-US26D-36-LHR, MEL-F25R-L-NL-DAN-US26D-36-LHR, MELF25RLNLDANUS26D36LHR, MELK-F25R-L-NL-DAN-US26D-36-LHR, MELKF25RLNLDANUS26D36LHR
Category: Electrified Panic Devices, Panic Devices & Exit Alarms
