Description

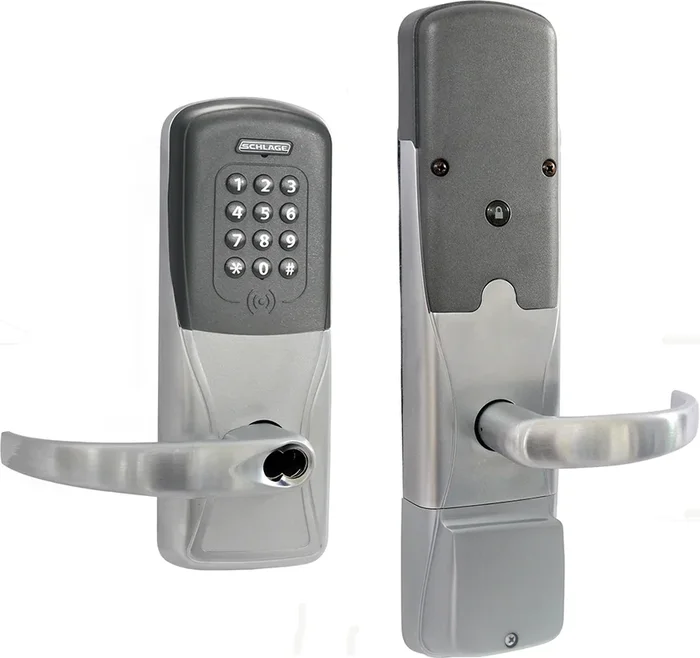

Schlage AD400-MS40MTK-SPA626-BD-8B KIT – Multi-Tech Wireless Mortise Lock, Sparta Lever, Grade 1, Satin Chrome
Schlage Electronic Security AD400-MS40MTK-SPA626-BD-8B KIT is a state-of-the-art multi-technology reader and keypad networked wireless privacy mortise lock designed for high-security environments. Its modular design allows for easy customization to meet both current and future access control needs, making it a versatile choice for commercial applications.Equipped with an 8AA battery kit, this Grade 1 electronic lock features a robust satin chrome finish and a Sparta lever for an elegant yet durable look. The lock supports various credential types, including Schlage MiFare and NFC mobile, ensuring compatibility with existing systems. Installation is simplified thanks to the integrated design that combines all necessary components, including electrified locks and sensors, into one unit. With a communication range of up to 200 feet and a secure AES-128 bit encrypted data transmission, the AD400 guarantees reliable performance even in challenging environments. Its ‘Wake up on Radio’ feature enables centralized lockdown in under 10 seconds while optimizing battery life for up to two years. Field-reversible handing and compatibility with a wide range of accessories enhance its adaptability, making this lock an ideal solution for those seeking a balance of security and convenience.
KIT – Multi-Technology Reader and Keypad Networked Wireless Privacy, Mortise Lock, Sparta Lever, SFIC (Small Format IC), Less Core, 8AA Battery Kit, 2-3/4in Backset, UL, ANSI Strike, Field Reversible Handing, Grade 1, 626/US26D Satin Chrome
Notice: The info below is not item specific.
AD Series electronic locks from Schlage are designed to be modular and provide more options to choose from, more functionality in the lock, and more compatibility with existing access control systems. Its patented modular design allows the lock to be customized to fit the needs of an application now and changed to meet future needs without removing it from the door. To simplify installation, the AD series combines all the hardware components required at the door for a complete access control system into one integrated design that includes the electrified lock, credential reader, request-to-exit, and request-to-enter sensors, door position switch, tamper switch, and more. The AD-400 wireless networked lock gives you many of the key benefits of a hardwired access control system—without the wires. This allows you to secure doors that were traditionally difficult to run wires to in the past and increase the security throughout your facility.
Features:
- Open architecture platform – integrated into most popular physical access control systems through our PACS Alliance program
- Multi-technology credential compatibility includes Schlage MiFare, NFC mobile, and proximity
- Optional support for HID smart and NFC mobile credentials
- Panel interface options ensure seamless communication with the access control system
- Secure encrypted data transmission
- Unique communication protocols won’t interfere with other wireless networks
- ‘Wake up on Radio’ feature enables centralized lockdown in less than 10 seconds while still optimizing battery life up to 2 years
- Non-invasive wireless installation for historic buildings and sensitive areas
- Wireless accessories available for remote, gate, elevator, and portable or temporary (mustering) applications
AD-400 Electronic Lock Specifications:
- Modulation: 900 MHz spread spectrum, direct sequence, 10 channels
- Frequency range: 902-928 MHz
- Transmission/encryption: AES-128 bit key
- Credential verification time: < 1 second
- Wake-Up on Radio: Responds to lock/unlock command from host in less than 10 seconds in battery powered applications (per field configuration)
- Communication range: Up to 200 ft with obstructions (normal building construction), up to 1000 ft clear line of sight
- RF interference avoidance: Configurable dynamic channel switching
- Data rate: RF: 40 kbps
- Visual/audible communications: Tri-colored LED’s and audible indicators (field configurable)
- System interface: RS-485, Wiegand, or Clock & Data via PIM400 to host
- Power supply: 4AA, 8AA, 12 VDC or 24 VDC
- Voltage range: 4 VDC to 26 VDC
- Max current requirement: Up to 250 mA
- Battery life: Up to 2 yrs with 4AA
- Operating temperature: exterior 31° to 151°F (-35° to 66&edg;C)
- Operating temperature: interior 32° to 120°F (0° to 49°C) (battery)
- Operating humidity: 0 – 100% non-condensing
- Certifications: ANSI/BHMA A156.25, ANSI/BHMA grade 1, UL 294, UL10 C, FCC Part 15, ADA, RoHS
- Accessories: Panel interface module (PIM400), handheld device (HHD), remote antennas for PIM400 to extend range, Dry Contact Relay Board (RLBD) may be required for supervised inputs (Wiegand systems)
Mechanical Specifications:
- Handing: Handed to order, field reversible
- ANSI standard (meets or exceeds):
- Cylindrical: A156.25 locked outdoor A156.2 series 4000 grade 1
- Mortise: A156.25 locked outdoor A156.13 series 1000 grade 1
- Exit Trim: A156.25 locked outdoor A156.3 grade 1
- Door Thickness: 1-3⁄4″ standard, 1-3⁄8″ to 2-3⁄4″ optional (available in 1⁄8″ increments)
- Backset:
- Cylindrical: Standard: 2-3⁄4″. Optional: 2-3⁄8″, 3-3⁄4″, 5″
- Mortise: 2-3⁄4″ only
- Latch Bolt:
- Cylindrical: Standard: 1⁄2″ throw. Optional: 3⁄4″ throw
- Mortise: Standard: 3⁄4″ throw. Optional: 1″ throw on mortise deadbolt
- Levers: Pressure cast zinc, plated
- Strike: Standard: 1-3⁄16″ lip, ANSI, 1-1⁄4″ x 4-7⁄8″
- Cylinder and keys: 6-pin Everest 29 S123 keyway Conventional cylinder with two patented keys standard.
Functions:
- 40: Privacy
- 50: Office/classroom
- 60: Apartment
- 70: Storeroom
Reader:
- KP: Keypad
- MG: Magnetic stripe (insertion)
- MGK: Magnetic stripe + keypad (insertion)
- MS: Magnetic stripe (swipe)
- MSK: Magnetic stripe + keypad (swipe)
- MT: Multi-technology (125 kHz, 13.56 MHz, NFC)
- MTK: Multi-technology + keypad (125 kHz, 13.56 MHz, NFC)
- FMK: FIPS 201-1 compliant multi-technology + keypad (125 kHz and 13.56 MHz)
- Si: HID support
- SiK: HID support + keypad
- DT: Dummy trim
Chassis:
- CY: Cylindrical
- MS: Mortise
- MD: Mortise deadbolt
- 993R: Exit trim – Rim/CVC/CVR
- 993S: Exit trim – SVR
- 993M: Exit trim – mortise
- 993DT: Non-functioning dummy trim for exit
Levers:
- ATH: Athens
- BRK: Boardwalk
- BRW: Broadway
- LAT: Latitude
- LON: Longitude
- RHO: Rhodes
- SPA: Sparta
- TLR: Tubular
Finishes:
- 605 – Bright brass
- 606 – Satin brass
- 612 – Satin bronze
- 619 – Satin nickel
- 625 – Bright chrome
- 626 – Satin chrome
- 643e – Aged bronze
- 626AM – Satin chrome antimicrobial
Attributes
Access Type: Keypad, Multi-Technology, Networked, Wireless
Alternate Codes: AD400-MS40MTK-SPA626-BD-8B, AD400MS40MTKSPA626BD8B
Battery Type: 8x, AA, Alkaline
Category: Access Control, Wireless, Wireless Locks
Cylinder Type: Less Core, SFIC
Door Application: Commercial Electric Locks
Door Bore Prep: Cylindrical Lockset 2.125in Prep
Door Thickness: 1-3/4″
Finish Code: 626
Finish Color: Brushed Chrome, Satin Chrome
Function: Privacy
Grade: Grade 1
Keyway: Schlage S123
Lever Design: Sparta
Lock Category: Mortise Lock Trim
Manufacturer: Schlage Electronic Security
Power Supply Type: Battery, Dual Voltage
Series: AD Networked
Voltage: 12, 24
Voltage Type: VDC – Direct
