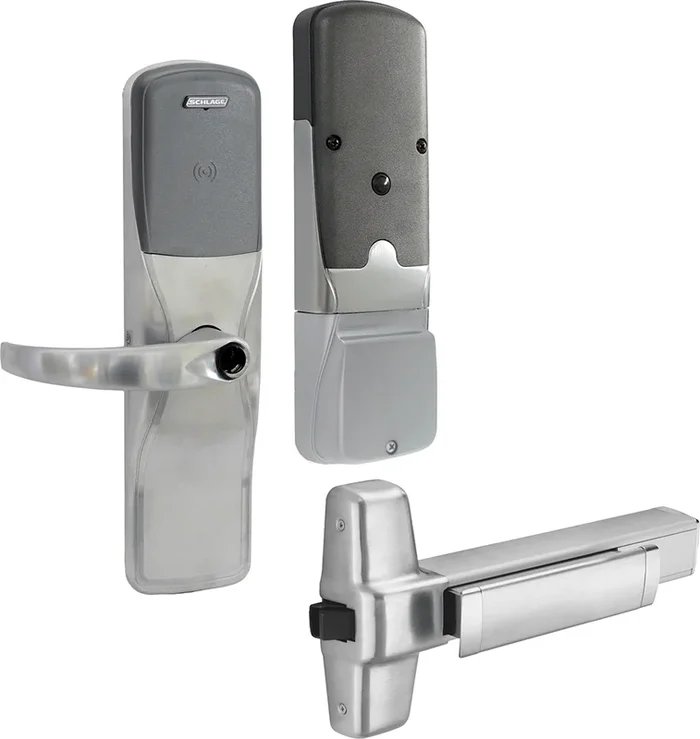

Schlage AD400-993R70MT-SPA626-PD C 8B KIT – Wireless Multi-Tech Reader Exit Trim for RIM/CVR Devices, Grade 1
Schlage Electronic Security AD400-993R70MT-SPA626-PD C 8B KIT is a robust multi-technology reader designed for network wireless access in classrooms and storerooms. This versatile exit trim is compatible with RIM or CVR exit devices and features a stylish Sparta lever, complemented by a brushed chrome finish. With its modular design, the AD Series lock adapts to current and future security needs, eliminating the hassle of door removal for adjustments. The integrated system simplifies installation, combining the lock, credential reader, and various sensors into one unit, providing a complete access control solution. The wireless design eliminates the limitations of traditional hardwired systems, enhancing security throughout your facility. Key benefits include compatibility with Schlage MiFare, NFC mobile, and proximity credentials, along with secure encrypted data transmission. The ‘Wake up on Radio’ feature ensures rapid centralized lockdown while optimizing battery life, which can last up to two years with 8AA batteries. Certified to ANSI/BHMA Grade 1 standards, this lock is built to withstand rigorous use. Designed for versatility, the AD400 accommodates doors from 1-3/8″ to 2-3/4″ thick and is field reversible for easy handing adjustments. Enhance your security with the Schlage AD400-where innovation meets reliability.
KIT – Multi-Technology Reader Network Wireless Classroom/Storeroom, Exit Trim for RIM or CVR (Concealed Vertical Rod/Cable) Exit Devices, Sparta Lever, Key-in-Lever, C Keyway (0-Bitted Brushed Chrome Cylinder 626), 8AA Battery Kit, Field Reversible Handing, Grade 1, 626/US26D Satin Chrome
Notice: The info below is not item specific.
AD Series electronic locks from Schlage are designed to be modular and provide more options to choose from, more functionality in the lock, and more compatibility with existing access control systems. Its patented modular design allows the lock to be customized to fit the needs of an application now and changed to meet future needs without removing it from the door. To simplify installation, the AD series combines all the hardware components required at the door for a complete access control system into one integrated design that includes the electrified lock, credential reader, request-to-exit, and request-to-enter sensors, door position switch, tamper switch, and more. The AD-400 wireless networked lock gives you many of the key benefits of a hardwired access control system—without the wires. This allows you to secure doors that were traditionally difficult to run wires to in the past and increase the security throughout your facility.
Features:
- Open architecture platform – integrated into most popular physical access control systems through our PACS Alliance program
- Multi-technology credential compatibility includes Schlage MiFare, NFC mobile, and proximity
- Optional support for HID smart and NFC mobile credentials
- Panel interface options ensure seamless communication with the access control system
- Secure encrypted data transmission
- Unique communication protocols won’t interfere with other wireless networks
- ‘Wake up on Radio’ feature enables centralized lockdown in less than 10 seconds while still optimizing battery life up to 2 years
- Non-invasive wireless installation for historic buildings and sensitive areas
- Wireless accessories available for remote, gate, elevator, and portable or temporary (mustering) applications
AD-400 Electronic Lock Specifications:
- Modulation: 900 MHz spread spectrum, direct sequence, 10 channels
- Frequency range: 902-928 MHz
- Transmission/encryption: AES-128 bit key
- Credential verification time: < 1 second
- Wake-Up on Radio: Responds to lock/unlock command from host in less than 10 seconds in battery powered applications (per field configuration)
- Communication range: Up to 200 ft with obstructions (normal building construction), up to 1000 ft clear line of sight
- RF interference avoidance: Configurable dynamic channel switching
- Data rate: RF: 40 kbps
- Visual/audible communications: Tri-colored LED’s and audible indicators (field configurable)
- System interface: RS-485, Wiegand, or Clock & Data via PIM400 to host
- Power supply: 4AA, 8AA, 12 VDC or 24 VDC
- Voltage range: 4 VDC to 26 VDC
- Max current requirement: Up to 250 mA
- Battery life: Up to 2 yrs with 4AA
- Operating temperature: exterior 31° to 151°F (-35° to 66&edg;C)
- Operating temperature: interior 32° to 120°F (0° to 49°C) (battery)
- Operating humidity: 0 – 100% non-condensing
- Certifications: ANSI/BHMA A156.25, ANSI/BHMA grade 1, UL 294, UL10 C, FCC Part 15, ADA, RoHS
- Accessories: Panel interface module (PIM400), handheld device (HHD), remote antennas for PIM400 to extend range, Dry Contact Relay Board (RLBD) may be required for supervised inputs (Wiegand systems)
Mechanical Specifications:
- Handing: Handed to order, field reversible
- ANSI standard (meets or exceeds):
- Cylindrical: A156.25 locked outdoor A156.2 series 4000 grade 1
- Mortise: A156.25 locked outdoor A156.13 series 1000 grade 1
- Exit Trim: A156.25 locked outdoor A156.3 grade 1
- Door Thickness: 1-3⁄4″ standard, 1-3⁄8″ to 2-3⁄4″ optional (available in 1⁄8″ increments)
- Backset:
- Cylindrical: Standard: 2-3⁄4″. Optional: 2-3⁄8″, 3-3⁄4″, 5″
- Mortise: 2-3⁄4″ only
- Latch Bolt:
- Cylindrical: Standard: 1⁄2″ throw. Optional: 3⁄4″ throw
- Mortise: Standard: 3⁄4″ throw. Optional: 1″ throw on mortise deadbolt
- Levers: Pressure cast zinc, plated
- Strike: Standard: 1-3⁄16″ lip, ANSI, 1-1⁄4″ x 4-7⁄8″
- Cylinder and keys: 6-pin Everest 29 S123 keyway Conventional cylinder with two patented keys standard.
Functions:
- 40: Privacy
- 50: Office/classroom
- 60: Apartment
- 70: Storeroom
Reader:
- KP: Keypad
- MG: Magnetic stripe (insertion)
- MGK: Magnetic stripe + keypad (insertion)
- MS: Magnetic stripe (swipe)
- MSK: Magnetic stripe + keypad (swipe)
- MT: Multi-technology (125 kHz, 13.56 MHz, NFC)
- MTK: Multi-technology + keypad (125 kHz, 13.56 MHz, NFC)
- FMK: FIPS 201-1 compliant multi-technology + keypad (125 kHz and 13.56 MHz)
- Si: HID support
- SiK: HID support + keypad
- DT: Dummy trim
Chassis:
- CY: Cylindrical
- MS: Mortise
- MD: Mortise deadbolt
- 993R: Exit trim – Rim/CVC/CVR
- 993S: Exit trim – SVR
- 993M: Exit trim – mortise
- 993DT: Non-functioning dummy trim for exit
Levers:
- ATH: Athens
- BRK: Boardwalk
- BRW: Broadway
- LAT: Latitude
- LON: Longitude
- RHO: Rhodes
- SPA: Sparta
- TLR: Tubular
Finishes:
- 605 – Bright brass
- 606 – Satin brass
- 612 – Satin bronze
- 619 – Satin nickel
- 625 – Bright chrome
- 626 – Satin chrome
- 643e – Aged bronze
- 626AM – Satin chrome antimicrobial
Attributes
Access Type: Multi-Technology, Networked, Wireless
Alternate Codes: AD400-993R70MT-SPA626-PD-8B, AD400993R70MTSPA626PD8B, AD400-993R70MT-SPA626-PD C 8B, AD400993R70MTSPA626PDC8B
Battery Type: 8x, AA, Alkaline
Category: Access Control, Wireless, Wireless Locks
Cylinder Type: 6-Pin Cylinder, Conventional – Schlage, Keyed 5
Door Application: Commercial Electric Locks
Door Thickness: 1-3/4″
Exit Device Category: Exit Device Trim, Rim Exit
Finish Code: 626
Finish Color: Brushed Chrome, Satin Chrome
Function: Storeroom
Grade: Grade 1
Keyway: Schlage C
Lever Design: Sparta
Manufacturer: Schlage Electronic Security
Power Supply Type: Battery, Dual Voltage
Series: AD Networked
Voltage: 12, 24
Voltage Type: VDC – Direct
