Description

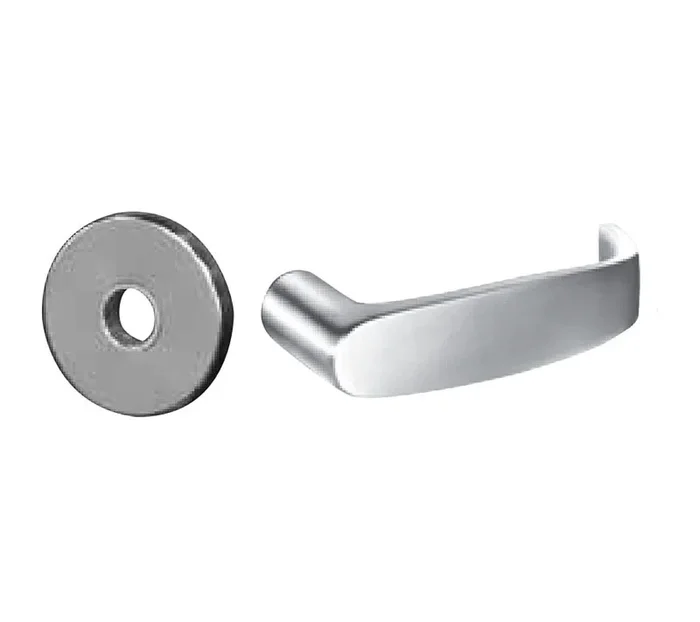

Sargent 60-8255 LNL 26D Mortise Lock
When it comes to strength and durability, SARGENT continues to set standards with the 8200 Mortise lock. The 8200 far surpasses ANSI/BHMA A156.13 Series 1000 Grade 1 standards, making it the strongest and most durable mortise lock in the industry. SARGENT Mortise Locks are designed and constructed with high quality components to provide maximum security, performance and durability
- Backset: 2-3/4″ (70mm) only
- Front adjustable at any angle from flat to beveled 1/8″ (3mm) in 2″ (51mm)
- Hubs for Knobs/Levers
- 7800: Sintered iron copper infiltrated
- 8200: Cold forged steel
- R8200: Investment cast steel
- Auxiliary Deadlatch: – Stainless steel and non-handed
- Specify hand on order; – Easily field reversible (if no hand is specified RH will be provided)
- Strike: Brass, bronze or stainless steel; ANSI Standard; curved lip, non-handed (strike box optional)
- Keys: Two, nickel silver (control key or emergency key must be ordered when required)
- Cylinder: Brass, size #41 (1-1/8″) standard (except for Freewheeling, size #46 (1-3/4″)) size #60 for LFIC and size #70 for SFIC.
- Can Be Master keyed Or Grand Master keyed:
- Construction keying available. LA standard keyway.
- Stile: 4-1/2″ (114mm) minimum stile for 7800/8200/R8200, 4-3/4″ (121mm) minimum stile for electrical function locks.
- Door Prep: ANSI/BHMA A156.115 or A156.115W modified per template.
- Thumbturn: Specify LB for ADA extra large thumbturn.
- Warranty: 10 year limited warranty
- 2 year limited warranty on electrified locks.
- Warranty limited to replacement of lock body and/or components.
Attributes
Alternate Codes: 60-8255LNL26D, 608255LNL26D
Application: Complete Lock
Baa Qualified: Yes
Base Material: Brass or Bronze
Bolt Projection: 3/4″ Latch
Bolt Protection: 3/4″ Latch
Category: Lock Sets, Mortise Locks, Mortise Lock Sets
Country of Origin: Usa
Country of origin: USA
Cylinder Type: Sargent LFIC Less Core
Door Application: Cylindrical Levers
Door Thickness: 1-3/4″
Finish: 626/US26D
Finish Code: 26D
Finish : Satin Chrome
Fire Rated: 2 Hours {B}
Fire Rating: 2 Hours {B}
Function: 55-Office or Entry
Grade: Grade 1
Hand: Field Reversible
Handing: Right Handed
Lever Knob Design: L – Lever
Leverknob Design: L – Lever
Limited Warranty: 10 Years
Lock Face Size: 8″ x 1-1/4″
Origin: USA
Pack Height: 4.38″
Pack Length: 9.25″
Pack Qty: 1
Pack Volume: 227.64 in³
Pack Width: 5.63″
Rose Escutcheon Design: LN – Rose
Roseescutcheon Design: LN – Rose
Screws: Combination
Series: 8200 Line Lever Mortise Locks
Ship Weight: 6.1 lbs.
Std Strike Height: 4-7/8″
Std Strike Number: 82-0110
Std Strike Type: ASA
Std Strike Width: 1-1/4″
Strike Height: 4-7/8″
Strike Number: 82-0110
Strike Type: ASA
Strike Width: 1-1/4″
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
