Von Duprin HD-QELA-2227EO-689-48 KIT – QEL SVR Surface Vertical Rod Exit Device, Exit Only, 48in x 84in, Grade 1
Von Duprin HD-QELA-2227EO-689-48 KIT is a robust surface-mounted vertical rod exit device designed for both single and double doors. This model features Quiet Electric Latch Retraction (QEL) technology, allowing for silent operation, which is particularly beneficial in environments where noise reduction is essential. With a generous length of 48 inches and a height fit for standard doors up to 84 inches, this Grade 1 device is UL listed for panic exit hardware, ensuring safety and compliance with industry standards. The HD-QELA-2227EO accommodates door stiles as narrow as 3 5/8 inches and is equipped with hex key dogging as standard, providing ease of use. Its non-handed design allows for flexible installation, making it suitable for a variety of applications. The device is compatible with various trims and electronic options, including alarm exit kits and monitoring features. Constructed from powder-coated aluminum, the finish not only enhances durability but also gives a sleek appearance. The device operates with deadlocking anti-friction bolts for added security, and it includes a comprehensive screw pack for easy installation on wood and metal doors. Whether you’re a building professional or a knowledgeable homeowner, the Von Duprin HD-QELA-2227EO-689-48 KIT delivers both reliability and performance for your exit hardware needs.

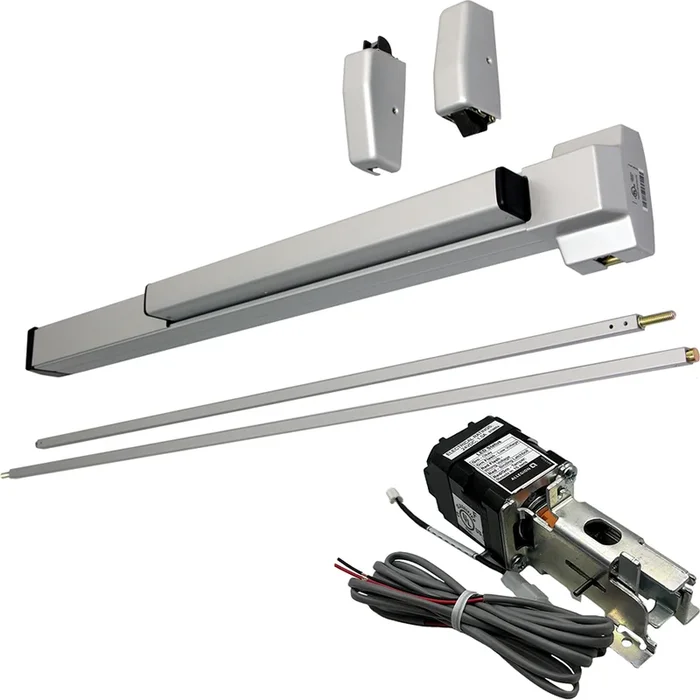

KIT – QEL (Quiet Electric Latch Retraction), SVR Surface Vertical Rod Exit Device, Exit Only No Trim, 48in x 84in, Hex Dogging, Grade 1, 689/SP28 Powder-Coated Aluminum
Notice: The info below is not item specific.
2227 Surface mounted vertical rod exit device for all types of single and double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. Fits door stiles as narrow as 3 5/8″ (92 mm). The device is non-handed.
Features:
- Available for rim and surface-mounted vertical applications
- Several trim and electronic options
- Non-handed design
Specifications:
- Device Functions: Ships ready for all functions, EO, DT, NL, TP, K, L
- Device Lengths:
- 3′ (914 mm) see minimum door opening chart in cut sheet
- 4′ (1219 mm) see minimum door opening chart in cut sheet
- Door Height: 7′ (2134 mm) standard door height. Note: 3′ extension rods available for door heights up to 10′ (3048 mm).
- Device Centerline From Finished Floor: 39 13⁄16″ (1011 mm)
- Center Case Dimensions: 4 5⁄32″ (105 mm) x 3 3⁄16″ (81 mm) x 2 3⁄8″ (60 mm)
- Mechanism Case Dimensions: 2″ (51 mm) x 2 3/8″ (60 mm)
- Projection: Push bar neutral – 3 11/16″ (94 mm) push bar depressed – 2 7/8″ (73 mm)
- Latch Bolt: Deadlocking anti-friction top and bottom bolt, 5⁄8″ (16 mm) throw
- Fasteners and Through Bolts (SNB): Includes screw pack for 1 3/4″ (44 mm) and 2 1/4″ (57 mm) wood and metal doors; optional SNB available for device
- Electrified Options:
- ALK: Alarm exit kit
- CON: Allegion Connect
- LX: Latch bolt monitor switch
- LX-LC: Latch bolt monitoring, low current
- LX-RX: Latch bolt monitoring, request to exit
- LX-RX-LC: Latch bolt monitoring, request to exit low current
- QEL: Quiet electric latch retraction
- RX: Request to exit
- RX2: Double request to exit
- WP-RX: Waterproof request to exit
- Mechanical options:
- GBK: Glass bead kit
- HW: Hurricane device — Wind-Only
- PL: Pullman latch
- LBR: Less bottom rod
- AX: Accessible device, LBR only
- Dogging Feature: Hex key dogging standard
- Dogging Options: LD: less dogging, QEL option available
- Strikes:
- Top: 299 – Dull black
- Bottom: 248L4 and 304L – Unfinished
Minimum Door Opening for 3′ Device:
- 25.875″ (657 mm):
- Stop height: 1⁄2″
- Single door: Yes
- Double door: Vert. x Vert.
- 26.000″ (664 mm):
- Stop height: 5⁄8″
- Single door: Yes
- Double door: Vert. x Vert.
Standard Trim:
- EO: No outside trim
- Exit only
- ANSI: 01
- DT: Dummy Trim
- Trim : 210DT
- Pull when dogged (not recommended for fire device)
- Escutcheon Plate Size: 5-3/8″ x 4-25/32″ x 3/32″ (137 x 121 x 2 mm)
- Projection: 1-31/32″ (42 mm)
- ANSI: 02
- NL: Night latch
- Trim : 210NL
- Key retracts latchbolt
- Rim and 1-1/4″ mortise cylinder
- Escutcheon Plate Size: 5-3/8″ x 4-25/32″ x 3/32″ (137 x 121 x 2 mm)
- Projection: 1-31/32″ (42 mm)
- ANSI: 03
- NL-OP: Night latch
- Trim : 110NL-MD, 110NL-WD
- Key retracts latchbolt, pull required
- ANSI: 03
- Cylinder Type: Rim
- TP: Thumbpiece
- Trim : 230TP
- Key locks and unlocks
- Rim and 1-1/4″ mortise cylinder
- Escutcheon Plate Size: 3″ x 12-1/16″ x 3/32″ (76 x 306 x 2 mm)
- Pull Center to Center: 5-1/2″ (140 mm)
- Projection: 2″ (51 mm)
- ANSI: 05
- K: Knob
- Trim : 2227K
- Key locks and unlocks
- Rim and 1-1/4″ mortise cylinder
- Handed, reversible lever
- Electrified lever operation available
- Escutcheon Plate Size: 3″ x 4-25/32″ x 3/32″ (76 x 121 x 2 mm)
- Projection: 2-15/16″ (75 mm)
- ANSI Function: 08
- L: Lever
- Trim : 2227L
- Key locks and unlocks
- Rim and 1-1/4″ mortise cylinder
- Handed, reversible lever
- Electrified lever operation available
- Escutcheon Plate Size: 3″ x 6-3/8″ x 15/16″ (76 x 162 x 24 mm)
- Projection: 2-5/8″ (67 mm)
- ANSI Function: 08
Finishes:
- 526 – Powder coated chrome
- 622 – Powder coated matte black
- 689 – Powder coated aluminum
- 695 – Powder coated dark bronze
Attributes
Alternate Codes: HD-QELA-2227EO-689-48, HDQELA2227EO68948
Category: Electrified Panic Devices, Panic Devices & Exit Alarms
Certifications: A156.3, ANSI, ANSI/UL 305, BHMA
Device Width: 48″
Dogging: HD – Hex Dogging
Door Application: Panic Devices & Exit Alarms
Electrical Option: Electric Latch Retraction, Quiet
Exit Device Category: Surface Vertical Rod Exit SVR
Finish Code: 689
Finish Color: Aluminum Powder Coated, EN, Sprayed Aluminum
Function: Exit Only
Grade: Grade 1
Manufacturer: Von Duprin
Series: 22
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Strike Type: Vertical Rod Bottom Strike, Vertical Rod Top Strike
