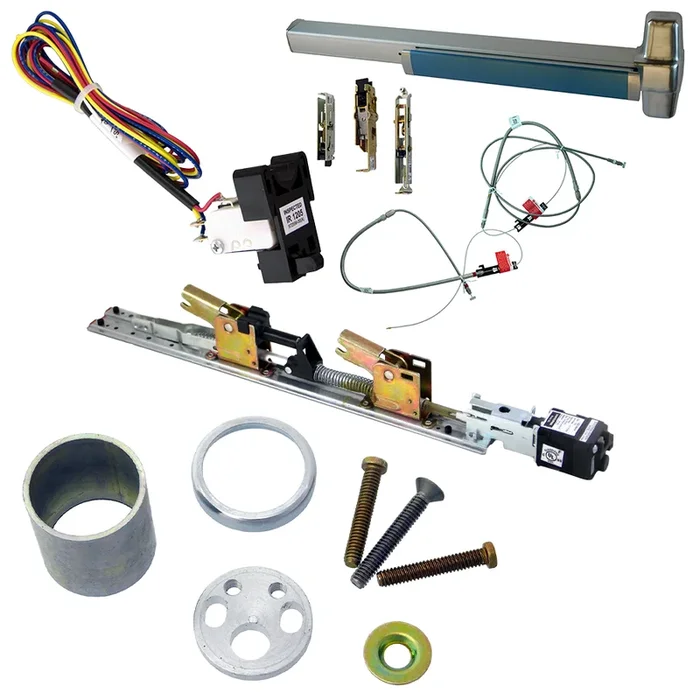

Von Duprin RX-QELA-9849NL-OP-626-36 QELA Quiet Electric Latch, CVC Grooved Exit Device, RX Request to Exit Switch
Von Duprin RX-QELA-9849NL-OP-626-36 KIT offers a sophisticated solution for securing entrances with its Quiet Electric Latch Retraction (QELA) and Concealed Vertical Cable (CVC) design. This Grade 1 exit device is engineered for single or metal doors, making it ideal for high-traffic areas requiring reliable panic exit hardware. With a sleek satin chrome finish (626), it combines functionality with aesthetics. The device features a robust nightlatch trim (110MD-NL-OP) compatible with a rim cylinder, facilitating secure access control. Its adaptability allows for door sizes ranging from 36 inches to 96 inches, ensuring a perfect fit for various applications. The device is designed to be field selectable, accommodating different operational modes without needing additional hardware changes. The RX model includes a Request to Exit (RX) switch and boasts a deadlocking top and bottom bolt with a ½ inch throw for enhanced security. Installation is simplified with included screws for standard metal door thicknesses of 1-3/4 inches to 2-1/4 inches. The vertical cable mechanism utilizes stainless steel cables for durability, while the device’s design ensures a clean and professional appearance. For building professionals and discerning homeowners, the Von Duprin RX-QELA-9849NL-OP-626-36 KIT represents a trusted choice in modern security solutions.
KIT – QELA (Quiet Electric Latch Retraction), CVC (Concealed Vertical Cable) Grooved Exit Device, RX (Request to Exit Switch), 110MD-NL-OP Nightlatch Trim (Requires Rim Cylinder), 36in x Up to 96in, No Dogging, Grade 1, 626/US26D Satin Chrome
Notice: The info below is not item specific.
9849/9949 Concealed vertical cable device for use on single or metal doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2001 grade 1. The 9849 device has a smooth mechanism case and the 9949 device has a grooved case. The concealed vertical cable device is non-handed except when the following device options are used: SD (special dogging), or SS (signal switch).
Specifications:
- Device Functions: Device ships EO/DT/NL; field selectable; for TP, K or L remove NL drive screw from device
- Device Lengths:
- 2′ 2′ (610mm) Door size
- 3′ 2’4′ to 3′ (711mm to 914 mm) Door size
- 4′ 2’10” to 4′ (864 mm to 1219 mm) Door size
- Device Centerline from Finished Floor: 39 5/8″ (1006 mm) standard
- Center Case: 8″ x 2-3/4″ x 2-3/8″ (203mm x 70mm x 60mm)
- Mechanism Case: 2-1⁄4″ x 2-1⁄4″ (57mm x 57mm)
- Projection:
- Push bar neutral – 3-13/16″ (97 mm)
- Push bar depressed – 3-1/16″ (78 mm)
- Latch Bolt: Deadlocking top & bottom bolt, 1/2″ (13mm) throw
- Door Undercut: 3/4″ (19mm) maximum. (24231516 spacer block kit needed for 3⁄4″ undercut)
- Top & Bottom Latch Case: 5-13/16″ x 1-1/4″ x 1-7/16″ (147mm x 32mm x 37mm)
- Vertical Cable: 7/32″ (6mm) Diameter stainless steel cables
- Fasteners & Sex Bolts (SNB): Includes screw pack for 1-3/4″ (44mm) and 2-1/4″ (57mm) thick metal doors. Optional 425 SNB available
- Electrical Options:
- LX: Latch bolt monitor switch. For 98/9949 devices, LX switch monitors trim input or electric dogging of EL/QEL devices. LX switch does not monitor latch bolt condition.
- RX: Request to exit
- RX2: Double request to exit
- E: Electric locking and unlocking trim
- EL: Electric latch retraction
- ESL: Emergency secure lockdown
- QEL: Quiet electric latch retraction
- SS: Signal switch
- CX: Chexit delayed exit
- ALK: Alarm exit kit
- WP-RX: Waterproof request to exit
- CON: Allegion Connect
- Mechanical Options:
- -2: Double cylinder
- -2SI: Double cylinder with security indicator
- AX: Accessible device
- GBK: Glass bead kit
- LBL: Less bottom latch
- PN: Pneumatic latch retraction
- SG: Safety glow
- SNB: Sex bolts
- SEC: Security screws
- WH: Weep holes
- Dogging Features: No mechanical dogging; QEL options available
- Dogging Options:
- CD: Cylinder dogging
- CD-CX: Chexit cylinder dogging
- CDSI: Cylinder dogging with security indicator
- HDSI: Hex dogging with security indicator
- SD: Special center case dogging
- LD: Less dogging
- DI: Dogging indicator
- CI: Cylinder dogging indicator
- Strikes:
- Top – 249 – Unfinished
- Bottom – 349 – Unfinished
Standard Trim:
- EO: No outside trim. Exit only
- DT: Dummy trim. Pull when dogged (not recommended for fire device)
- NL: Night latch
- Key retracts latchbolt
- Rim and 1-1/4″ mortise cylinder
- NLOP: Night latch. Key retracts latchbolt, pull required
- TP: Thumbpiece
- Key locks and unlocks
- Rim and 1-1/4″ mortise cylinder
- TPBE: Thumbpiece, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
- K/L: Knob/Lever
- Key locks and unlocks
- Rim and 1-1/4″ mortise cylinder
- Handed, reversible lever
- Electrified lever operation available
- KDT/LDT: Knob/lever dummy trim. Pull when dogged
- KNL/LNL: Knob/lever, night latch
- Key retracts latchbolt
- Rim and 1-1/4″ mortise cylinder
- Handed, reversible lever
- KBE/LBE: Knob/lever, blank escutcheon. Always operable (no cylinder)
- TL: Turn lever
- Key locks and unlocks (use with DT trim)
- 1-1/4″ mortise cylinder
- TLBE: Turn lever, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
- TLOP: Turn lever, optional pull
- HL: Hospital latch
- Key locks and unlocks
- 1-1/4″ mortise cylinder
Finishes:
- 605 – Bright brass
- 606 – Satin brass
- 612 – Satin bronze
- 625 – Bright chrome
- 626/626AM – Satin chrome
- 628 – Aluminum, anodized
- 710 – Duranodic dark bronze
- 711 – Matte black/anodized
- 643e – Aged bronze
Features
- Mechanism Case: 2-1⁄4″ x 2-1⁄4″ (57mm x 57mm)
- GBK: Glass bead kit
- -2SI: Double cylinder with security indicator
- DI: Dogging indicator
- -2: Double cylinder
- PN: Pneumatic latch retraction
- 3′ 2’4′ to 3′ (711mm to 914 mm) Door size
- CD-CX: Chexit cylinder dogging
- WP-RX: Waterproof request to exit
- SG: Safety glow
- E: Electric locking and unlocking trim
- SS: Signal switch
- CI: Cylinder dogging indicator
- ESL: Emergency secure lockdown
- Push bar depressed – 3-1/16″ (78 mm)
- Electrical Options:
- Strikes:
- 4′ 2’10” to 4′ (864 mm to 1219 mm) Door size
- LBL: Less bottom latch
- Center Case: 8″ x 2-3/4″ x 2-3/8″ (203mm x 70mm x 60mm)
- Fasteners & Sex Bolts (SNB): Includes screw pack for 1-3/4″ (44mm) and 2-1/4″ (57mm) thick metal doors. Optional 425 SNB available
- SEC: Security screws
- Device Functions: Device ships EO/DT/NL; field selectable; for TP, K or L remove NL drive screw from device
- Projection:
- RX: Request to exit
- LD: Less dogging
- ALK: Alarm exit kit
- AX: Accessible device
- Push bar neutral – 3-13/16″ (97 mm)
- 2′ 2′ (610mm) Door size
- EL: Electric latch retraction
- Door Undercut: 3/4″ (19mm) maximum. (24231516 spacer block kit needed for 3⁄4″ undercut)
- SNB: Sex bolts
- CON: Allegion Connect
- LX: Latch bolt monitor switch. For 98/9949 devices, LX switch monitors trim input or electric dogging of EL/QEL devices. LX switch does not monitor latch bolt condition.
- QEL: Quiet electric latch retraction
- Dogging Features: No mechanical dogging; QEL options available
- Mechanical Options:
- Top – 249 – Unfinished
- Device Lengths:
- CDSI: Cylinder dogging with security indicator
- Device Centerline from Finished Floor: 39 5/8″ (1006 mm) standard
- CX: Chexit delayed exit
- Bottom – 349 – Unfinished
- Vertical Cable: 7/32″ (6mm) Diameter stainless steel cables
- Dogging Options:
- HDSI: Hex dogging with security indicator
- SD: Special center case dogging
- Latch Bolt: Deadlocking top & bottom bolt, 1/2″ (13mm) throw
- CD: Cylinder dogging
- RX2: Double request to exit
- Top & Bottom Latch Case: 5-13/16″ x 1-1/4″ x 1-7/16″ (147mm x 32mm x 37mm)
- WH: Weep holes
Attributes
Ship via: No UPS – Common Carrier Only
Access Type: Request to Exit
Alternate Codes: RX-QELA-9849NL-OP-626-36, RXQELA9849NLOP62636
Category: Electrified Panic Devices, Panic Devices & Exit Alarms
Center Line: 3′ 3-5/8″
Certifications: A156.3, ANSI, ANSI/UL 305, BHMA
Device Width: 36″
Door And Lock Sensor: Pushbar Monitor
Door Application: Panic Devices & Exit Alarms
Door Frame Type: Hollow Metal Frame
Door Height: 82-96″
Door Thickness: 1-3/4″
Door Type: Hollow Metal
Electrical Option: Electric Latch Retraction, Quiet
Exit Device Category: Concealed Vertical Cable Exit CVC
Finish Code: 626
Finish Color: Brushed Chrome, Satin Chrome
Function: Night Latch, Opt. Pull
Grade: Grade 1
Handing: Field Reversible
Manufacturer: Von Duprin
Series: 98/99
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Strike Type: Vertical Rod Top Strike
Trim Option: Less Trim
