Description

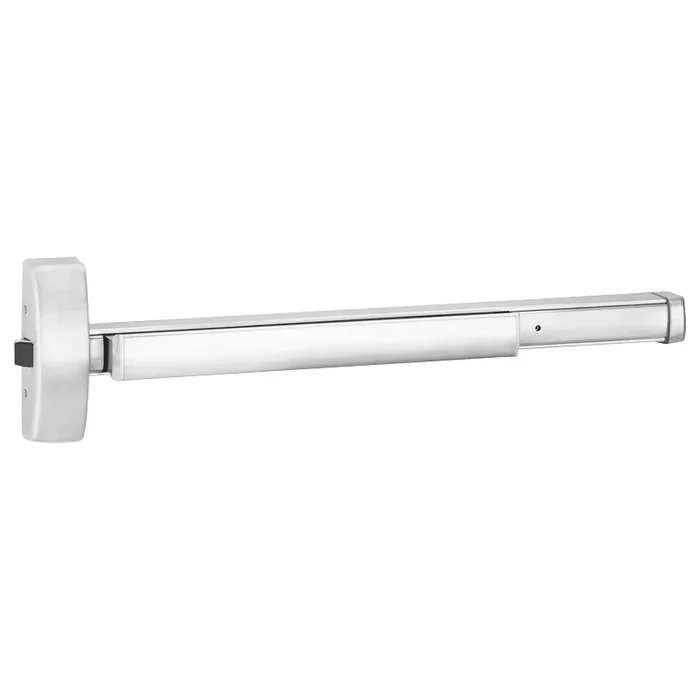

PHI 2108-630-36 Precision Hardware Inc Exit Device
EO=Exit Only=No TrimAdd Trim for Classroom Feature
- RETROFIT APPLICATIONS – The 2100 and FL2100 Series Devices are designed to retrofit into other manufacturers’ mounting hole locations.
- 1700 Series Pull Trim and 4900 Series Lever Trim may also be factory set for these applications by specifying prefix “R”
- DOORS – For all types of single and double doors with a mullion.
- Available for 1-3/4″ to 2-1/4″ thick, up to 4′-0″ wide opening.
- For thicker doors, consult factory.
- Furnished standard for 1-3/4″ thick, 3′-0″ wide opening.
- DEVICE – Covers ANSI A115.2 (Type 161), A115.18 cylinder lock and A115.1 (Type 86) Mortise Lock preparation.
- FUNCTIONS – Functions are field selectable except for the Double Cylinder option.
- The device is furnished for a desired function if specified.
- If not specified the “03” function is furnished standard.
- CYLINDERS – Rim Type, not furnished standard. Specify when required.
- DOUBLE CYLINDER – Handed, “10” Function available.
- Requires two rim type cylinders
- not furnished standard.
- BASE MATERIAL – The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.
- 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.
- CHASSIS – Investment Cast Steel, Zinc Dichromated.
- LATCHBOLT – Stainless Steel, Deadlocking, 3/4″ throw.
- STRIKES – No. S300, Investment Cast Stainless Steel, Black Powder Coated furnished standard.
- No. S988, optional strike for use on Aluminum Door applications, please specify when ordering.
- No. S458, optional strike for use on Mullion applications, please specify when ordering.
- DOGGING – 1/4″ turn hex key dogging standard.
- NOT available on Fire Exit Hardware.
- TOUCHBAR HEIGHT – 39-15/16″ from floor standard.
- May be varied as situation dictates.
- REVERSIBLE – Reversible for all functions and Trims.
- Standard packaging RHRB.
Attributes
Alternate Codes: 2108-630, 2108-630-36, 2108630, 210863036, PHG2108-630
Ansi: BHMA A156.3 Grade 1 Listed
Baa Qualified: Yes
Bar Style: Push Bar
Base Material: Stainless Steel
Category: Panic Devices, Panic Devices & Exit Alarms, Rim Panic Devices
Commercial Residential: Commercial
Country of Origin: Usa
Country of origin: USA
Device Length: 36 In.
Device Type: Rim
Device Width: 36″
Dogging Options: Hex Key Dogging
Door Application: Panic Devices & Exit Alarms
Door Material: All Types
Door Thickness: 1-3/4″ to 2-1/4″
Door Type: Aluminum, Metal, Wood
Door Width: 36″
Exit Device Category: Rim device
Exit Device Type: Rim Exit
Finish: 630
Finish Code: 630
Finish Color: Satin Stainless Steel
Finish : Satin Stainless Steel
Finish Family: Matte Silver
Fire Rated: No
Function: Entry, Office
Grade: Grade 1
Hand: Field Reversible
Handing: Field Reversible
Includes Trim: No
Installation: Commercial
Limited Warranty: 5 Years
Mechanical Function: Classroom
Minimum Stile Size: 4-1/4″
Minimum Style Size: 4-1/4″
Origin: USA
Pack Qty: 1
Physical Appearance: Wide Stile Pushpad
Reversible: Yes
Series: 3R0
Strike Standard: S300
Subtype: Exit Device
Supplier: Stanley
Trim Style: Back Plate
Type: PANIC DEVICES & EXIT ALARMS
Ul Listing: UL 10C
Unit of Measure: Each
