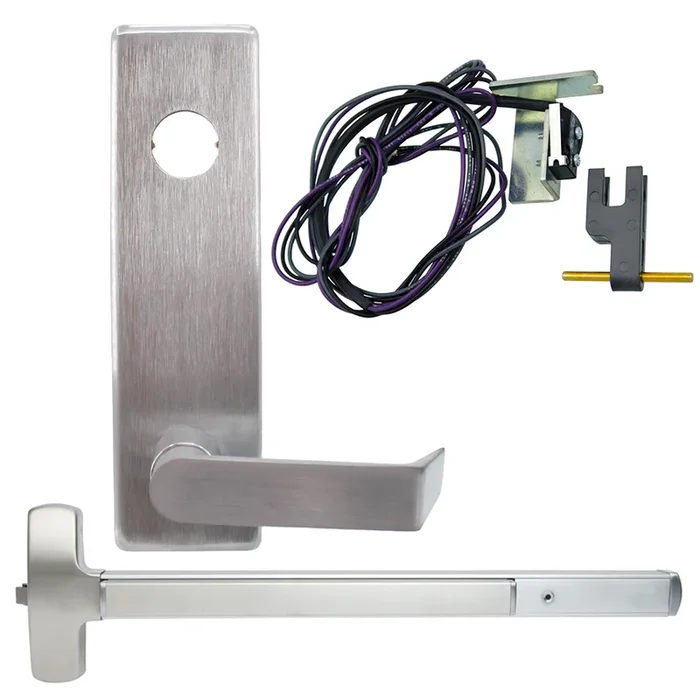

Falcon Lock RX-25R-L-FSE-DAN-US26D-36-RHR RX Request to Exit Electrified Trim Rim Device Escutcheon x Dane Lever 510L-FSE
Falcon Lock RX-25R-L-FSE-DAN-US26D-36-RHR KIT is a robust solution designed for high-traffic environments, seamlessly integrating a rim exit device with an electrified trim. This kit features a sleek Dane lever trim, providing both functionality and aesthetic appeal. Made from extruded aluminum, the construction ensures superior strength and impact resistance, making it ideal for demanding applications. The device boasts a streamlined touch bar design with no exposed screws or rivets, offering a clean look that enhances any entrance. With a standard stainless steel 3⁄4″ throw latchbolt and a deadlocking feature, security is paramount. The hex dogging mechanism allows for effortless operation without the wear of threaded parts. Designed for versatility, the RX-25R is non-handed, fitting 1-3⁄4″ thick wood or metal doors. It can interface with building security systems, featuring motorized electric latch retraction and options for security monitoring. The satin chrome finish (US26D) adds a touch of elegance while ensuring durability. Certified to ANSI A156.3 grade 1 standards, this exit device meets rigorous safety and performance criteria. Ideal for both single and double door applications, the Falcon Lock RX-25R-L-FSE-DAN-US26D-36-RHR KIT is the perfect choice for professionals seeking reliability and security in high-traffic areas.
KIT – RX Request to Exit, Electrified Trim, Rim Exit Device, Escutcheon x Dane Lever Trim 510L-FSE, 36in, Hex Dogging, RHR Right Hand Reverse/Reversible Handing, 299 Strike, Grade 1, 626/US26D Satin Chrome
Notice: The info below is not item specific.
The 25-R Series rim device meets the demanding requirements of high traffic installations with a single-point, rim type latch and a streamlined touch bar design. This device can also be electrified for maximum ease of use and accessibility.
Features:
- Extruded aluminum construction delivers greater strength and impact resistance.
- No exposed screws or rivets on the back of the device for a streamlined design and clean lines for a more attractive installation.
- One trim input design provides maximum versatility and ability to use various trims.
- Stainless steel push pad cover provides a scratch-resistant pushing surface.
- Flush-end caps help prevent them from being destroyed or knocked off in abusive situations.
- Narrow stile center case is ideal for storefront applications with narrow stile aluminum doors.
Specifications:
- Hand: Non-handed.
- Strikes: 299 strike standard.
- Latchbolt: Stainless steel, 3⁄4″ throw.
- Deadlocking Latchbolt: Standard.
- Dogging Feature: Half turn hex dogging standard. No threaded parts to wear out.
- Cylinder Dogging: Specify “CD” prefix. Uses 1-1⁄8″ long mortise cylinder with standard cam.
- Doors: 1-3⁄4″ thick, wood or metal. Specify thickness if other than 1-3⁄4″.
- Projections: 2-3⁄4″ maximum, 2″ dogged.
- Mounting Height: 40-1⁄4″ from CL to finished floor.
- Electric Functions: Can be interfaced with building security systems. Motorized electric latch retraction (fail secure only), FSA/FSE trim, security monitoring, delayed egress and exit alarm available.
- Fasteners: All mounting screws are concealed, sheet metal screws and machine screws standard.
- Sex Bolts: Recommended when device is used with hollow core wood, composite or light gauge hollow metal doors. For EO device, specify 8 – 425 (#I0-24) SNB. For devices with trim, specify 2 – 425 (#IO-24) SNB.
- ANSI: Certified ANSI A156.3-2001 grade 1 standards.
- Center Case and Working Parts: Center case is heavy wrought and sintered metal parts.
- Shim kits: For glass lite applications; 1⁄4″ thick, specify SK25-RM.
Stock Sizes:
- Single Door Application:
| Device | Door Size | Door Strike | Door Stile (in) | Min Door Opening Width |
|---|---|---|---|---|
| 25-R | 3’ | 299 | 4″ | 2′ 7 1⁄2″ |
| 25-R | 3’ | 264 | 3 7⁄8″ | 2′ 7 3⁄8″ |
| 25-R | 3’ | 1439 | 3 1⁄4″ | 2′ 6 3⁄4″ |
| 25-R | 3’ | 1606 | 3 5⁄8″ | 2′ 7 1⁄8″ |
| 25-R | 4′ | 299 | 4″ | 3′ 1 1⁄2″ |
| 25-R | 4′ | 264 | 3 7⁄8″ | 3′ 1 3⁄8″ |
| 25-R | 4′ | 1439 | 3 1⁄4″ | 3′ 3⁄4″ |
| 25-R | 4′ | 1606 | 3 5⁄8″ | 3′ 1 1⁄8″ |
- Double Door Application:
| Device | Door Size | Strike x Mullion | Door Stile (in) | Min Door Opening Width |
|---|---|---|---|---|
| 25-R | 3’ | 299 x 2923 | 4 1⁄8″ | 2′ 7 1⁄2″ |
| 25-R | 3’ | 299 x 4023 | 4 3⁄8″ | 2′ 7 1⁄2″ |
| 25-R | 3’ | 264 x 2923 | 4″ | 2′ 7 3⁄8″ |
| 25-R | 3’ | 264 x 4023 | 4 1⁄4″ | 2′ 7 3⁄8″ |
| 25-R | 3’ | 1439 x 2923 | 3 7⁄8″ | 2′ 7 1⁄4″ |
| 25-R | 3’ | 1439 x 4023 | 4 1⁄8″ | 2′ 7 1⁄4″ |
| 25-R | 3’ | 1606 x 2923 | 4 1⁄4″ | 2′ 7 1⁄8″ |
| 25-R | 3’ | 1606 x 4023 | 4 1⁄2 “ | 2′ 7 1⁄8″ |
| 25-R | 4’ | 299 x 2923 | 4 1⁄8″ | 3′ 1 1⁄2″ |
| 25-R | 4’ | 299 x 4023 | 4 3⁄8″ | 3′ 1 1⁄2″ |
| 25-R | 4’ | 264 x 2923 | 4″ | 3′ 1 3⁄8″ |
| 25-R | 4’ | 264 x 4023 | 4 1⁄4″ | 3′ 1 3⁄8″ |
| 25-R | 4’ | 1439 x 2923 | 3 7⁄8″ | 3′ 1 1⁄4″ |
| 25-R | 4’ | 1439 x 4023 | 4 1⁄8″ | 3′ 1 1⁄4″ |
| 25-R | 4’ | 1606 x 2923 | 4 1⁄4″ | 3′ 1 1⁄8″ |
| 25-R | 4’ | 1606 x 4023 | 4 1⁄2 “ | 3′ 1 1⁄8″ |
| 25-Vx 25-R | 3’ | 1609 | 3 1⁄2″ | 2′ 7 5⁄8″ for 3 1⁄2″ Min stile |
| 25-Vx 25-R | 4’ | 1609 | 3 1⁄2″ | 3’ 1 5⁄8″ for 3 1⁄2″ Min stile |
Finishes:
- US3/605 – Brass, Bright
- US4/606 – Brass, Satin
- US10/612 – Bronze, Satin
- US11/643e – Bronze, Aged
- US15/619 – Nickel, Satin
- US19/622 – Black, Matte
- US26/625 – Chromium, Bright
- US26D/626 – Chromium, Satin
- US28/628 – Anodized, Aluminum
- US32/629 – Stainless Steel, Bright
- US32D/630 – Stainless Steel, Satin
- 313AN/710 – Anodized Duranodic
Attributes
Access Type: Request to Exit
Alternate Codes: RX-25R-L-FSE-DAN-US26D-36-RHR, RX25RLFSEDANUS26D36RHR
Category: Electrified Panic Devices, Panic Devices & Exit Alarms
Certifications: A156.3, ANSI, UL 305
Device Width: 36″
Dogging: HD – Hex Dogging
Door And Lock Sensor: Pushbar Monitor
Door Application: Panic Devices & Exit Alarms
Exit Device Category: Rim device
Fail Safe/ Fail Secure: FSE- Fail Secure
Finish Code: US26D
Finish Color: Brushed Chrome
Function: Dane Standard, Lever
Grade: Grade 1
Handing: Right Handed Reverse
Lever Design: Dane
Manufacturer: Falcon Lock
Series: 25
Strike Type: Rim Strike, Standard
Trim Option: Lever Trim
