Description
Falcon Lock RX-25V-EO-710-36X84 RX Request to Exit SVR Vertical Rod Device, 36in, Hex Dogging, Grade 1, Dark Bronze
Falcon Lock RX-25V-EO-710-36X84 KIT offers a robust solution for high-traffic environments requiring reliable egress. Designed for commercial applications such as offices, banks, and retail spaces, this exit device is built to withstand constant use while providing a sleek, unobtrusive appearance. With its Grade 1 certification, the RX series ensures durability and performance, making it an ideal choice for demanding situations. Constructed from extruded aluminum, this exit device features a panic exit and fire exit hardware suitable for both single and double doors. The streamlined design eliminates exposed screws and rivets, providing a clean, modern look. The stainless steel push pad cover is not only scratch-resistant but ensures longevity in busy settings. The hex dogging feature enhances security while allowing easy operation. This exit device is designed for 36-inch doors and is equipped with vertical rods for added strength. It includes a standard top latch and deadlocking, ensuring secure access. The flush-end caps enhance durability, preventing damage in high-abuse conditions. Available in a dark bronze anodized finish, the RX-25V-EO complements various architectural styles while meeting ANSI A156.3 standards. Choose Falcon Lock for effective, attractive, and reliable exit solutions.

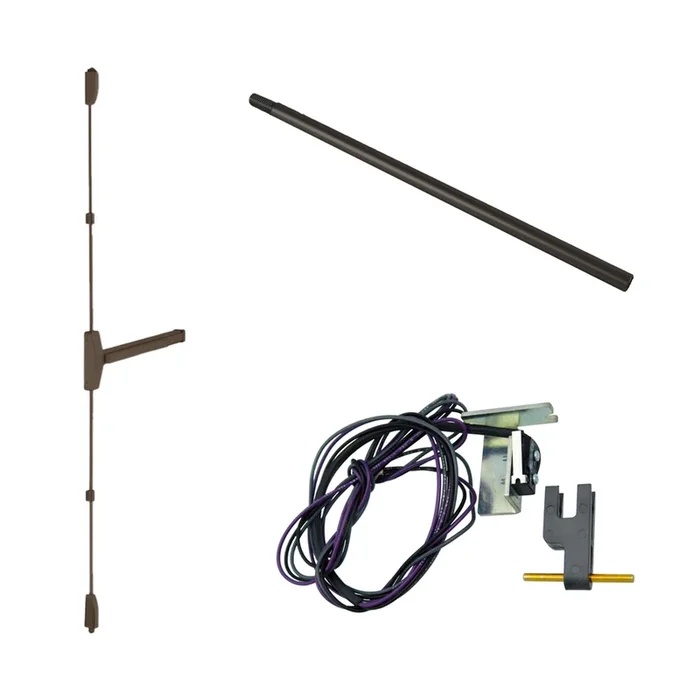

KIT – RX Request to Exit, SVR Surface Vertical Rod Exit Device, Exit Only, 36in, Hex Dogging, Grade 1, 710/313AN Dark Bronze Anodized
Notice: The info below is not item specific.
The 24/25 series heavy-duty architectural push pad exit devices provide quick, easy egress suitable for various applications. Offices, banks, assisted living facilities, retail stores and other commercial buildings have constant traffic, so the exit devices must be able to perform under continual use and abuse. The 24/25 series exit devices out-perform competitors and are offered at a reasonable price. The ANSI/BHMA grade 1 certified exit devices feature a sleek, streamlined styling and smart solutions for any building design while assuring egress in case of an emergency. High-traffic applications demand the added strength and protection that comes with a vertical rod device. The 25-V series delivers with a surface-applied design that includes standard top latch and deadlocking. The sleek touch bar design ensures an attractive installation.
Features:
- Extruded aluminum construction delivers greater strength and impact resistance
- Includes panic exit and fire exit hardware for single and double door applications
- No exposed screws or rivets on the back of the device for a streamlined design and clean lines for a more attractive installation
- One trim input design provides maximum versatility and ability to use various trims
- Stainless steel push pad cover provides a scratch-resistant pushing surface
- Flush-end caps help prevent them from being destroyed or knocked off in abusive situations
- Narrow stile center case is ideal for storefront applications with narrow stile aluminum doors
Functions:
- EO (01): Exit only, no trim.
- DT (02): Entrance by trim when actuating bar is locked down.
- NL (03): Entrance by trim when latchbolt is retracted by key. Key removable only when locked.
- TP (05): Entrance by thumbpiece. Key locks or unlocks thumbpiece.
- L or K (08): Entrance by knob or lever. Key locks or unlocks knob.
- L(NL) or K(NL) (03): Entrance by knob or lever when latchbolt is retracted by key. Lever/knob is rigid. Key removable only when locked.
Lever Designs:
- Avalon (AVA): Projection 3-1⁄4″
- Quantum (QUA): Projection 3-1⁄4″
- Dane (DAN): Projection 3″
- Broadway (BRW): Projection 3-1⁄5″
- Boardwalk (BRK): Projection 3-1⁄5″
- Danish (DSH): Projection 2-9⁄10″
- Latitude (LAT): Projection 3-1⁄10″
- Longitude (LON): Projection 3-1⁄10″
- Sutro (SUT): Projection 3-1⁄4″
Specifications:
- Hand: Field reversible
- Strikes: 3788 top strike is surface applied 2130 bottom strike is mortised into floor
- Angle bracket: Use 4215 angle bracket in flush transom installations. Allows use of standard 3788 strike
- Latchbolt: Top stainless steel 3⁄4″ throw; bottom bolt, 1⁄2″ throw
- Deadlocking Latchbolt: Standard in top latch
- Dogging Feature: Hex dogging standard
- Cylinder Dogging: Specify “CD” prefix. Uses 1-1⁄8″ long mortise cylinder with standard cam.
- Doors: 1-3⁄4″ thick, wood or metal. Specify thickness if other than 1-3⁄4″
- Projections: 2-3⁄4″ maximum, 2″ dogged.
- Electric Functions: Can be interfaced with building security systems. Motorized electric latch retraction (fail secure only), FSA/FSE trim, security monitoring, delayed egress and exit alarm available.
- Fasteners: All mounting screws are concealed, sheet metal screws and machine screws available, specify AMS
- Sex Bolts: Recommended when device is used with hollow core wood, composite or light gauge hollow metal doors. For EO device, specify 12 – 425 (#10-24) SNB. For devices with trim, specify 8 – 425 (#10-24) SNB.
- ANSI: Certified ANSI A156.3-2001 grade 1 standards.
- Vertical rods: Furnished to length based on a 40-1⁄4″ horizontal CL from finished floor and a 7’0″ door standard. Variations from these standards must be specified when ordering
- 25-V-LBR: Less bottom rod vertical device
- Shim kits: For glass lite applications; 1⁄4″ thick, specify SK25-V
Stock Sizes:
| Device | Door Size | Door Strike | Door Stile (in) | Min. Door Opening Width |
|---|---|---|---|---|
| 25-V | 3’ | All | 3-1⁄2″ | 2′ 7-1⁄8″ |
| 25-V | 4′ | All | 3-1⁄2″ | 3′ 1-1⁄8″ |
| 25-V x 25-R | 3’ | 1609 | 3-1⁄2″ | 2′ 7-5⁄8″ for 3-1⁄2″ Min. Stile |
| 25-V x 25-R | 4′ | 1609 | 3-1⁄2″ | 2′ 1-5⁄8″ for 3-1⁄2″ Min. Stile |
Finishes:
- US3/605 – Bright brass
- US4/606 – Satin brass
- US10/612 – Satin bronze
- US11/643e – Aged bronze
- US15/619 – Satin nickel
- US19/622 – Matte black
- US26/625 – Bright chrome
- US26D/626 – Satin chrome
- US28/628 – Anodized aluminum
- US32/629 – Bright stainless steel
- US32D/630 – Satin stainless steel
- 313AN/710 – Anodized duranodic
Attributes
Access Type: Request to Exit
Alternate Codes: FALRX-25V-EO-313AN-36X84, RX-25V-EO-313AN-36X84, RX25VEO313AN36X84
Category: Electrified Panic Devices, Panic Devices & Exit Alarms
Certifications: A156.3, ANSI, UL 305
Device Width: 36″
Dogging: HD – Hex Dogging
Door And Lock Sensor: Pushbar Monitor
Door Application: Panic Devices & Exit Alarms
Exit Device Category: Surface vertical rod
Finish Code: 313AN
Finish Color: Dark Bronze, Dark Bronze Anodized, Dark Bronze/Clear Coat, Dark Brown, Duranotic Dark Bronze
Function: Exit Only
Grade: Grade 1
Manufacturer: Falcon Lock
Series: 25
Strike Type: Vertical Rod Bottom Strike, Vertical Rod Top Strike
