Von Duprin RX-QELA-22EO-689-48 KIT-RX QEL Rim Exit Device, 48in, No Trim, Grade 1, Powder-Coated Aluminum
Von Duprin RX-QELA-22EO-689-48 KIT is a robust and reliable rim exit device designed for high-traffic areas, ensuring both safety and ease of access. This Grade 1 certified device features a quiet electric latch retraction (QEL) mechanism, making it an ideal choice for environments where noise reduction is a priority. With a length of 48 inches, it is suitable for various single and double door applications, including those with mullions. This exit device is UL listed for panic exit hardware and is non-handed, allowing for versatile installation on stock hollow metal doors with standard 161 door prep cutouts. The RX-QELA device incorporates a deadlocking latch bolt with a ¾” throw, providing secure closure and enhanced security. The device ships ready for multiple functions, including exit only (EO), and can be tailored with several trim and electronic options to suit specific needs. Constructed from durable powder-coated aluminum in a sleek 689 finish, the RX-QELA-22EO is designed to withstand the rigors of daily use while maintaining an attractive appearance. Ideal for commercial settings, this exit device combines functionality with modern design, ensuring safety without compromising on style.

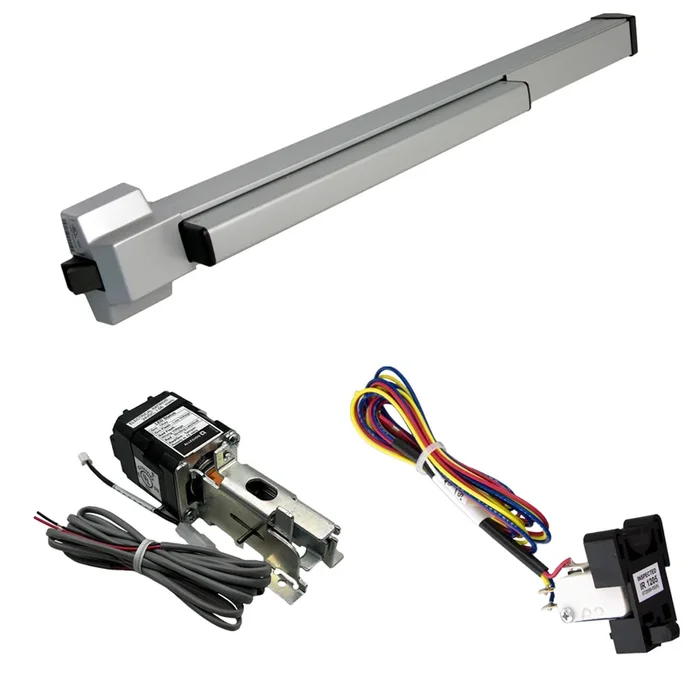

KIT – RX (Request to Exit Switch), QEL (Quiet Electric Latch Retraction), Rim Exit Device, Exit Only No Trim, 48in, No Dogging, Grade 1, 689/SP28 Powder-Coated Aluminum
Notice: The info below is not item specific.
22 Rim exit device for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are grade 1 rated to ANSI A156.3, 2014. Devices cover stock hollow metal doors with 161 door prep cutouts. Fits door stiles as narrow as 3 13⁄16″ (97 mm). The device is non-handed.
Features:
- Available for rim and surface-mounted vertical applications
- Several trim and electronic options
- Non-handed design
Specifications:
- Device Functions: Ships ready for all functions, EO, DT, NL, TP, K, L
- Device Lengths:
- 3′ (914 mm) see minimum door opening chart in cut sheet
- 4′ (1219 mm) see minimum door opening chart in cut sheet
- Device Centerline From Finished Floor:
- 39-13/16″ (1011 mm)
- 39-11/16″ (1008 mm) with mullion
- Center Case Dimensions: 4 5⁄32″ (105 mm) x 3 3⁄16″ (81 mm) x 2 3⁄8″ (60 mm)
- Mechanism Case Dimensions: 2″ (51 mm) x 2 3/8″ (60 mm)
- Projection: Push bar neutral – 3 11/16″ (94 mm) push bar depressed – 2 7/8″ (73 mm)
- Latch Bolt: Deadlocking, 3/4″ (19 mm) throw
- Fasteners and Through Bolts (SNB): Includes screw pack for 1 3/4″ (44 mm) and 2 1/4″ (57 mm) wood and metal doors; optional SNB available for device
- Notes:
- Black end caps are standard for all finishes, with the exception of 526.
- Optional black metal end caps are available; order #900397 as a separate line item. Additional charges apply.
- All devices configured in 526 finish will be supplied with a metal endcap in 526 finish as standard.
- Order 900397-622 for the 622, 689, and 695 devices, and 900397-526 for the 526 device (service).
- Electrified Options:
- ALK: Alarm exit kit
- CON: Allegion Connect
- LX: Latch bolt monitor switch
- LX-LC: Latch bolt monitoring, low current
- LX-RX: Latch bolt monitoring, request to exit
- LX-RX-LC: Latch bolt monitoring, request to exit low current
- QEL: Quiet electric latch retraction
- RX: Request to exit
- RX2: Double request to exit
- WP-RX: Waterproof request to exit
- Mechanical options:
- AX: Accessible device
- GBK: Glass bead kit
- HW: Hurricane device – Wind-Only
- Dogging feature: Hex key dogging standard
- Dogging options: LD: less dogging, QEL option available
- Strikes: 299 – dull black
Minimum Door Opening for 3′ Device:
- For 4′ device, add 6″ (152 mm)
- 26.500″ (673 mm):
- Stop height: 1⁄2″
- Strike: 299
- Single door: Yes
- 25.687″ (652 mm):
- Stop height: 1⁄2″
- Strike: 1439
- Single door: Yes
- 27.000″ (686 mm):
- Stop height: 1⁄2″
- Strike: 299
- Double door w/mullion: 4754, 4854, 4954
- 25.812″ (656 mm):
- Stop height: 1⁄2″
- Strike: 299
- Double door w/mullion: 5654
- 25.750″ (679 mm):
- Stop height: 1⁄2″
- Strike: 1408
- Double door w/mullion: 5754
- 26.562″ (675 mm):
- Stop height: 1⁄2″
- Strike: 1606
- Double door w/mullion: 1654
- 26.750″ (679 mm):
- Stop height: 1⁄2″
- Strike: 299
- Single door: Yes
- 25.937″ (659 mm):
- Stop height: 5⁄8″
- Strike: 1439
- Single door: Yes
- 27.125″ (689 mm):
- Stop height: 5⁄8″
- Strike: 299
- Double door w/mullion: 4754, 4854, 4954
- 26.687″ (678 mm):
- Stop height: 5⁄8″
- Strike: 299
- Double door w/mullion: 5654
- 25.875″ (657 mm):
- Stop height: 5⁄8″
- Strike: 1408
- Double door w/mullion: 5754
- 26.687″ (678 mm):
- Stop height: 5⁄8″
- Strike: 1606
- Double door w/mullion: 1654
Standard Trim:
- EO: No outside trim
- Exit only
- ANSI: 01
- DT: Dummy Trim
- Trim : 210DT
- Pull when dogged (not recommended for fire device)
- Escutcheon Plate Size: 5-3/8″ x 4-25/32″ x 3/32″ (137 x 121 x 2 mm)
- Projection: 1-31/32″ (42 mm)
- ANSI: 02
- NL: Night latch
- Trim : 210NL
- Key retracts latchbolt
- Rim and 1-1/4″ mortise cylinder
- Escutcheon Plate Size: 5-3/8″ x 4-25/32″ x 3/32″ (137 x 121 x 2 mm)
- Projection: 1-31/32″ (42 mm)
- ANSI: 03
- NL-OP: Night latch
- Trim : 110NL-MD, 110NL-WD
- Key retracts latchbolt, pull required
- ANSI: 03
- Cylinder Type: Rim
- TP: Thumbpiece
- Trim : 230TP
- Key locks and unlocks
- Rim and 1-1/4″ mortise cylinder
- Escutcheon Plate Size: 3″ x 12-1/16″ x 3/32″ (76 x 306 x 2 mm)
- Pull Center to Center: 5-1/2″ (140 mm)
- Projection: 2″ (51 mm)
- ANSI: 05
- K: Knob
- Trim : 2227K
- Key locks and unlocks
- Rim and 1-1/4″ mortise cylinder
- Handed, reversible lever
- Electrified lever operation available
- Escutcheon Plate Size: 3″ x 4-25/32″ x 3/32″ (76 x 121 x 2 mm)
- Projection: 2-15/16″ (75 mm)
- ANSI Function: 08
- L: Lever
- Trim : 2227L
- Key locks and unlocks
- Rim and 1-1/4″ mortise cylinder
- Handed, reversible lever
- Electrified lever operation available
- Escutcheon Plate Size: 3″ x 6-3/8″ x 15/16″ (76 x 162 x 24 mm)
- Projection: 2-5/8″ (67 mm)
- ANSI Function: 08
Finishes:
- 526 – Powder coated chrome
- 622 – Powder coated matte black
- 689 – Powder coated aluminum
- 695 – Powder coated dark bronze
Attributes
Access Type: Request to Exit
Alternate Codes: RX-QELA-22EO-689-48, RXQELA22EO68948
Category: Electrified Panic Devices, Panic Devices & Exit Alarms
Certifications: A156.3, ANSI, ANSI/UL 305, BHMA
Device Width: 48″
Dogging: HD – Hex Dogging
Door And Lock Sensor: Pushbar Monitor
Door Application: Panic Devices & Exit Alarms
Electrical Option: Electric Latch Retraction, Quiet
Exit Device Category: Rim Exit
Finish Code: 689
Finish Color: Aluminum Powder Coated, EN, Sprayed Aluminum
Function: Exit Only
Grade: Grade 1
Manufacturer: Von Duprin
Series: 22
Strike Type: Standard
