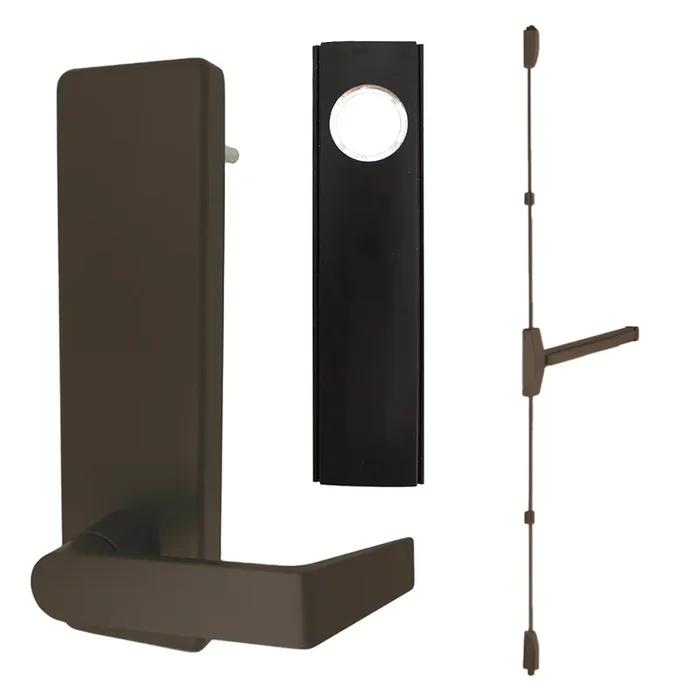

Falcon Lock CD-25V-L-BE-DAN-710-36X96-RHR SVR Surface Vertical Rod Exit Device, Blank Escutcheon, Dane Lever Trim 510L-BE
Falcon Lock CD-25V-L-BE-DAN-710-36X96-RHR KIT is a robust surface vertical rod exit device designed for high-traffic environments like offices, banks, and retail stores. With its Grade 1 certification, this exit device ensures reliable egress during emergencies while maintaining a sleek and attractive appearance. The device features a blank escutcheon paired with the elegant Dane lever trim, providing a modern touch to any entrance. Constructed from extruded aluminum, the CD-25V offers exceptional strength and impact resistance, making it ideal for enduring constant use. The device is equipped with cylinder dogging, which allows for easy operation while enhancing security. Its unique design eliminates exposed screws or rivets, giving it a clean look. This exit device supports various door configurations with a 36-inch width, accommodating both single and double doors. The field-reversible handing allows flexibility in installation, while the stainless steel push pad cover ensures scratch resistance. Additionally, the flush-end caps prevent damage in abusive situations. Certified under ANSI A156.3-2001 standards, this exit device integrates seamlessly with building security systems, offering solutions like electric latch retraction and delayed egress. Trust the Falcon Lock CD-25V for reliable access control and safety in your commercial space.
KIT – SVR Surface Vertical Rod Exit Device, Blank Escutcheon x Dane Lever Trim 510L-BE, 36in x 96in, Cylinder Dogging, Less Cylinder, RHR Right Hand Reverse/Reversible, Grade 1, 710/313AN Dark Bronze Anodized
Notice: The info below is not item specific.
The 24/25 series heavy-duty architectural push pad exit devices provide quick, easy egress suitable for various applications. Offices, banks, assisted living facilities, retail stores and other commercial buildings have constant traffic, so the exit devices must be able to perform under continual use and abuse. The 24/25 series exit devices out-perform competitors and are offered at a reasonable price. The ANSI/BHMA grade 1 certified exit devices feature a sleek, streamlined styling and smart solutions for any building design while assuring egress in case of an emergency. High-traffic applications demand the added strength and protection that comes with a vertical rod device. The 25-V series delivers with a surface-applied design that includes standard top latch and deadlocking. The sleek touch bar design ensures an attractive installation.
Features:
- Extruded aluminum construction delivers greater strength and impact resistance
- Includes panic exit and fire exit hardware for single and double door applications
- No exposed screws or rivets on the back of the device for a streamlined design and clean lines for a more attractive installation
- One trim input design provides maximum versatility and ability to use various trims
- Stainless steel push pad cover provides a scratch-resistant pushing surface
- Flush-end caps help prevent them from being destroyed or knocked off in abusive situations
- Narrow stile center case is ideal for storefront applications with narrow stile aluminum doors
Functions:
- EO (01): Exit only, no trim.
- DT (02): Entrance by trim when actuating bar is locked down.
- NL (03): Entrance by trim when latchbolt is retracted by key. Key removable only when locked.
- TP (05): Entrance by thumbpiece. Key locks or unlocks thumbpiece.
- L or K (08): Entrance by knob or lever. Key locks or unlocks knob.
- L(NL) or K(NL) (03): Entrance by knob or lever when latchbolt is retracted by key. Lever/knob is rigid. Key removable only when locked.
Lever Designs:
- Avalon (AVA): Projection 3-1⁄4″
- Quantum (QUA): Projection 3-1⁄4″
- Dane (DAN): Projection 3″
- Broadway (BRW): Projection 3-1⁄5″
- Boardwalk (BRK): Projection 3-1⁄5″
- Danish (DSH): Projection 2-9⁄10″
- Latitude (LAT): Projection 3-1⁄10″
- Longitude (LON): Projection 3-1⁄10″
- Sutro (SUT): Projection 3-1⁄4″
Specifications:
- Hand: Field reversible
- Strikes: 3788 top strike is surface applied 2130 bottom strike is mortised into floor
- Angle bracket: Use 4215 angle bracket in flush transom installations. Allows use of standard 3788 strike
- Latchbolt: Top stainless steel 3⁄4″ throw; bottom bolt, 1⁄2″ throw
- Deadlocking Latchbolt: Standard in top latch
- Dogging Feature: Hex dogging standard
- Cylinder Dogging: Specify “CD” prefix. Uses 1-1⁄8″ long mortise cylinder with standard cam.
- Doors: 1-3⁄4″ thick, wood or metal. Specify thickness if other than 1-3⁄4″
- Projections: 2-3⁄4″ maximum, 2″ dogged.
- Electric Functions: Can be interfaced with building security systems. Motorized electric latch retraction (fail secure only), FSA/FSE trim, security monitoring, delayed egress and exit alarm available.
- Fasteners: All mounting screws are concealed, sheet metal screws and machine screws available, specify AMS
- Sex Bolts: Recommended when device is used with hollow core wood, composite or light gauge hollow metal doors. For EO device, specify 12 – 425 (#10-24) SNB. For devices with trim, specify 8 – 425 (#10-24) SNB.
- ANSI: Certified ANSI A156.3-2001 grade 1 standards.
- Vertical rods: Furnished to length based on a 40-1⁄4″ horizontal CL from finished floor and a 7’0″ door standard. Variations from these standards must be specified when ordering
- 25-V-LBR: Less bottom rod vertical device
- Shim kits: For glass lite applications; 1⁄4″ thick, specify SK25-V
Stock Sizes:
| Device | Door Size | Door Strike | Door Stile (in) | Min. Door Opening Width |
|---|---|---|---|---|
| 25-V | 3’ | All | 3-1⁄2″ | 2′ 7-1⁄8″ |
| 25-V | 4′ | All | 3-1⁄2″ | 3′ 1-1⁄8″ |
| 25-V x 25-R | 3’ | 1609 | 3-1⁄2″ | 2′ 7-5⁄8″ for 3-1⁄2″ Min. Stile |
| 25-V x 25-R | 4′ | 1609 | 3-1⁄2″ | 2′ 1-5⁄8″ for 3-1⁄2″ Min. Stile |
Finishes:
- US3/605 – Bright brass
- US4/606 – Satin brass
- US10/612 – Satin bronze
- US11/643e – Aged bronze
- US15/619 – Satin nickel
- US19/622 – Matte black
- US26/625 – Bright chrome
- US26D/626 – Satin chrome
- US28/628 – Anodized aluminum
- US32/629 – Bright stainless steel
- US32D/630 – Satin stainless steel
- 313AN/710 – Anodized duranodic
Attributes
Ship via: No UPS – Common Carrier Only
Alternate Codes: CD-25V-L-BE-DAN-313AN-36X96-RHR, CD25VLBEDAN313AN36X96RHR, FALCD-25V-L-BE-DAN-313AN-36X96-RHR
Category: Panic Devices, Panic Devices & Exit Alarms, SVR Panic Devices
Certifications: A156.3, ANSI, UL 305
Device Width: 36″
Dogging: CD – Cylinder Dogging
Door Application: Panic Devices & Exit Alarms
Exit Device Category: Surface vertical rod
Finish Code: 313AN
Finish Color: Dark Bronze, Dark Bronze Anodized, Dark Bronze/Clear Coat, Dark Brown, Duranotic Dark Bronze
Function: Lever-Blank Escutcheon
Grade: Grade 1
Handing: Right Handed Reverse
Lever Design: Dane
Manufacturer: Falcon Lock
Rod Extension: 12″
Series: 25
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Strike Type: Vertical Rod Bottom Strike, Vertical Rod Top Strike
Trim Option: Lever Trim
