Description
Alarm Lock ETDL27S1ET-AS/26DV99 Trilogy T2 Keypad Kit – Von Duprin Exit Trim, Weather Proof, 100 Users
Alarm Lock Systems Inc ETDL27S1ET-AS/26DV99 KIT offers a robust solution for secure access management with its Trilogy T2 Keypad and Von Duprin Exit Trim. Designed to withstand the elements, this weatherproof keypad features a rugged 12-button metal interface, ensuring durability in high-traffic areas. The system accommodates up to 100 users, with the ability to program 2000 unique user codes, making it ideal for both commercial and residential applications. The battery-operated unit utilizes 5 AA batteries, which are conveniently housed in a pack that mounts directly to the interior door. This design allows for easy access and maintenance, while an audible low battery alert ensures you’re never caught off guard. The non-handed and fully reversible design offers flexibility in installation, and the adaptable cylinder mechanism integrates with most major manufacturers. In addition to standard keypad entry, the unit supports proximity access with compatibility for most HID cards and key fobs. Enhanced security features include event time/date stamped audit trails and up to 500 lock/unlock schedules, ensuring that you have detailed oversight of access activities.With a sleek satin chrome finish (US26D), the ETDL27S1ET-AS/26DV99 KIT combines functionality with a modern aesthetic, making it a valuable addition to any security setup.

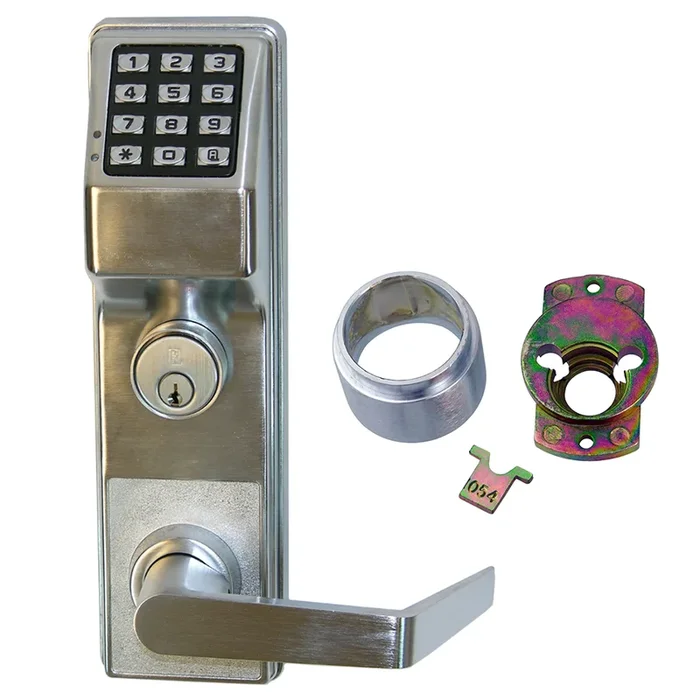

KIT – Trilogy T2 Keypad – Von Duprin Exit Trim, Weather Proof, ASSA Rim Cylinder Adaptor, 100 Users, No Audit or Events, 626/US26D Satin Chrome
Notice: The info below is not item specific.
Trilogy Exit Features:
- Field-proven clutch Mechanism ensures long life and durability
- Fingertip and/or Windows Programmable
- 2000 User Codes: Master, manager, supervisor and users
- Real Time Clock for up to 40,000 Event Time/Date Stamped Audit Trail
- Up to 500 Lock/Unlock Schedules (with Time Zone Support)
- Rugged 12-Button Weather-Resistant Metal Keypad
- Non-Handed; Fully Field Reversible
- Adaptable to most major manufacturers of standard RIM and IC RIM Cylinders
- Battery operated; uses 5 AA batteries
- Battery pack mounts to interior door. Located over or under panic bar (position dependent upon exit device manufacturer).
Trilogy Exit with Prox Features:
- Accepts most HID Proximity cards and keyfobs
- Users are individually programmed to use a card only, code only, or for the highest security – both card and code
- 2000 User Codes: Master, manager, supervisor and users
- Real Time Clock for up to 40,000 Event Time/Date-Stamped Audit Trail
- Up to 500 Lock/Unlock Schedules (with Time Zone Support)
- Prox Card data can be added to software by uploading from lock, by using AL-PRE or entering directly from computer using DL-Windows software.
- Field-proven clutch Mechanism ensures long life and durability
- Fingertip and/or Windows Programmable
- Rugged 12-Button Weather-Resistant Metal Keypad
- Non-Handed; Fully Field Reversible
- Adaptable to most major manufacturers of standard RIM and IC RIM Cylinders
- Battery operated; uses 5 AA batteries
- Battery pack mounts to interior door. Located over or under panic bar (position dependent upon exit device manufacturer).
Specifications:
- Operation: Clutch mechanism permits turning lever without retracting latch and reduces stress on the spindle. Entering access code, presenting prox card or key bypass, or remote bypass will allow lever to retract latch. Inside panic bar always provides instant egress. (Temperature Range: +150°F to -20° F.)
- Door Thickness: 1 3/4″ standard. Other thickness please see ordering information and/or consult factory
- Keypad: Vandal-resistant all metal, weather-resistant 12-button programmable for multi-level access functions including group or individual user codes, master and management codes, passage and emergency or service code, lockout and remote override capability and allowable entry time for 5 to 15 seconds. (Completely encapsulated circuit board hermetically sealed from weather and elements.)
- Audit Trail: Locks’ entry activity log can be polled to the Data Transfer Module (AL-DTMII), any PC using Alarm Lock’s DL-WINDOWS Software (Vsn.2.94 or higher), and/or can be on-site printed using the hand-held infrared printer (AL-IR1).
- Interchangeable Core Models: Accepts 6 & 7 Pin Cylinders from: Best, Arrow, KSP, Medeco, Keymark & KabaPeaks. Also available IC Core models for Yale, Medeco, Sargent, Corbin/Russwin CL and Schlage. Alarm lock tailpiece is supplied; IC Core is not included.
- Cylinder: Requires separately available Cylinder Adapter Kit
- Handing: Non-handed, field reversible
- Compliances: Use of the Alarm Lock Trilogy Exit does not alter or invalidate the UL Safety or Fire Ratings of the Panic Exit Device you are using (when properly installed per Alarm Lock’s instruction sheet).
- Finishes: US3 polished brass, US26D satin chrome, US26 polished chrome, 10B Duranodic, US5 Antique Brass.
- Power: 5 AA alkaline batteries, (supplied) installed in Battery Pack (see below). Audible low battery alert, visual and audible entry indicators
Attributes
Access Type: Keypad
Alternate Codes: ETDL27S1ET-AS/26DV99, ETDL27S1ETAS26DV99
Battery Type: 5x, AA
Category: Access Control, Commercial Electric Locks, Electric Locks, Lock Sets, Standalone, Standalone Locks, Standalone/Pushbutton Locks
Code Length: 3-6
Compatibility: VonDuprin 98/99
Cylinder Type: ASSA Standard Rim
Door Application: Access Management
Door Thickness: 1-5/8″-1-7/8″
Feedback: Audible Low Battery Alert, Audible & Visible Entry Indicator
Finish Code: US26D
Finish Color: Brushed Chrome
Grade: Grade 1
Handing: Non-Handed
Keypad Type: 12 Button
Lever Design: Standard
Lock Category: Rim Exit Device Trim
Manufacturer: Alarm Lock Systems Inc
Power Supply Type: Battery
Series: ETDL2700
Users: 100 User Codes
Weatherproof: Yes
Resources
- Spec Sheet & Parts Breakdown
