Description

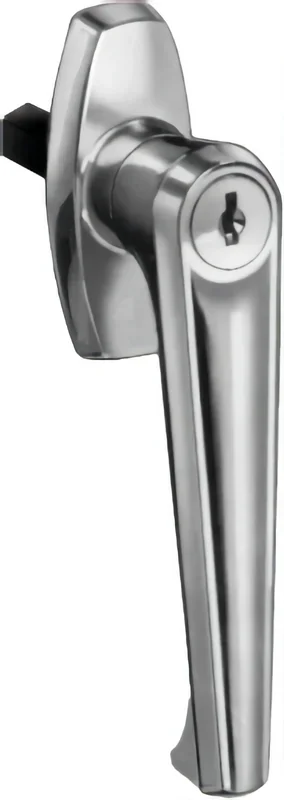

Compx C8747-KAC415A-26D L Handle 1-1/2in Post 1in Long
Compx Security Products C8747-KAC415A-26D L Handle is expertly designed for optimal security on metal lockers and cabinets. This robust handle features a 1-1/2 inch post with a 1-inch long spindle, making it versatile for various applications. For right-hand doors, install with the escutcheon vertically; for left-hand doors, a horizontal installation is required. The handle accommodates both the C8756 latch plate and the C8757 tongue, with the flexibility to cut spindles to meet specific needs. A standout feature of the C8747-KAC415A-26D is its key-removable function in both locked and unlocked positions, enhancing user convenience. This handle can be keyed alike with other disc tumbler locks using the D8785 key blank, providing a cohesive locking system throughout your facility. Each unit comes with two keys (except for the C8755 model) and all necessary mounting hardware for straightforward installation. Finished in a satin chrome (US26D) coating, this L handle not only delivers security but also presents a sleek, professional appearance. Whether you’re a building professional or a knowledgeable homeowner, the Compx C8747-KAC415A-26D L Handle is an essential addition to your security solutions, ensuring reliability and ease of use every time.
L Handle 1-1/2in Post 1in Long
Notice: The info below is not item specific.
C8747, C8749, C8751, C8754, C8755, C8758, C8759:
- Application: For doors on metal lockers and cabinets. For R.H. doors, install with escutcheon vertical. For L.H. doors, install with escutcheon horizontal. See above drawings. Choice of spindle lengths and mounting. Spindles accept both C8756 latch plate and C8757 tongue except C8747 which has 8-32 tapped end hole and C8749 which will accept only the C8757 tongue. Spindles can be cut to fit special requirements.
- Key removable in both locked and unlocked positions.
- Will key together with all other disc tumbler locks using D8785 key blank. See table for available keying.
- Supplied with two keys (except C8755) and mounting hardware.
| Part No. | Type of Mounting | Spindle Length | Direction of Turn to Open | KACodes | KD Changes | Case Qty | Reference Number | Non MK Key Blank |
| C8747-26D | Rear | 1″ | 90° c/cw | 1 | 200 | 10 | M4-0428-420 | D8785 |
| C8749-26D | Rear | 4″ † | 90° c/cw | 1 | 200 | 10 | M4-0428-293 | D8785 |
| C8751-26D | Rear | 1″ | 90° c/cw | 3 | 200 | 10 | M4-0428-620 | D8785 |
| C8754-26D | Rear | 3″ | 90° c/cw | 3 | 200 | 10 | M4-0428-684 | D8785 |
| C8755-26D†† | Through the Escutcheon | 3″ | 90° c/cw | — | — | 10 | M6-0429-684 | — |
| C8758-26D | Through the Escutcheon | 1″ | 90° c/cw | 3 | 200 | 10 | M4-0294-620 | D8785 |
| C8759-26D | Through the Escutcheon | 3″ | 90° c/cw | 3 | 200 | 10 | M4-0294-684 | D8785 |
Key Codes Used:
- 1 Code – C415A.
- 3 Codes – C413A, C415A and C420A.
- 5/16″ sq. spindle w/ 8-32 tapped end hole.
Latch Plate & Tongue For Above Handle Locks:
| Part No. | Method of attachment to Spindle | Case Qty | Reference Number | |
| C8756-2C | 3 Point Latch Plate with Tongue, Used with Locking Bars | Hex Nuts with Lock Washers Threaded on Spindle | 25 | M3-6931-001 |
| C8757-2C | Single Point Latch Tongue | Side Mounted Set Screw | 25 | H2-0082-003 |
Features
- Key removable in both locked and unlocked positions.
- Will key together with all other disc tumbler locks using D8785 key blank. See table for available keying.
- Supplied with two keys (except C8755) and mounting hardware.
- Application: For doors on metal lockers and cabinets. For R.H. doors, install with escutcheon vertical. For L.H. doors, install with escutcheon horizontal. See above drawings. Choice of spindle lengths and mounting. Spindles accept both C8756 latch plate and C8757 tongue except C8747 which has 8-32 tapped end hole and C8749 which will accept only the C8757 tongue. Spindles can be cut to fit special requirements.
Attributes
Alternate Codes: 116040, 561324, C8747KA41526D, C8747-KAC415A-26D, C8747KAC415A26D, COMC8747KA41526D
Category: Cam & Drawer, Cam & Drawer Locks Etc., Lock Sets
Finish Code: US26D
Finish Color: Satin Chrome
Lock Style: L Handle
Size: 1-1/2″
