Description
Schlage 09-449 05L 606 L-Series Escutcheon Mounting Trim Instructions
Schlage 09-449 05L 606 L-Series Escutcheon Mts Trim is an essential component for any commercial door hardware setup, specifically designed to complement the L9000 Series Extra Heavy Duty Mortise Locks. This trim pack features a sleek satin brass finish, offering both durability and aesthetic appeal. Constructed to withstand the demands of high-traffic environments such as schools, hospitals, and factories, this trim ensures reliable performance under constant use. The field-reversible design allows for easy installation and adaptability to various door handing needs, making it a versatile choice for your projects. With a robust lock face size of 1-1/4 inches and a projection of 2-7/8 inches, this escutcheon trim fits seamlessly with compatible lock models, including L/LV9070, L/LV9080, L9092, L9093, and L9465. Every component of the L-Series meets ANSI Grade 1 standards for safety, providing peace of mind in security. The trim pack is designed for doors with a thickness of 1-3/4 inches, ensuring a perfect fit. Backed by a limited three-year warranty, the Schlage 09-449 offers both quality and reliability for professionals seeking dependable door hardware solutions.

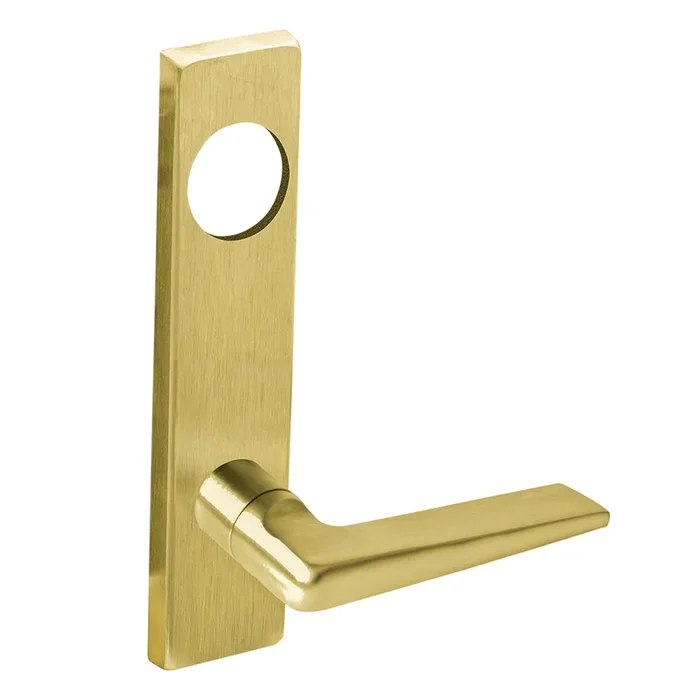

L-Series Escutcheon Mts Trim
Schlage L Series Trim Pack, L/LV9070, L/LV9080, L9092, L9093, L9465, 05 Lever, L Escutcheon, Satin Brass Finish, Field Reversible
Schlage L-Series Extra Heavy Duty Mortise Locks are built to withstand the rigors of daily use without fail. Our L9000 Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse. We pay attention to these details so you can focus on creating a functional and aesthetically pleasing environment for your clients. In fact, every one of our L-Series locks meets ANSI Grade 1 standards for safety. A multitude of functions, finishes and trim designs are available to meet virtually every security and aesthetic requirement.
Attributes
Manufacturer surcharge: 4.5%
Commercial Residential: Commercial
Country of origin: Mexico
Door Thickness: 1-3/4″
Dust Box: K510-066
Finish: 606/US4
Finish Family: Matte Brass
Function: Trim Pack, L/LV9070, L/LV9080, L9092, L9093, L9465
Handing: Field Reversible
Installation: Commercial
Leverknob Design: 05 Lever
Leverknob Design Family: Straight Lever
Limited Warranty: 3 Years
Lock Face Size: 1-1/4″
Origin: Mexico
Pack Qty: 1
Projection: 2-7/8″
Roseescutcheon Design: L Escutcheon
Roseescutcheon Dimensions: 8″ x 1-3/4″ x 7/16″
Screws: C203-736
Series: L9000 Series Trim Packs
Subtype: Trim Kits & Packs
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Resources
- Schlage L Series Parts Diagram
- Schlage L9000 Gen 2 Indicator Pricing Addendum
- Von Duprin Finishes Chart
