Description

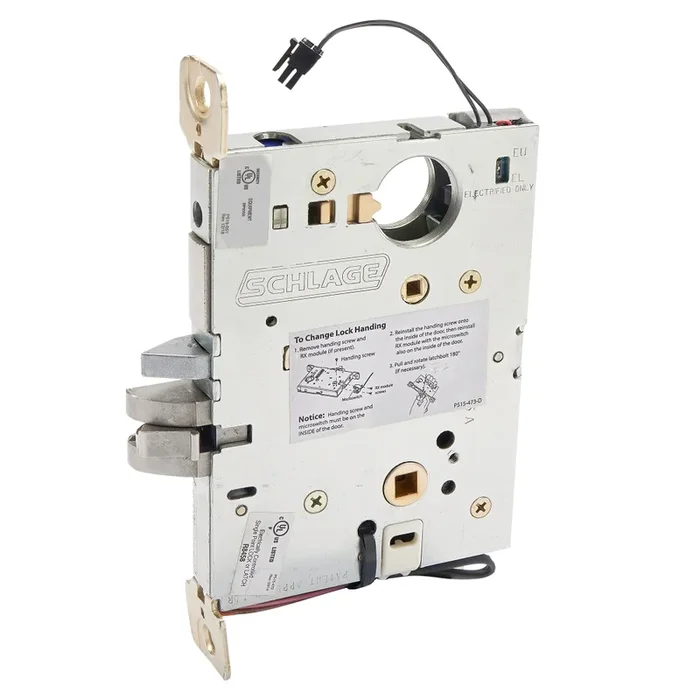

Schlage L283-471 EL L9492/94 Mortise Lock Body
Schlage L283-471 EL L9492/94 Mortise Lock Body offers a robust solution for commercial applications requiring enhanced security. This electrically locked (fail safe) lock case comes equipped with a deadbolt monitor, making it an ideal choice for facilities that prioritize safety and accessibility. Its field-reversible design allows for easy installation in various door configurations, ensuring versatility across multiple settings. Constructed to meet ANSI/BHMA A156.13-2017 Series 1000 Grade 1 standards, this lock body provides exceptional durability and reliability. With a fire rating of 3 hours (A), it enhances safety in emergency situations, allowing for peace of mind in high-traffic environments. Additionally, the UL listing (UL 10C/ULC-S104) further assures compliance with industry standards. Designed specifically for use with the L9492/94, this lock body is an integral part of a comprehensive security system. The Schlage L283-471 is not only BAA qualified but also showcases its commitment to quality manufacturing from Mexico. Each unit is sold individually, making it easy to customize your security solutions. Upgrade your building’s safety and functionality with this dependable mortise lock body.
L9492/94 Mortise Lock Body
Electrically Locked (Fail Safe) Lock Case, Deadbolt Monitor, For Use With L9492/94, Field Reversible
Attributes
Manufacturer surcharge: 4.5%
Ansi: ANSI/BHMA A156.13-2017 Series 1000 Grade 1
Baa Qualified: Yes
Commercial Residential: Commercial
Country of origin: Mexico
Electric Options: Electrically Locked (Fail Safe)
Fire Rated: Yes
Fire Rating: 3 Hours {A}
For Use With: L9492/94
Grade: Grade 1
Handing: Field Reversible
Installation: Commercial
Origin: Mexico
Pack Qty: 1
Series: Schlage Parts
Subtype: Lock Cases
Switch Type: Deadbolt Monitor
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL 10C/ULC-S104
Unit of Measure: Each
Resources
- ALX Key Systems, Cylinders and Keys Catalog
- Schlage L Series Parts Diagram
- Schlage Parts;Schlage Cylinders Cut Sheet
- Schlage S200 Series Parts Diagram
- Von Duprin Finishes Chart
