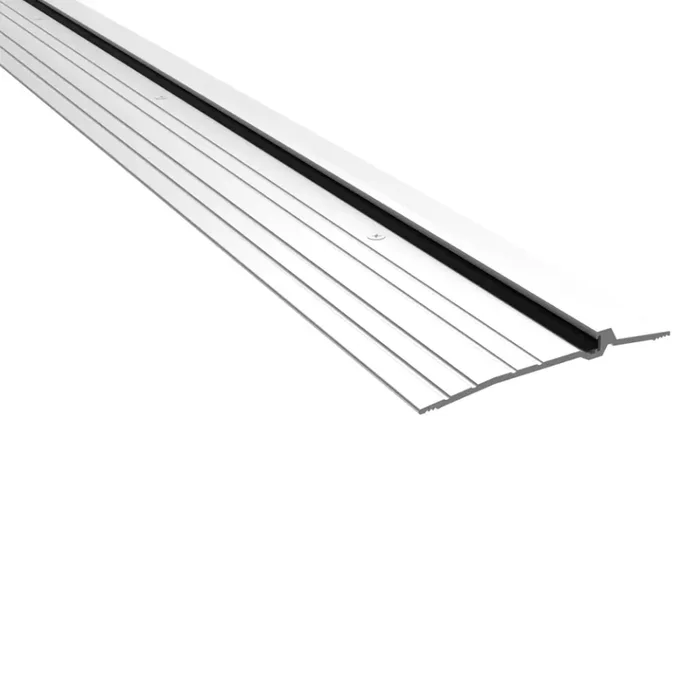

Pemko 2005AT 72IN Latching Panic Saddle Threshold 72in
Pemko Manufacturing Co 2005AT 72IN Latching Panic Saddle Threshold is an essential addition for enhancing door security and energy efficiency. With a generous width of 5 inches and allowing for a 3/8-inch door clearance, this threshold effectively protects against sound, air infiltration, wind, and debris, ensuring a more comfortable indoor environment. Designed for compatibility with surface-applied vertical rod exit devices, the 2005AT not only serves as a reliable door stop but also acts as a comprehensive seal at the bottom of the door. It features an integrated gasket with options for ThermoSeal (T), Eco-V (V), and Pile Brush (P), enhancing its performance in various conditions. This product has been sound air infiltration tested, fire rated, and is BHMA certified, making it a trustworthy choice for both residential and commercial applications. Built from durable aluminum or brass, the threshold measures 1/2 inch in height and weighs only 0.83 lbs, making installation straightforward with SMS #10 X 1″ fasteners. Available in multiple finishes-mill finish aluminum, mill finish extruded bronze, dark bronze anodized, and gold anodized-this threshold complements a variety of architectural styles. Elevate your door’s functionality and security with the Pemko 2005AT 72IN Latching Panic Saddle Threshold.
Latching Panic Saddle Threshold 72in
Notice: The info below is not item specific.
The 2005 series latching panic saddle threshold has a 5″ width and allows for a 3/8″ door clearance. It’s designed to protect against sound, air infiltration, wind, and debris and is compatible with surface-applied vertical rod exit devices, while also acting as a door stop and seal. It includes an integrated gasket offering ThermoSeal (T), Eco-V (V), and Pile Brush (P) options. This threshold is sound air infiltration tested, fire rated, and BHMA certified.
Features:
- Allow 3/8″ door clearance.
- ADA Compliant
- Sound tested; helps with acoustic performance
- Used in conjunction with surface applied vertical rod exit device, or as a stop and a seal at the bottom of door
Specifications:
- Base Material: Aluminum, Brass
- Fasteners: SMS #10 X 1″
- Maximum Length: 185″
- Minimum Length: 24″
- Height: 1/2″ (12.7 mm)
- Width: 5″ (127.0 mm)
- Weight: 0.83 lbs
Finishes:
- A – Mill finish aluminum
- B – Mill finish extruded bronze (brass)
- D – Dark bronze anodized
- G – Gold anodized
Attributes
Alternate Codes: 2005AT 72IN, 2005AT72IN, PEM2005AT 72
Category: Door Accessories, Glass Aluminum Hardware, Thresholds & Seals
