Description

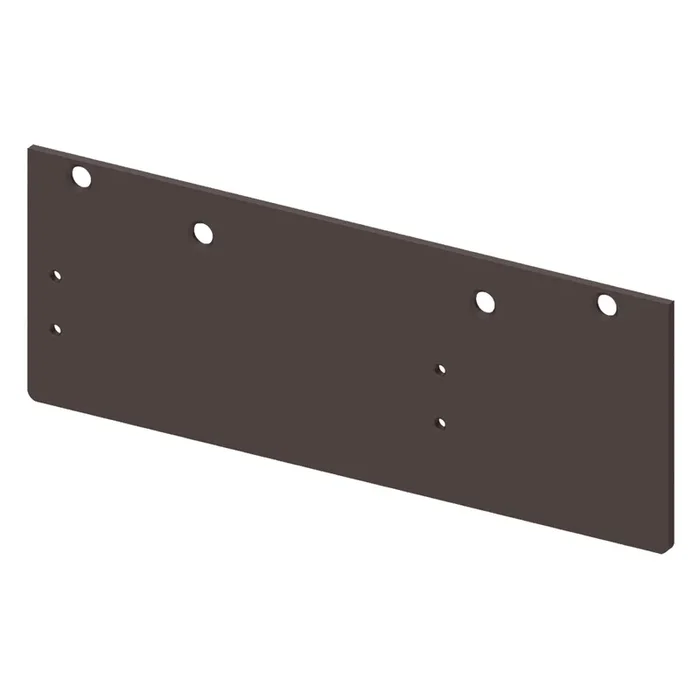

LCN 1460-18PAFC 695 DKBRZ Parallel Arm Drop Plate
LCN 1460-18PAFC 695 Drop Plate, Parallel Arm DKBRZ is a versatile and essential accessory for the LCN 1460 Series door closers. Designed specifically for use with parallel arm and full cover applications, this drop plate comes in a durable dark bronze painted finish that blends seamlessly with a variety of architectural styles.The LCN 1460 Series is engineered to meet the demands of both commercial and institutional environments, featuring a robust cast iron body for exceptional durability. It supports a fully adjustable spring size ranging from 1 to 6, accommodating interior doors up to 5 feet and exterior doors up to 4 feet, ensuring optimal performance in various settings.With multiple mounting options-hinge side, top jamb, or parallel arm-this door closer is universally applicable and reversible, allowing for easy installation on both right and left swinging doors. Additionally, the LCN 1460 Series is designed to meet ADA requirements, making it an excellent choice for accessible spaces.Installation is quick and straightforward, thanks to a stick-on template that reduces installation time significantly. The drop plate not only enhances functionality but also ensures your doors operate smoothly and efficiently, making it a valuable addition to any hardware system.
Drop Plate, Parallel Arm DKBRZ
Drop Plate for 1460 Series, For Use With Parallel Arm and Full Cover, Dark Bronze Painted Finish
The LCN 1460 Series is designed for maximum versatility, available with multiple cover options, it can be used for both commercial and institutional applications. This Grade 1 closer features a cast iron body with a full compliment bearing, 1-1/4 In. diameter piston, 3/4 In. diameter single heat treated pinion journal and all weather fluid. Spring size is adjustable from size 1 to 6.
Universal medium-duty closer designed for maximum versatility that installs quickly and accurately.
The LCN 1460 Series isavailable with multiple cover options, can be used for both commercial and institutional applications. This fully universal closer offers a wide variety of options and new fast and accurate installation.
- Standard 1460 series closer shipped with regular arm, a slim line plastic cover, and self reaming and tapping screws
- Multiple cover options include; Standard (Slim line), Full and Designer Series
- Non-sized (1-6) cylinder is adjustable for interior doors to 5’0” and exterior doors to 4’0”
- Closer mounts hinge side, top jamb and parallel arm on either right or left swinging doors
- Closer meets ADA requirements
- Standard or optional custom powder coat finish. Optional plated finish on Designer Series metal cover, arm and fasteners
- Optional SRI primer for installations in corrosive conditions
1461 Series Features
- Universal, fully reversible, non-handed door closer
- Closer cylinder constructed of high strength cast iron for increased durability
- Tested to 2,000,000 cycles
- Fully adjustable 1-6 spring strength to suit door size and site conditions
- Factory set to strength 3
- Standard closer offers 3 installation options
- Regular (pull side)
- Top jamb (push side)
- Parallel arm (push side)
- Independent adjustment valves for adjusting backcheck, closing and latching speeds
- All adjustment valves are concealed behind the cover to prevent tampering
- Joints in arms and shoe brackets adapt to uneven mounting surfaces
- Stick-on template for fast, accurate installation. Cuts installation time in half
- Closers installed according to LCN installation instructions require minimal periodic maintenance or adjustments
- Cush-N-Stop® function has a built in stop incorporated into the arm to prevent damage to the closer, door or frame in the event of an abrupt stop
Attributes
Manufacturer surcharge: 4.5%
Baa Qualified: Yes
Base Material: Varies
Commercial Residential: Commercial
Finish: 695
Finish Family: Dark Bronze
Installation: Commercial
Pack Qty: 1
Series: 1460 Series Surface Mounted Closers
Subtype: Door Closer Mounting Plates
Type: Door Closers and Operators
Unit of Measure: Each
Resources
- 1000 Series Catalog
- 1460 Series Cut Sheet
- 1460 Series Surface Mounted Closers Cut Sheet
- LCN 1000 Series Product Guide
- LCN 1000 Series Surface Mounted Closers Guide
- LCN 1460 Drop Plate Installation Guide
- LCN 1460 Product Guide
- LCN 1461 EDA Installation Guide
- LCN 1461 PA Mount Installation Guide
- LCN 1461 Peel-N-Stick Installation Guide
- LCN 1461 Product Guide
- LCN Closers & Auto Operators Installation Guide
- LCN Closers & Automatic Operators Parts Manual
- Video: LCN 1460 Door Closer Installation
- Von Duprin Finishes Chart
