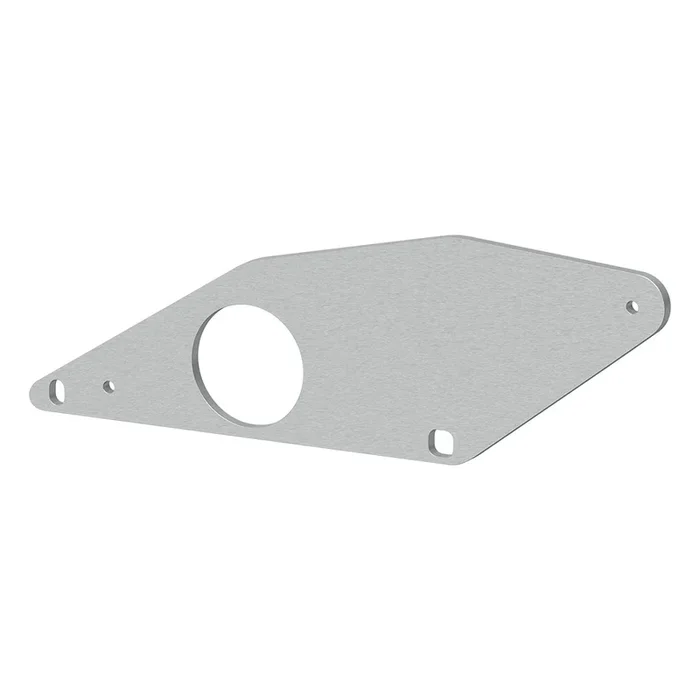

LCN 6440-10 Mounting Plate Instructions
LCN 6440-10 Mounting Plate offers an essential component for the 6400 Series COMPACT low energy automatic operators, designed to enhance accessibility and touchless entry in commercial spaces. This non-handed mounting plate facilitates a seamless installation, whether you are upgrading an existing opening or constructing a new facility. The COMPACT Series is engineered to promote a healthy environment, making it ideal for public and high-traffic areas. With a unique modular design, the mounting plate allows for straightforward configurations, accommodating various 4040XP mounting setups. The operator features a 24V input, ensuring safe door-mount applications, along with configurable power inputs for easy plug-in or external power supply options. It supports a compact user interface for electronic adjustments and provides simple calibration with visible and audible feedback.Certified to UL 10C, UL 325, and UL 228, the LCN 6440-10 meets ANSI Standard A156.19 and is compliant with ANSI Standard A117.1, ensuring reliability and safety in operation. This mounting plate is backed by a 2-year limited warranty and is proudly manufactured in the USA, making it a trusted choice for professionals looking to improve accessibility and safety in their facilities.
Mounting Plate
Mounting Plate, 6400 Series, Non-Handed
The LCN 6400 COMPACT Series low energy automatic operator can help your facility meet basic needs related to accessibility and touchless access on interior openings. Whether you are upgrading a single opening, renovating a portion of your building or constructing a new facility, the COMPACT series enables you to promote a healthy and accessible environment. The unique modular design makes the COMPACT Series simple and cost-effective. The core elements of the solutions are a motor gearbox assembly, a 4040XP mechanical closer and wireless or hardwired actuators. For existing openings, your can repurpose the 4040XP closer. For new openings, you can configure a complete solution to meet your needs.
The unique modular design makes the COMPACT Series simple and cost-effective for upgrading new or existing openings.
The LCN 6400 COMPACTSeries low energy automatic operator can help your facility meet basic needs related to accessibility and touchless access on interior openings. Whether you are upgrading a single opening, renovating a portion of your building or constructing a new facility, the COMPACT series enables you to promote a healthy and accessible environment.
The unique modular design makes the COMPACT Series simple and cost-effective. The core elements of the solutions are a motor gearbox assembly, a 4040XP mechanical closer and wireless or hardwired actuators. For existing openings, your can repurpose the 4040XP closer. For new openings, you can configure a complete solution to meet your needs.
- 24V input for safe door-mount applications
- Configurable power input to allow for simple wall plug-in or external power supply
- Compact user interface for electronic feature adjustments
- Simple calibration set-up with visible and audible feedback
- Adjustments via mechanical closer to meet closing force preferences
- Power boost to overcome interior stack pressure and allow for lower spring settings
- Compatible with 3 different 4040XP mounting configurations
- Fire input to deactivate actuation upon signal
- Dedicated input for actuation signal (hardwired or wireless receiver)
- Certified to UL 10C, UL 325 and UL 228
- Certified to ANSI Standard A156.19
- Compliant with ANSI Standard A117.1
Attributes
Manufacturer surcharge: 4.5%
Accessible: Yes
Ada Compliance: Yes
Ansi: A156.19, A117.1
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Handing: Non-Handed
Installation: Commercial
Limited Warranty: 2 Years
Origin: USA
Pack Qty: 1
Restrictions: None
Series: 6400 Series COMPACT Auto Operators
Subtype: Door Closer Parts
Type: Door Closers and Operators
Ul Listing: UL 10C, 228/325
Unit of Measure: Each
