Description

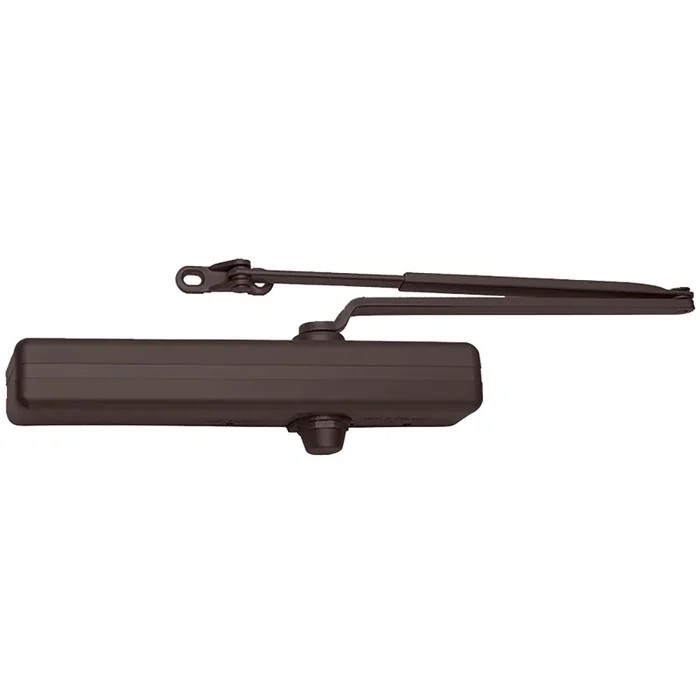

LCN 1461-REG 695 DEL DKBRZ Surface Closer
LCN 1461-REG 695 DEL Surface Closer DKBRZ combines durability and versatility, making it an ideal choice for both commercial and institutional applications. This Grade 1 regular closer features a robust cast iron body and a slim plastic cover, ensuring a sleek appearance without compromising performance. With a full complement bearing and a 1-1/4 inch diameter piston, the closer is built to withstand the rigors of daily use. Designed for maximum adaptability, the LCN 1461 can be installed on either the push or pull side of the door, and it accommodates a 180-degree swing. The adjustable spring size from 1 to 6 allows for precise control depending on door size and site conditions, while independent adjustment valves for backcheck, closing, and latching speeds provide customizable functionality.Meeting ADA requirements, this closer is non-handed and can be mounted in various styles, including regular arm and top jamb configurations. The Cush-N-Stop® function helps prevent damage to the closer, door, or frame during abrupt stops. With a limited 30-year warranty and a cold weather fluid option, the LCN 1461-REG delivers reliable performance in any environment, making it a smart investment for professionals seeking quality door hardware solutions.
Surface Closer DKBRZ
Grade 1 Regular or Top Jamb Surface Closer, Push or Pull Side, Double Lever Arm Regular, Slim Plastic Cover, 180 Deg. Swing, Delayed Action, Dark Bronze Painted Finish, Non-Handed
The LCN 1460 Series is designed for maximum versatility, available with multiple cover options, it can be used for both commercial and institutional applications. This Grade 1 closer features a cast iron body with a full compliment bearing, 1-1/4 In. diameter piston, 3/4 In. diameter single heat treated pinion journal and all weather fluid. Spring size is adjustable from size 1 to 6.
Universal medium-duty closer designed for maximum versatility that installs quickly and accurately.
The LCN 1460 Series isavailable with multiple cover options, can be used for both commercial and institutional applications. This fully universal closer offers a wide variety of options and new fast and accurate installation.
- Standard 1460 series closer shipped with regular arm, a slim line plastic cover, and self reaming and tapping screws
- Multiple cover options include; Standard (Slim line), Full and Designer Series
- Non-sized (1-6) cylinder is adjustable for interior doors to 5’0” and exterior doors to 4’0”
- Closer mounts hinge side, top jamb and parallel arm on either right or left swinging doors
- Closer meets ADA requirements
- Standard or optional custom powder coat finish. Optional plated finish on Designer Series metal cover, arm and fasteners
- Optional SRI primer for installations in corrosive conditions
1461 Series Features
- Universal, fully reversible, non-handed door closer
- Closer cylinder constructed of high strength cast iron for increased durability
- Tested to 2,000,000 cycles
- Fully adjustable 1-6 spring strength to suit door size and site conditions
- Factory set to strength 3
- Standard closer offers 3 installation options
- Regular (pull side)
- Top jamb (push side)
- Parallel arm (push side)
- Independent adjustment valves for adjusting backcheck, closing and latching speeds
- All adjustment valves are concealed behind the cover to prevent tampering
- Joints in arms and shoe brackets adapt to uneven mounting surfaces
- Stick-on template for fast, accurate installation. Cuts installation time in half
- Closers installed according to LCN installation instructions require minimal periodic maintenance or adjustments
- Cush-N-Stop® function has a built in stop incorporated into the arm to prevent damage to the closer, door or frame in the event of an abrupt stop
Attributes
Manufacturer surcharge: 4.5%
Baa Qualified: Yes
Base Material: Varies
Cold Weather Fluid: Yes
Commercial Residential: Commercial
Cover: Slim Plastic
Degree Swing: 180 Deg.
Finish: 695
Finish Family: Dark Bronze
Grade: Grade 1
Handing: Non-Handed
Installation: Commercial
Limited Warranty: 30 Years
Mounting Group: Hydraulic
Mounting Location: Push or Pull Side
Mounting Style: Regular or Top Jamb
Pack Qty: 1
Pbs Options: 220307137
Series: 1460 Series Surface Mounted Closers
Ship Weight: 9 lbs.
Subtype: Surface Closers
Type: Surface
Unit of Measure: Each
Resources
- 1000 Series Catalog
- 1460 Series Cut Sheet
- 1460 Series Surface Mounted Closers Cut Sheet
- LCN 1000 Series Product Guide
- LCN 1000 Series Surface Mounted Closers Guide
- LCN 1460 Drop Plate Installation Guide
- LCN 1460 Product Guide
- LCN 1461 EDA Installation Guide
- LCN 1461 PA Mount Installation Guide
- LCN 1461 Peel-N-Stick Installation Guide
- LCN 1461 Product Guide
- LCN Closers & Auto Operators Installation Guide
- LCN Closers & Automatic Operators Parts Manual
- Video: LCN 1460 Door Closer Installation
- Von Duprin Finishes Chart
