Description

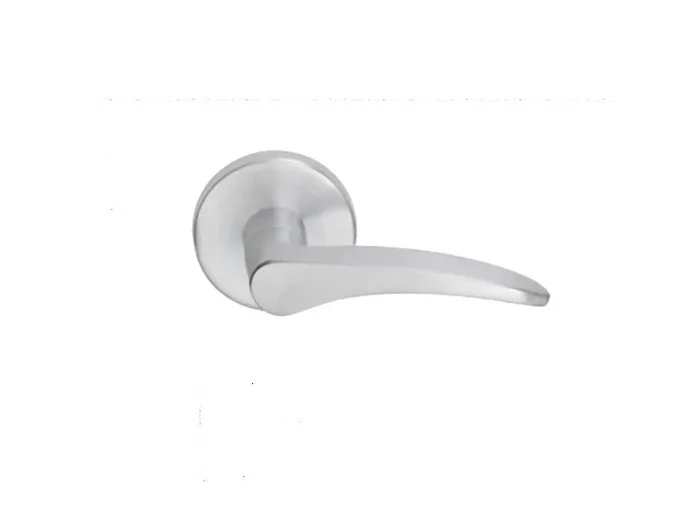

Schlage L9473J12A626LH Left Hand Dormitory Mortise Lock, Large Format IC Core, Satin Chrome
Schlage Commercial L9473J12A626LH Left Hand Dormitory / Bedroom Mortise Lock offers a robust solution for secure access in residential and commercial settings. Designed for durability and ease of use, this mortise lock features a large format IC less core, making it an ideal choice for dormitories and bedrooms where both security and convenience are paramount. With a 2-3/4″ backset, this lock is engineered to fit standard door preparations seamlessly. The lock’s dimensions include a 2-1/8″ rose, a 4-5/8″ lever, and a projection of 3-1/16″, providing a streamlined aesthetic without compromising functionality. Finished in a sleek satin chrome, it not only enhances the look of any door but also offers resistance to wear and tarnishing. The left-hand design ensures proper installation on corresponding door orientations, while the ANSI strike enhances compatibility with standard door frames. Part of the reliable L Series, this lock is built to withstand the test of time, making it a trusted choice for building professionals and discerning homeowners alike. Elevate your security solution with the Schlage Commercial L9473J12A626LH, where quality meets practicality.
Left Hand Dormitory / Bedroom Mortise Lock with Large Format IC Less Core with 12 Lever and A Rose Satin Chrome Finish
- Dormitory / Bedroom, Latchbolt Retracted by Knob/Lever From Either Side, Deadbolt Thrown or Retracted by Key Outside or Thumbturn Inside
- ANSI/BHMI Certified A156.13-2012
- Commercial Grade 1
- Lock Body Mortises Inside the Edge of the Door
- UL Listed for 3 Hour Fide Door
Attributes
Ansi Function: F21 – Entry Office
Baa Qualified: Yes
Backset: 2-3/4″ Backset
Bolt Protection: 3/4″ Latch, 1″ Deadbolt
Category: Mechanical Commercial Locksets
Country of Origin: Mexico
Cylinder Type: Schlage FSIC Less Core
Design: NULL
Dimension: 2-1/8″ Rose with 4-5/8″ Lever and 3-1/16″ Projection
Door Range: 1-3/4″
Door Thickness: 1-3/4″
Dust Box: Plastic
Finish: Satin Chrome
Finish Code: 626
Finish : Satin Chrome
Fire Rated: 3 Hours {A}
Function: 9473-Dormitory Bedroom Lock
Grade: Grade 1
Hand: LH
Handing: Left Hand
Hazardous Material: NO
Latch Faceplate Dimension: 1-1/4″ x 8″
Lever Knob Design: 12 – Lever
Limited Warranty: 3 Years
Lock Face Size: 8″ x 1-1/4″
Manufacturer Warranty: Limited 10 Year Mechanical and 3 Year Electro Mechanical Warranty
Material: Zinc Base
No Of Inners: 1
Order_ Qty: 1
Rose Escutcheon Design: A – Rose
Screws: Combination
Series: L Series
Strike: ANSI Strike
Strike Dimension: 4-7/8″ with 1-1/4″ Lip
Strike Height: 4-7/8″
Strike Number: 10-072
Strike Type: ASA
Strike Width: 1-1/4″
Subcategory: Mortise Locksets
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing Type: UL Listed for 3 Hour Fire Door
Resources
- 2019 Schlage Multi-Family Price Book
- 2019 Schlage Price Book
- 2022 Schlage Commercial Price Book
- L Series Mounting Plate Installation Instructions
- L Series Product Catalog
- L-Series Mounting Plate
- L400 Installation Instructions
- L400 Installation Instructions
- L9000 Indicator Handing Instructions
- L9000 Indicator Handing Instructions
- L9000 Indicator Lever w/ Escutcheon Installation Instructions
- L9000 Indicator Lever w/ Sectional Installation Instructions
- L9000 Indicator Lever with Escutcheon
- L9000 Indicator Lever with Sectional
- L9000 Installation Instructions
- L9000 Installation Instructions
- L9000 Knob Installation Instructions
- L9000 Knob Installation Instructions
- Schlage Finishes Chart
- Schlage L Indicator Data Sheet
- Schlage L Series Catalog
- Schlage L Series Service Manual
