Description

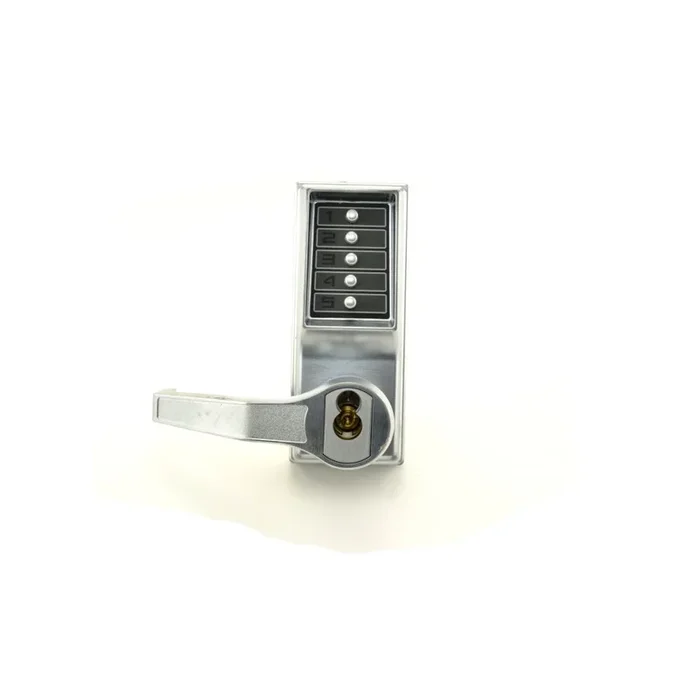

Dormakaba L8146S26D Left-Hand Pushbutton Mortise Lock, Schlage Prep, Satin Chrome Finish
Simplex Dormakaba L8146S26D Left Hand Mechanical Pushbutton Lever Mortise Lock with Schlage Prep Satin Chrome Finish offers a seamless solution for managing access between public and private spaces. Designed for ease of use, this mechanical pushbutton lock eliminates the hassles associated with keys and access cards, ensuring that you never have to deal with lost or misplaced items again.With a single access code, it simplifies management for all users, making it easy to change combinations in seconds without removing the lock from the door. The lock features fixed ADA-compliant levers, ensuring accessibility for all. Its weather-resistant design makes it suitable for various environments, enhancing durability and reliability. The lock fits doors ranging from 1-3/8″ to 2-1/4″ thick and boasts a 2-1/8″ crossbore size. Measuring 3-1/8″ x 7-3/8″ with a 3-13/16″ projection, the Simplex L8146 is compact yet robust, featuring a deadbolt/latch mortise strike plate. It’s constructed from cast zinc and finished in satin chrome (26D), providing both style and strength. Backed by a 3-year limited warranty, this product is UL listed with a 3-hour fire rating for “A” labeled doors, ensuring safety and compliance.
Left Hand Mechanical Pushbutton Lever Mortise Lock with Schlage Prep Satin Chrome Finish
Simplex mechanical pushbutton locks offer a convenient way to control access between public and private areas. There are no keys or cards to manage, no computers to program, no batteries to replace, and combinations can be changed in seconds without removing the lock from the door.
- Mechanical Pushbutton Lock Eliminates Problems and Costs Associated with Issuing, Controlling, and Collecting Keys and Cards.
- Americans with Disabilities Act (ADA); Fixed ADA-Compliant Levers
- Single Access Code—One Easy-to-Manage Code for All Users
- Weather Resistant
- Lock is Easily Programmed Via Keypad Without Removing Lock From the Door
Attributes
Category: Mechanical Commercial Locksets
Crossbore Size: 2-1/8″ Bore
Design: Simplex Lever
Dimension: 3-1/8″ x 7-3/8″; 3-13/16″ Projection
Door Range: 1-3/8″ to 2-1/4″
Door Thickness: 1-3/8″ to 2-1/4″
Finish: Satin Chrome
Finish Code: 26D
Function: Combination Entry
Handing: Left Hand
Hazardous Material: NO
Lever Knob Design: Return Lever
Manufacturer Warranty: 3 Year Limited Warranty
Material: Cast Zinc
No Of Inners: 1
Order_ Qty: 1
Series: 8000 Series
Strike: Deadbolt/Latch Mortise Strike Plate
Strike Dimension: 1-1/4″ x 4-7/8″
Subcategory: Mechanical Pushbutton Locksets
Subtype: Mechanical Pushbutton Locksets
Type: Mechanical Commercial Locksets
Ul Listing Type: 3-Hour UL/ULC Fire Rating for “A” Labeled Doors
Upc: 036448806485
