Description

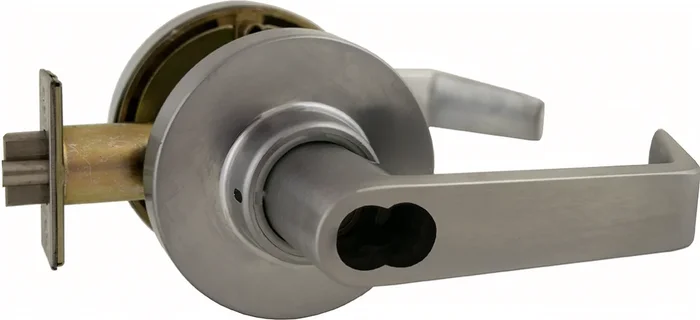

Marks Hardware 195RDW/26D-F21 Medeco LFIC 6 Pin Clutched Lever Lockset, Less Core, Grade 1, Satin Chrome
Marks Hardware 195RDW/26D-F21 LFIC Medeco 6 Pin – Institution Clutched Lever Lockset offers exceptional durability and security for institutional applications. This lockset features a Medeco Large Format interchangeable core design, allowing for easy key management and enhanced security. With a robust 2-3/4″ backset and a Grade 1 certification, it exceeds BHMA specifications by 300%, providing over 3.6 million cycles of use. The innovative clutch mechanism in the Survivor leverset significantly reduces wear and tear, preventing lever droop and extending the lock’s lifespan. The stainless steel clutch and bronze bearings work together to allow the levers to swing freely when locked, minimizing strain on internal components. This ensures a reliable locking mechanism that requires less maintenance. Constructed with a solid cast zamac lever and a 3-hour fire rating, this lockset is designed to withstand the rigors of commercial use while providing peace of mind. It accommodates door thicknesses of 1-5/8″ to 1-7/8″ and includes a compatible latch and strike for seamless installation. Available in a sleek Satin Chrome finish, the Marks Hardware 195RDW/26D-F21 is not only functional but also aesthetically pleasing, making it an ideal choice for any institutional setting.
LFIC Medeco 6 Pin – Institution Clutched Lever Lockset, Medeco Large Format IC, Less Core, 2-3/4in Backset, ANSI Strike, Grade 1, 626/US26D Satin Chrome
Notice: The info below is not item specific.
Cylindrical locksets are designed for use in situations where durability is the deciding factor. Our cylindrical lock chassis are all constructed with cast retractors on bronze roller bearings. This strong, durable component gives our cylindrical sets the ability to last millions of cycles and is available in knob and lever sets. The Survivor leverset has a unique “clutch” mechanism that radically reduces the wear and abuse that typical cylindrical lever sets endure. When locked, the levers of the Survivor disengage from the retractor and other interior mechanisms of the lock. The levers of the Survivor swing freely, without resistance. This reduces the amount of wear on lock components and eliminates “lever droop”. The use of a clutch results in longer lasting, lower maintenance, eloquent solution.
Features:
- High quality, longer lasting, lower maintenance design
- Competitively-priced for exceptional value
- Exceeds BHMA grade 1 spec by 300%, over 3.6 million cycles
- Unique stainless steel “clutch” and bronze bearings dramatically reduce wear and abuse & eliminates lever droop
- Marks Lifetime Mechanical Warranty
- 3-Hour Fire Rated; 2-3/8″ and 2-3/4 Backsets
Specifications:
- Backset: 2-3/4″
- Latch #1834, Front: 1-1/8″ x 2-1/4″; Throw: 9/16″; stainless steel nose
- Levers: Solid cast zamac; w/ 1/2″ return (except 395 & 495)
- Roses: Thru-bolted, 3-7/16″ dia, spring loaded 2-#10 thru-bolts
- Strike: #1135, 4-7/8″ ASA curved lip strike
- Door Thickness: 1-5/8″ to 1-7/8″; For 1-3/8″ door use K1904 spacer
- Cylinder: Marks “C” keyway, 6 pin w/ 2 keys
Functions:
- N: Passage
- L: Privacy
- P: Patio
- DC: Communicating
- AB: Entry
- AQ: Exit
- S: Classroom
- F: Storeroom
- DW: Institution
- DA: Vestibule
- T: Corridor
- TO: Time out
- TK: Hospital/privacy
- GB: Store door
- BS: Service station lock
- H : Hotel
- DB: Classroom intruder
- DO: Dummy trim outside
- DT: Full dummy trim
- NB: Communicating passage
- FB: Communicating storeroom
- SB: Communicating classroom
- FEL: Electrically locked
- FEU: Electrically unlocked
Finishes:
- 3 – Bright brass
- 32D – Stainless steel
- 10B – Dark bronze
- 26D – Satin chrome
Attributes
Alternate Codes: 142025, 195RDW/26D-F21, 195RDW26DF21
Backset: 2-3/4″
Category: Commercial Locks, Cylindrical Levers, Lock Sets
Certifications: A156.2, ANSI, UL Listed 3 Hour
Cylinder Type: Interchangeable , Less Core
Door Application: Lock Sets
Door Thickness: 1-5/8″-1-7/8″
Finish Code: 626
Finish Color: Satin Chrome
Fire Rated: Yes
Fire Rating: 120 min
Function: Institution
Grade: Grade 1
Latch Throw: 9/16″
Latchbolt Type: Deadlatch
Lever Design: American
Lever/ Knob Cylinder Prep: Medeco IC core large format
Manufacturer: Marks USA
Rose/ Escutcheon: 3-7/16″ Diameter, Spring Loaded
Series: 95 Line
